Bently 330104-00-05-10-02-00 Proximity Transducer System

Overview

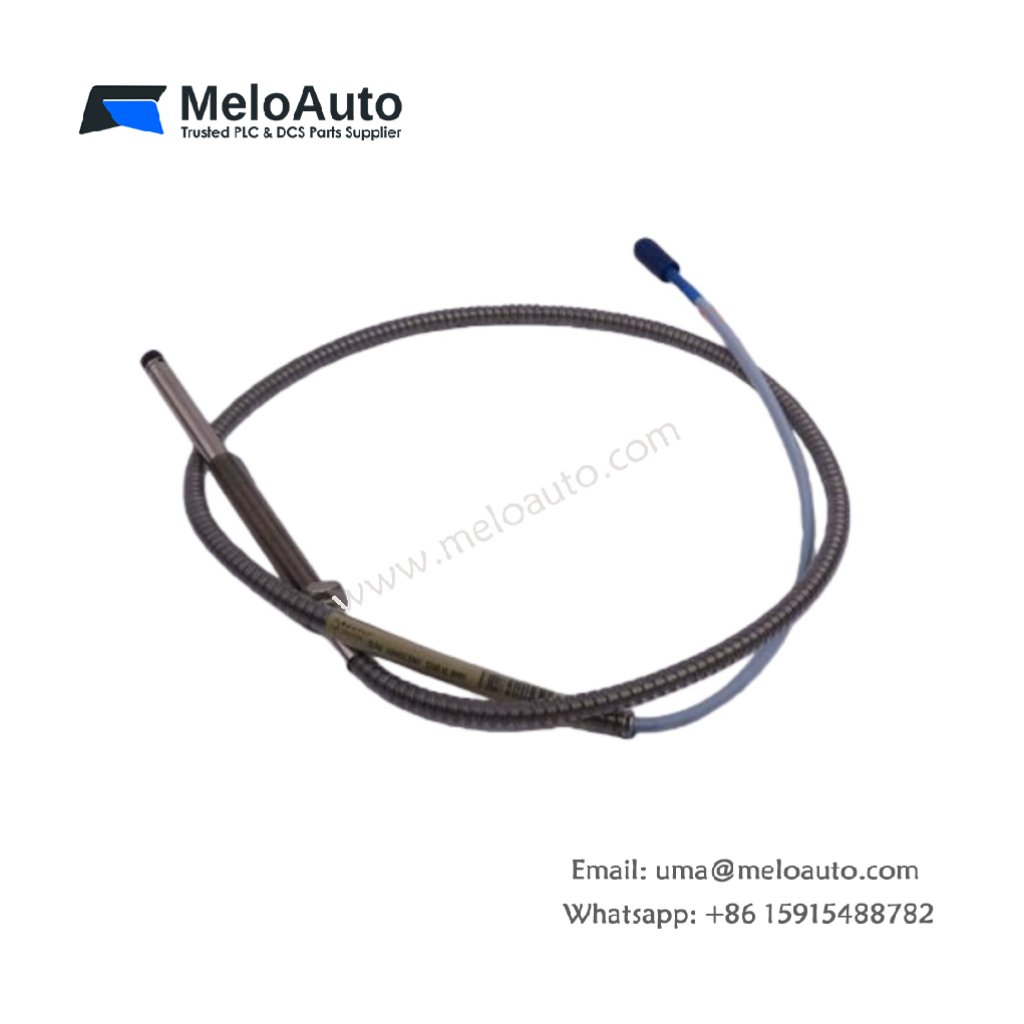

The Bently Nevada 330104-00-05-10-02-00 3300XL 8mm Proximity Transducer System provides accurate vibration and position measurements for fluid film bearing machines. This system includes a 3300 XL 8 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor Sensor, offering real-time insights for machinery monitoring.

Key Features

Dual Channel Monitoring: The system allows for the simultaneous monitoring of two channels, providing a complete analysis of machinery condition.
Precise Velocity Measurement: It accurately measures vibration velocity, a crucial indicator for diagnosing the health of rotating machinery.
Continuous Operation: With 24/7 monitoring, the system provides constant updates on machine performance and alerts users to potential issues before they cause failure.
High Precision: It ensures reliable, high-accuracy measurements, supporting the safe and effective operation of critical equipment.
Versatility: The system is highly adaptable, suitable for a wide range of industrial applications and machinery types.

Technical Specifications

Specification	Value
Model Number	330104-00-05-10-02-00
Manufacturer	Bently Nevada
System Type	Proximity Transducer System
Probe Type	3300 XL 8 mm Probe
Extension Cable	3300 XL Extension Cable
Proximitor Sensor	3300 XL Proximitor Sensor
Measurement Range	Static and Dynamic Measurements
Unthreaded Length Option	0 mm (increments of 10 mm, max 230 mm)
Overall Case Length Option	50 mm (increments of 10 mm, max 250 mm)
Total Length Option	0.5 m (1.6 feet)
Connector Type	Miniature coaxial ClickLoc connector
Agency Approvals	CSA, ATEX, IECEx Approvals
Operating Temperature Range	0°C to 70°C (32°F to 158°F)
Maximum Frequency	120 kHz
Weight	Approx. 0.5 kg

Performance

The 3300XL 8mm Proximity Transducer System provides precise and reliable measurements, especially designed for fluid film bearing machines. It meets the API 670 Standard (4th Edition) for performance and temperature stability, ensuring optimal operation in demanding industrial environments. With a wide frequency range and high precision, it delivers accurate results that help maintain machinery health and prevent downtime.

Interchangeability

Components of the 3300XL 8mm system are fully compatible with earlier 3300 series systems. This backward compatibility allows easy integration into existing setups without replacing the entire system. The system also supports the 3300 5mm probe, making it ideal for applications with space limitations.

Applications

Rotating Machinery: Ideal for turbines, compressors, pumps, and fans that require continuous vibration monitoring.
Fluid Film Bearings: Primarily used for measuring vibration and position on fluid film bearing machines.
Industrial Environments: Perfect for power generation, petrochemical, and manufacturing industries.
Speed and Keyphasor Reference: Suitable for monitoring speed and keyphasor references in rotating equipment.

Benefits

Early Fault Detection: Continuous monitoring detects potential issues early, preventing costly repairs and unexpected downtime.
Improved Reliability: By regularly monitoring machinery, the system helps ensure consistent performance and reduces the likelihood of failures.
Cost-Effective: With backward compatibility, this system can be easily upgraded without a complete system overhaul, saving on costs.
Enhanced Safety: Proactive monitoring improves safety by preventing catastrophic equipment failures and extending machine lifespans.
