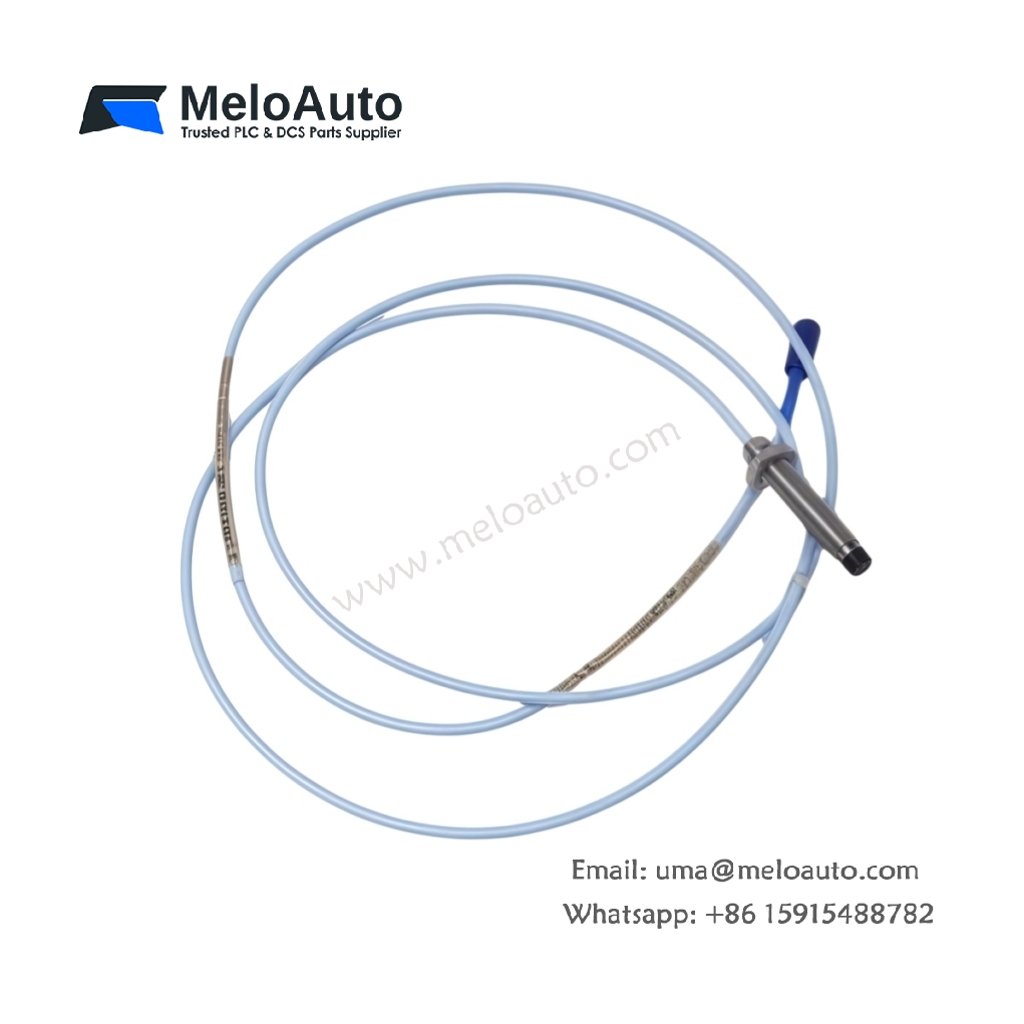

The 330103-00-05-90-02-00 proximity probe delivers precise non-contact vibration measurement for critical rotating machinery. Bently Nevada engineered this 8 mm eddy current sensor with a 9.0-meter integrated cable for direct Proximitor connection. Engineers rely on its PPS tip and stainless steel body for dependable shaft monitoring in turbines, compressors, and pumps.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330103-00-05-90-02-00 |
| Series | 3300 XL |
| Category | 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Thread Type | M10 × 1 |
| Unthreaded Length | 0 mm (fully threaded) |
| Case Length | 50 mm |
| Total Cable Length | 9.0 meters (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303/304 stainless steel |
| Weight | 0.65 kg |
| Operating Temperature | -51°C to +177°C |
| Agency Approval | Not required (00) |
| Certifications | API 670 compliant |
Key Features and Benefits
This probe employs eddy current technology to measure shaft vibration without physical contact . The 9.0-meter integrated cable connects directly to a 9-meter Proximitor sensor without intermediate extension cables . Consequently, engineers reduce potential failure points and ensure stable signal transmission across the monitoring loop.
The 330103-00-05-90-02-00 features the patented TipLoc molding method for secure tip-to-body bonding. Its PPS tip and Viton O-ring seal resist chemical attack and thermal stress in harsh industrial environments. Additionally, the ClickLoc gold-plated connector requires only finger-tight torque during installation .
Applications and Compatibility
This probe excels in radial vibration and axial position monitoring applications . It connects directly to 3300 XL Proximitor sensors for simplified wiring architecture. Furthermore, the sensor supports API 670 compliant machinery protection across power generation and petrochemical industries.
