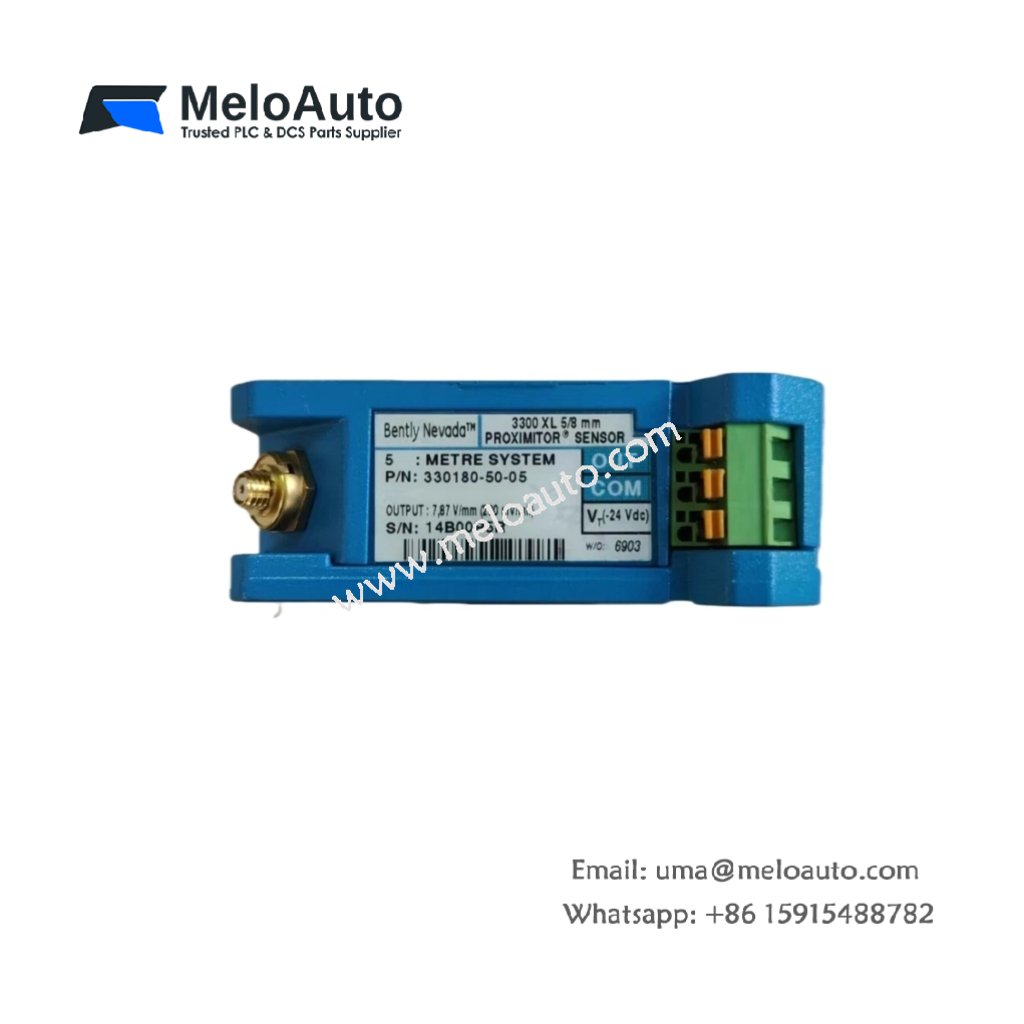

Bently Nevada 3300 XL Proximitor Sensor 330180-50-05

The Bently Nevada 3300 XL Proximitor Sensor (330180-50-05) is designed for precise vibration and proximity measurement in industrial applications. Manufactured by Bently Nevada, this advanced sensor offers excellent durability and compatibility with various proximity probes, ensuring reliable performance in harsh environments.

Key Features:

Versatile Compatibility: The 3300 XL Proximitor Sensor accepts non-contacting 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probes and extension cables. This flexibility allows for precise measurements in a wide range of machinery.
Agency Approvals: The sensor complies with CSA, ATEX, and IECEx standards, making it suitable for use in hazardous environments.
Power Requirements: The sensor operates with power inputs ranging from -17.5 Vdc to -26 Vdc (without barriers), with a maximum current consumption of 12 mA. It can also function with -23 Vdc to -26 Vdc when used with barriers.
Supply Sensitivity: The 3300 XL Proximitor Sensor offers a highly sensitive output, with less than 2 mV change in output voltage per volt change in input voltage.

Technical Specifications:

Parameter	Specification
Product Model	330180-50-05
Product Type	3300 XL Proximitor Sensor
Country of Origin	Made in U.S.A. (Certificate of Origin available)
System Length	5 meters (16.4 feet) or 9 meters (including extension cables), or 1 meter (probe only)
Mounting Option	Panel Mount
Proximitor Sensor Input	Accepts 3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm proximity probes and extension cables
Power Requirements	-17.5 Vdc to -26 Vdc without barriers, -23 Vdc to -26 Vdc with barriers
Power Consumption	Maximum 12 mA
Supply Sensitivity	Less than 2 mV change in output voltage per volt change in input voltage
Material of Proximitor Sensor	A308 Aluminum
Connector Material	Gold-plated Brass or Gold-plated Beryllium Copper
Dimensions (HxWxD)	6.35 cm x 6.1 cm x 8.13 cm (approx.)
Weight	0.323 kg
Shipping Weight	2 kg
