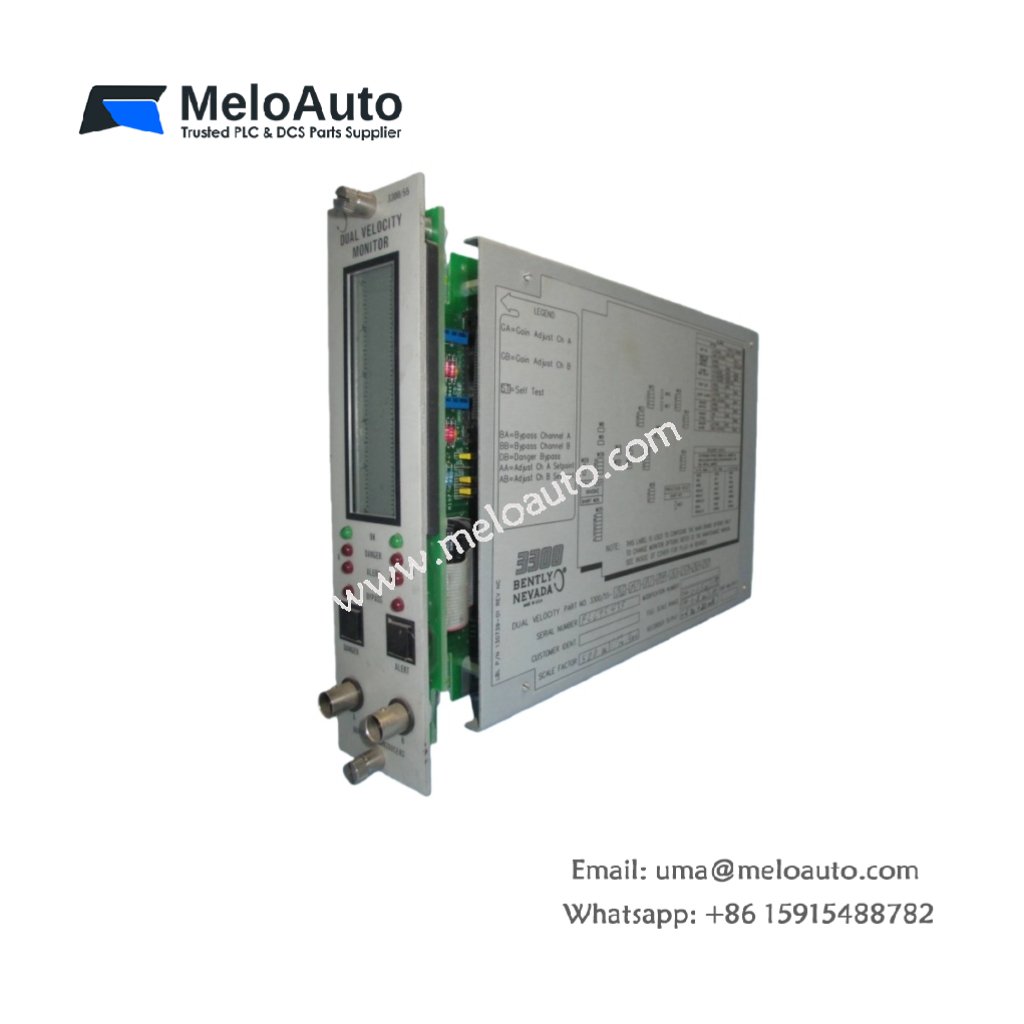

Bently 3300/55-01-04-02-02-00-00-05-00 Velocity Vibration Monitor

Overview

The Bently Nevada 3300/55-01-04-02-02-00-00-05-00 is a cutting-edge, high-precision Dual Velocity Vibration Monitor, designed to continuously measure and monitor two independent channels of velocity vibration. Commonly used in rotating machinery, this monitor helps detect potential failures early, ensuring the equipment performs optimally in demanding industrial environments.

With its reliable performance, the 3300/55 Dual Velocity Monitor plays a crucial role in monitoring machinery health, reducing downtime, and increasing overall operational efficiency.

Key Features and Benefits

Dual Channel Velocity Measurement: The 3300/55-01-04-02-02-00-00-05-00 simultaneously measures vibration in two orthogonal directions (X and Y). This provides a comprehensive view of the machinery’s condition.
High-Precision Vibration Monitoring: This monitor delivers highly accurate velocity measurements, ensuring dependable condition monitoring for critical equipment.
Flexible Configuration: It offers various configuration options that adapt to different industrial applications, meeting specific measurement requirements.
Rugged and Reliable: Built to withstand harsh industrial environments, the 3300/55 ensures long-lasting performance, even in the most demanding conditions.
Easy Integration: The monitor provides multiple output options, including analog, digital, and relay, making it easy to integrate into existing monitoring systems.

Technical Specifications

Parameter	Details
Model	Bently Nevada 3300/55-01-04-02-02-00-00-05-00
Measurement Range	0.1 to 100 mm/s (depending on configuration)
Frequency Range	1 to 600 Hz (standard), optional up to 10 kHz
Accuracy	±1% of full scale
Outputs	Analog, digital, and relay outputs
Inputs	Accepts signals from Velomitor® transducers or accelerometers
Configuration Options	High- and low-pass filter corner frequency settings
Operating Temperature	-40°C to +85°C
Power Supply	24V DC
Weight	1.5 kg
Dimensions (L x W x H)	25 cm x 15 cm x 6 cm

Applications

The 3300/55 Dual Velocity Vibration Monitor is ideal for a wide range of industrial applications, including:

Turbines: Monitors vibration levels to detect early signs of damage or misalignment in turbine systems.
Compressors: Tracks velocity vibrations to ensure optimal performance and detect wear or damage in compressor components.
Motors: Continuous monitoring of motor vibrations helps prevent potential failures due to imbalance or misalignment.
Pumps and Fans: Ensures that pumps and fans operate smoothly, preventing unnecessary downtime and improving efficiency.

Benefits

Early Failure Detection: By continuously monitoring vibration, the 3300/55 helps detect early signs of mechanical issues, allowing for timely intervention.
Improved Machine Reliability: It provides essential insights into the health of rotating equipment, reducing unexpected breakdowns and extending the lifespan of machinery.
Minimized Downtime: With early fault detection, maintenance schedules can be planned effectively, minimizing unplanned downtime and repair costs.
Enhanced Operational Efficiency: Accurate and continuous monitoring leads to better resource allocation and optimized maintenance practices.

Description

The Bently Nevada 3300/55-01-04-02-02-00-00-05-00 Dual Velocity Monitor offers continuous on-line vibration monitoring with two independent channels. It accepts inputs from Velomitor® transducers, High-Temperature Velomitor Systems (HTVS), or Velocity Seismoprobe® transducers without the need for additional interface modules. This flexibility makes the 3300/55 highly adaptable to various industrial needs.

The monitor’s design includes multiple user-selectable options, such as high- and low-pass filter settings, which can be easily programmed or reprogrammed in the field using plug-in jumpers. This ensures that the monitor is customizable for each application, providing reliable data for real-time monitoring.
