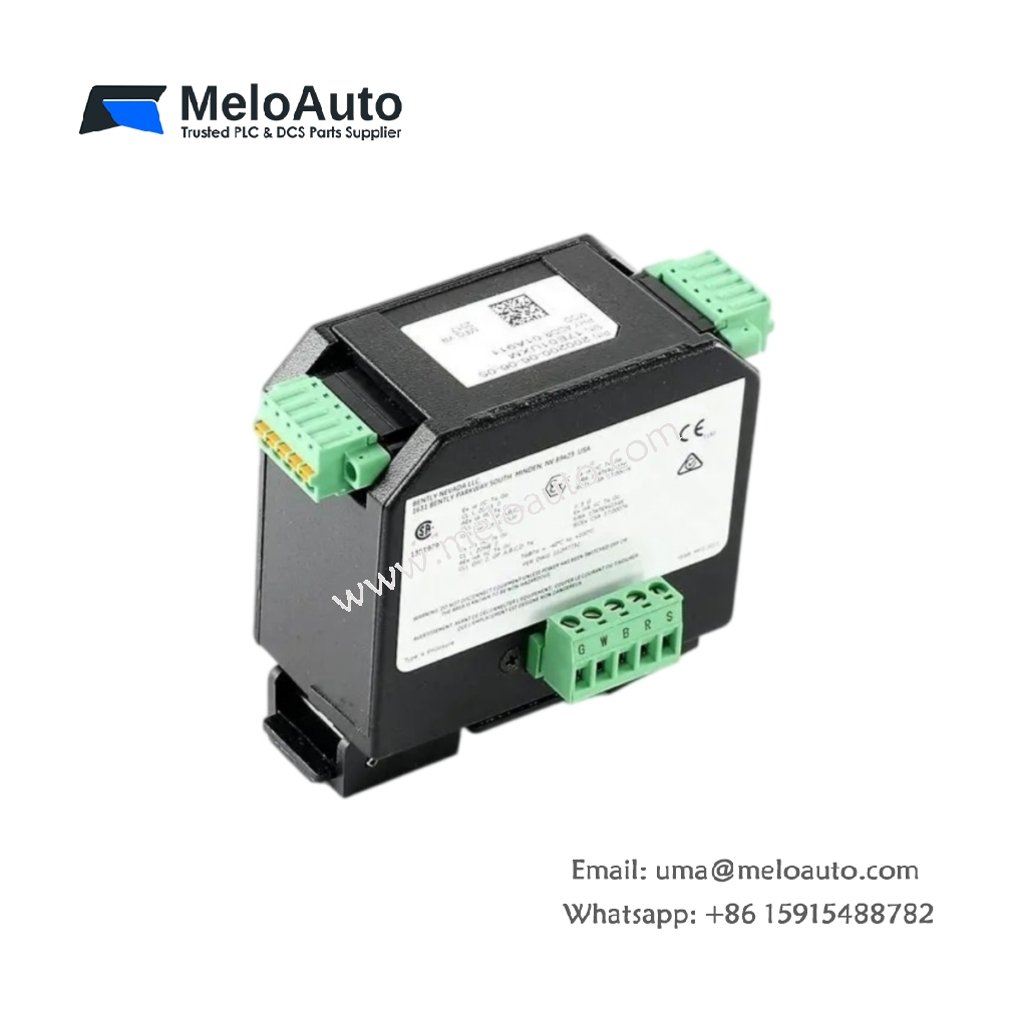

The 200200-06-06-05 input module from Bently Nevada captures transducer signals inside machinery protection systems. Plant engineers install this module whenever proximity probes and accelerometers need a clean interface to the monitor rack. Consequently, it delivers conditioned field data for vibration, position, and speed evaluation.
Key Technical Specifications
The table below outlines the main physical and electrical parameters of the 200200-06-06-05 module.
| Parameter | Specification |
|---|---|
| Product Type | Input Module |
| Compatibility | Bently Nevada machinery protection systems |
| Dimensions | Approximately 254 mm x 127 mm x 51 mm |
| Weight | Approximately 1.0 kg (2.2 lbs) |
| Mounting | Rack frame or panel mounting base |
| Interface | Backplane bus and transducer input terminals |
| Connectors | Multi-pin connector and coaxial input ports |
| Component Count | Multiple signal conditioners, filters, and driver circuits |
| Energy Storage | On-board capacitors for signal and voltage stabilization |
| Input Channels | Multiple transducer input channels |
| Signal Type | Proximity probe and accelerometer input support |
| Operating Temperature | 0 degrees C to 60 degrees C |
| Storage Temperature | -40 degrees C to 85 degrees C |
| Humidity | 5% to 95% non-condensing |
Functional Overview
This module receives transducer signals and conditions them for downstream monitor processing. Therefore, it supplies clean data for vibration, position, and speed measurement. The also filters electrical noise that would otherwise distort readings. Meanwhile, its onboard energy storage stabilizes signals during transient voltage fluctuations.
Installation and Handling Notes
Always verify transducer gap voltages before connecting sensors to the 200200-06-06-05. In addition, use low-noise coaxial cable to protect signal integrity. Tighten all connectors fully to prevent intermittent data loss. Finally, confirm channel readings during commissioning.
