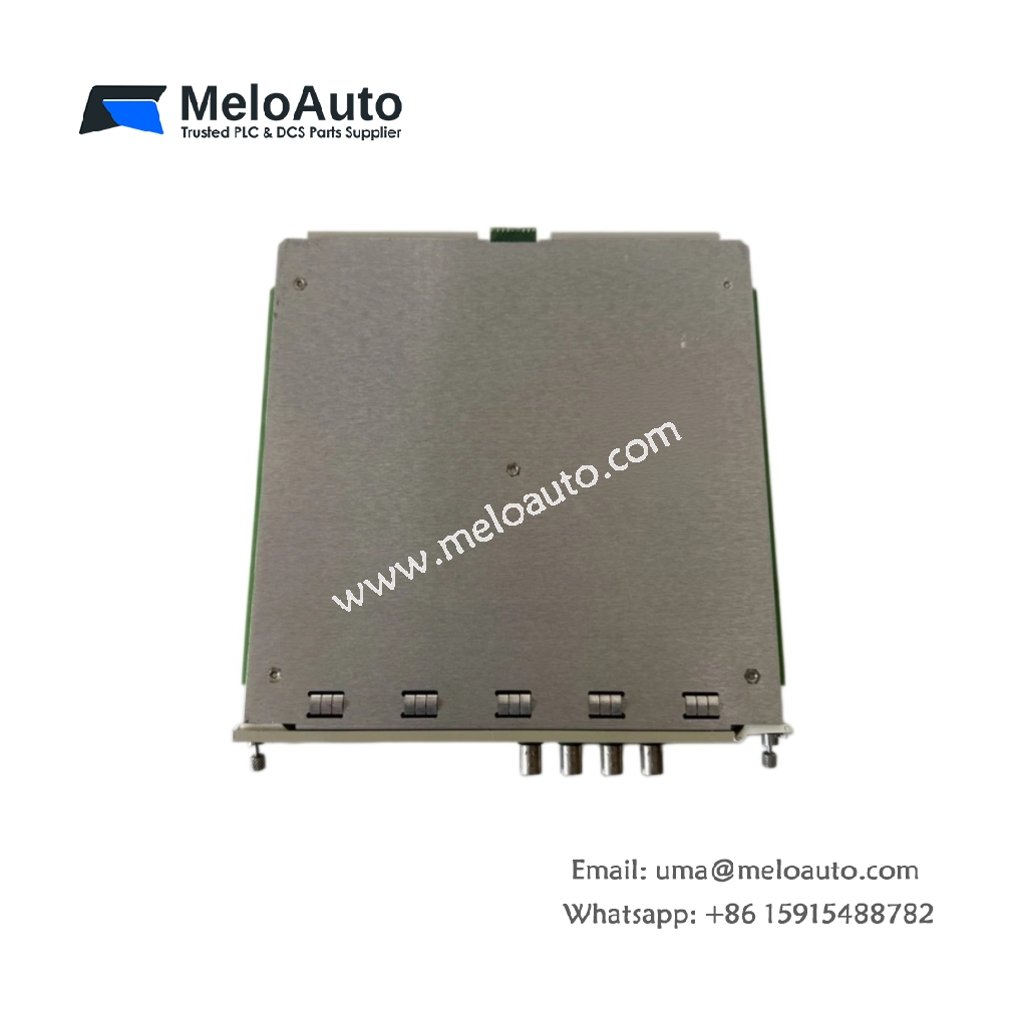

Bently Nevada 140734-04 Position Monitor Module

Module Overview

The Bently Nevada 140734-04 position monitor module provides continuous linear displacement measurement for rotating machinery. This 3500 series module accepts inputs from eddy current proximity probes and LVDTs. It converts position signals into standardized 4-20 mA outputs for control systems. Maintenance engineers rely on this module for valve position and thrust bearing monitoring.

Input Channel Configuration

The Bently Nevada 140734-04 features 2 independent position input channels on a single module. Each channel accepts eddy current probe signals or LVDT sensor inputs. The module provides adjustable excitation for LVDT compatibility. Separate signal conditioning exists for each input channel. This dual-channel design supports redundant measurement configurations.

Measurement Range and Resolution

The module measures position over a range of 0 to 100 millimeters. It achieves a resolution of 0.01 millimeters for precise positioning feedback. The input sensitivity adjusts from 2 to 8 millivolts per millimeter. Each channel includes programmable scaling for engineering units. This flexibility suits various machine geometries and measurement requirements.

Output Signaling and Alarm Capabilities

The Bently Nevada 140734-04 provides two 4-20 mA analog outputs for process integration. It includes 4 programmable alarm relays for position trip levels. Each channel offers independent alert and danger alarm setpoints. The module also provides buffered outputs for diagnostic connectivity. These outputs enable comprehensive position monitoring strategies.

Filtering and Signal Processing

The module incorporates adjustable low-pass filtering for noise rejection. Filter settings range from 1 to 10 hertz for different applications. A notch filter eliminates 50/60 Hz power line interference. Digital averaging smooths rapid position fluctuations. These processing features ensure stable and reliable position readings.

Communication and System Integration

The Bently Nevada 140734-04 interfaces with the 3500 rack backplane. It exchanges data with the system controller for alarm management. The module supports Modbus and DCS communication protocols. Configuration software enables parameter setting and calibration. This integration simplifies system-level monitoring and control.

Physical Dimensions and Installation

The module measures 65 millimeters in width, 150 millimeters in height, and 120 millimeters in depth. The unit weighs 0.5 kilograms for straightforward insertion. It plugs into any available 3500 rack slot. The module requires no special mounting hardware. This design facilitates easy field replacement.

Power Consumption and Heat Dissipation

The Bently Nevada 140734-04 draws 150 milliamperes from the backplane supply. It consumes approximately 5 watts of power during normal operation. The module dissipates heat through natural convection. The aluminum housing aids thermal management. This low power requirement suits high-density installations.

Diagnostic and Status Indication

Front-panel LEDs display power, communication, and channel status. A green OK LED confirms normal module operation. Each channel has dedicated alarm and danger indicator LEDs. The module sends diagnostic data to the system controller. These features enable rapid identification of measurement issues.

Environmental Specifications

The module operates between -20°C to +65°C ambient temperature. It withstands 10% to 95% non-condensing humidity conditions. The unit meets ISA S71.04 environmental standards. The conformal-coated PCB resists moisture and contaminants. The robust design handles industrial vibration and shock.

Technical Specifications Table
