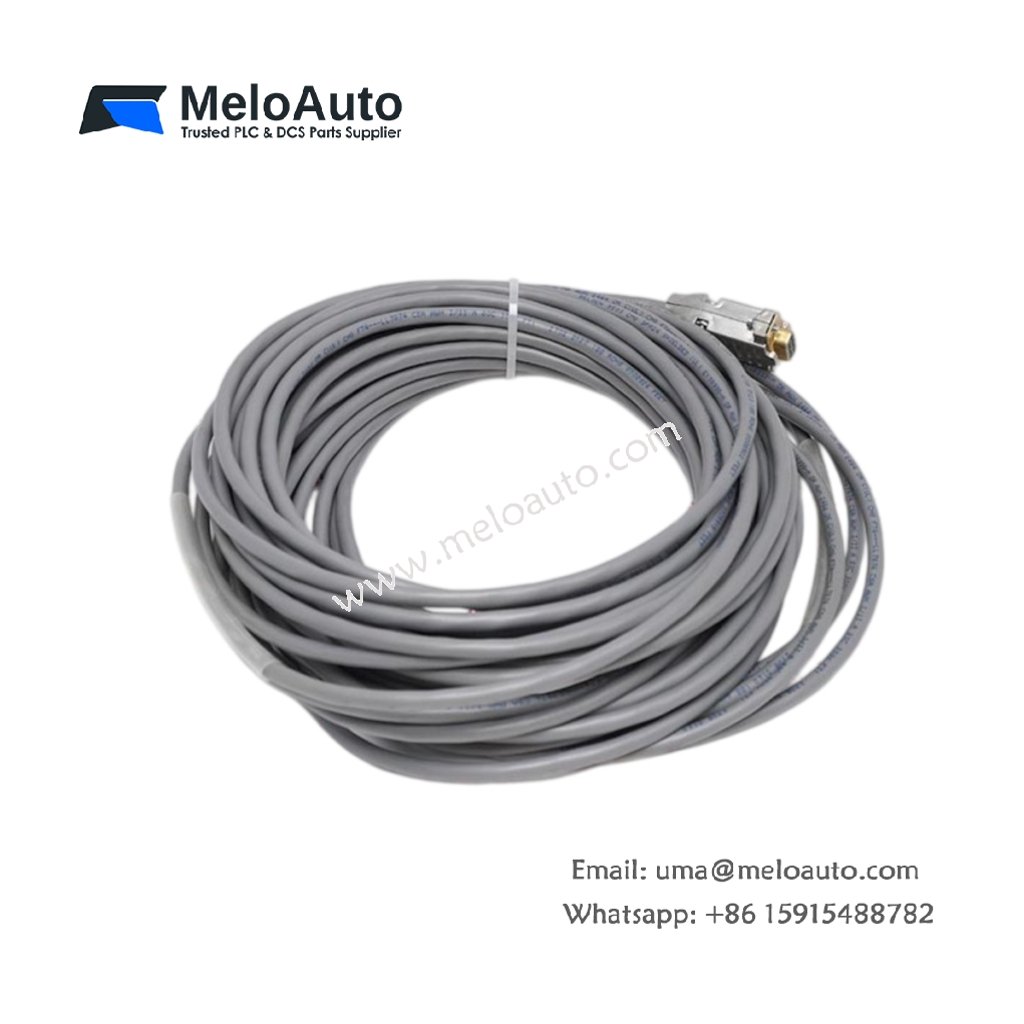

Bently Nevada 130118-0050-02 Transducer Assembly for 3300 XL Systems

This transducer assembly combines a proximity probe and extension cable into one integrated unit. It provides complete vibration measurement solutions for turbines, compressors, and pumps. Operators rely on this assembly for accurate shaft position monitoring in critical machinery. Its pre-assembled design eliminates field wiring errors and reduces installation time significantly.

Integrated Design and System Compatibility

The Bently Nevada 130118-0050-02 pairs a precision probe with a matched extension cable perfectly. This integrated assembly connects directly to 3300 XL rack-mounted monitors without additional components. The factory-sealed interface ensures consistent electrical performance throughout the system. Therefore, engineers achieve reliable measurements without concerns about connection integrity or signal loss.

Electrical Performance and Output Specifications

The Bently Nevada 130118-0050-02 delivers a sensitivity of 7.87 mV/µm across its linear range. Its nominal gap voltage stabilizes at -9.0 Vdc under normal operating conditions. The assembly supports a frequency response from DC to 10 kHz. This broad bandwidth captures both slow shaft movements and rapid transient vibrations. Additionally, the built-in EMI shielding minimizes electrical noise from surrounding equipment effectively.

Mechanical Construction and Physical Properties

The transducer assembly features a 5.0-meter total length for flexible installation options. Its probe tip diameter measures 8.2 mm, matching standard 3300 XL specifications. The housing employs a 3/8-24 UNF-2A thread for secure mounting in bearing housings. The extension cable uses durable coaxial construction with a braided shield. Furthermore, the single-piece design eliminates intermediate connectors that could introduce signal degradation.

Key Technical Specifications

The table below details the critical parameters for the Bently Nevada 130118-0050-02.

Environmental Resistance and Operational Durability

The Bently Nevada 130118-0050-02 resists oil, hydraulic fluid, and moisture effectively. The PPS probe tip maintains dimensional stability under thermal cycling conditions. All sealing elements conform to IP67 standards for dust and water protection. Consequently, this assembly provides a service life exceeding 50,000 hours in demanding environments. The rugged construction minimizes maintenance interventions and extends replacement intervals.

Installation Benefits and Application Value

This pre-assembled transducer simplifies field installation and reduces potential failure points. The integrated design eliminates the need for probe-to-cable connections in the field. Technicians can install the complete assembly quickly without specialized termination tools. Therefore, plants benefit from reduced downtime during scheduled maintenance or emergency repairs. The combination of integration and precision supports effective predictive maintenance programs.
