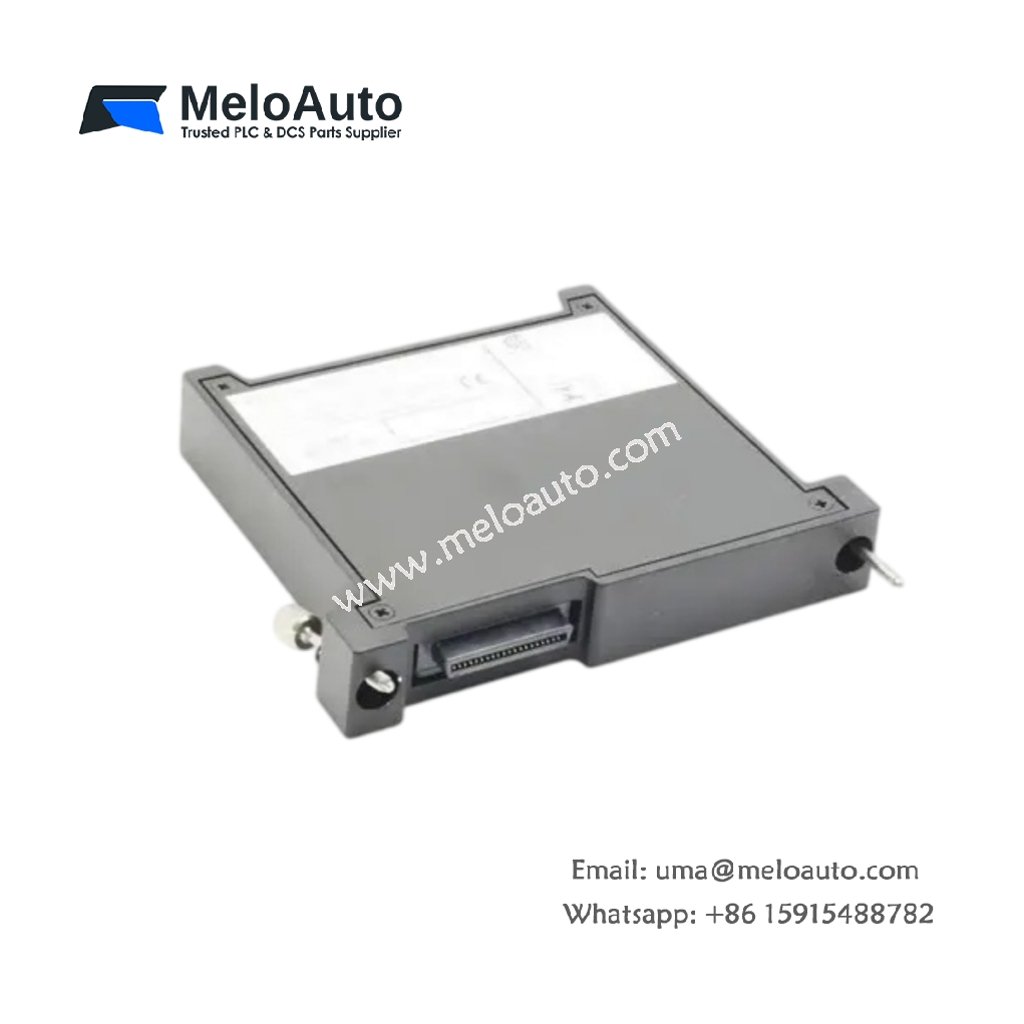

Bently Nevada 1034549-20 Proximitor Input Module

The 1034549-20 Proximitor input module from Bently Nevada captures displacement signals inside machinery protection systems. Plant engineers install this module whenever proximity probes must feed a monitor rack directly. Consequently, it delivers clean shaft position and vibration data for protection decisions.

Key Technical Specifications

The table below outlines the main physical and electrical parameters of the 1034549-20 module.

Parameter	Specification
Product Type	Proximitor Input Module
Compatibility	Bently Nevada machinery protection systems
Dimensions	Approximately 254 mm x 127 mm x 51 mm
Weight	Approximately 1.0 kg (2.2 lbs)
Mounting	Rack frame or panel mounting base
Interface	Backplane bus and proximity probe input terminals
Connectors	Multi-pin connector and coaxial input ports
Component Count	Multiple signal conditioners, oscillators, and driver circuits
Energy Storage	On-board capacitors for signal and voltage stabilization
Input Channels	Multiple proximity probe input channels
Signal Type	Eddy current displacement signal support
Operating Temperature	0 degrees C to 60 degrees C
Storage Temperature	-40 degrees C to 85 degrees C
Humidity	5% to 95% non-condensing

Functional Overview

This module powers proximity probes and converts their signals into displacement values. Therefore, it supplies shaft position and vibration data to the protection processor. The 1034549-20 also filters electrical noise that would otherwise distort readings. Meanwhile, its onboard energy storage stabilizes signals during transient voltage fluctuations.

Installation and Handling Notes

Always verify probe gap voltage before connecting sensors to the 1034549-20. In addition, use low-noise coaxial cable to protect signal integrity. Tighten all connectors fully to prevent intermittent data loss. Finally, confirm channel readings during commissioning.
