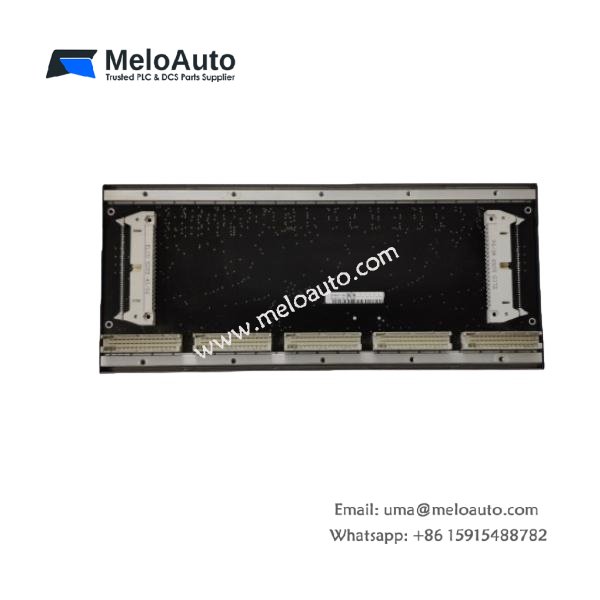

Bachmann BS205 BIO413 BIO413/00 I/O Backplane Module

Overview

The Bachmann BS205 BIO413 BIO413/00 I/O backplane module is a robust and reliable solution designed for connecting M1 controller hardware modules in industrial automation systems. This backplane provides five module slots, offering a stable and scalable platform for various components such as power supplies, CPU modules, and input/output modules. Its durable construction ensures reliable operation even in demanding industrial environments.

Key Features

Number of Slots: 5
Module Type: I/O backplane
Compatible Modules: M1 controller hardware modules, including power supplies, CPU modules, and I/O modules
Connector Type: 96-pin connections for data and power transmission
Mechanical Design: Compact and vibration-proof, with a robust mounting mechanism
DIN Rail Mounting: Easily snaps onto EN 60715 DIN rail for secure installation

Technical Specifications

Specification	Details
Product Type	I/O Backplane
Manufacturer	Bachmann
Model Numbers	BS205, BIO413, BIO413/00
Number of Module Slots	5
Connector Type	96-pin data and power connections
Dimensions	200 mm (W) x 150 mm (H) x 50 mm (D)
Weight	1 kg
Operating Temperature Range	-20°C to +60°C
Storage Temperature Range	-40°C to +85°C
Humidity (Operation)	5% to 95%, non-condensing
Humidity (Storage)	5% to 95%, non-condensing
Approvals/Certifications	CE, UL, CCC, DNV GL, ABS, BV, LR, NK, KR, RINA

Dimensions and Weight

Dimensions: 200 mm (Width) x 150 mm (Height) x 50 mm (Depth)
Weight: 1 kg

Applications and Features

The BS205 BIO413 BIO413/00 I/O backplane serves as the central connection hub for M1 system components, including essential modules like power supplies and CPUs. This backplane supports up to five modules and guarantees seamless integration with various industrial devices. Its vibration-proof design ensures the system’s integrity, even in harsh environments.

Certifications and Approvals

The BS205 BIO413 BIO413/00 has been certified for use in a variety of industrial sectors. It complies with CE, UL, CCC, and other international standards. Marine certifications like DNV GL, ABS, BV, and others ensure reliability in marine applications.
