Scalable Backbone for M200 Controller Platforms

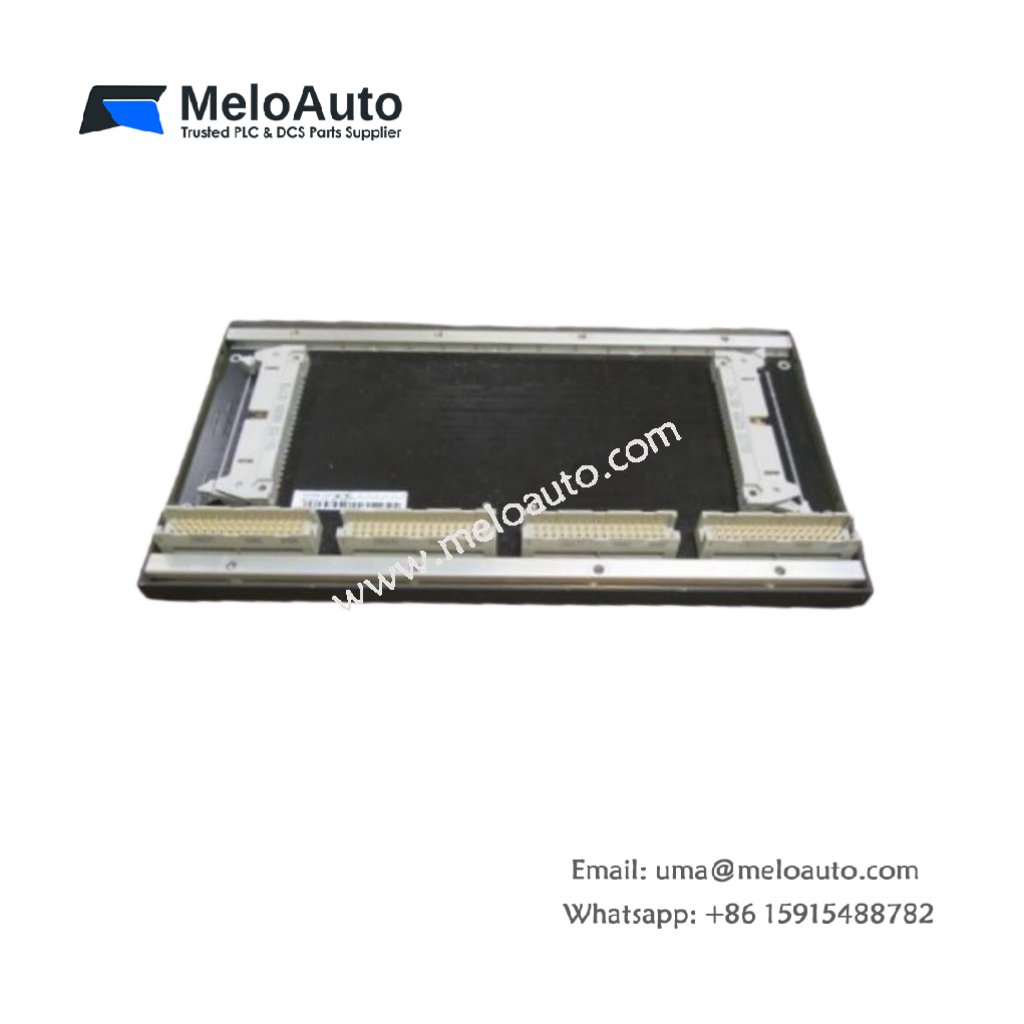

The Bachmann BS204 backplane forms the structural and electrical core of every M200 automation system. I highlight its slot capacity, mechanical strength, and installation flexibility to deliver clear and SEO-ready technical content.
Modular Connection for Flexible M200 Architectures
The BS204 links power supplies, CPUs, and I/O modules through a stable and compact bus design. Each backplane supports between one and sixteen slots, and it snaps directly onto an EN 60715 DIN rail for fast system assembly. Bachmann also offers S201, S202, S203, and S205 adapters for standalone modules without an integrated backplane connection.
Technical Specifications
Mechanical Specifications
| Parameter | Value |
|---|---|
| Module Slots | 1–16 |
| Width | 55 mm × number of slots |
| Depth | 23 mm including connector |
| Height | 119 mm |
| Installation | EN 60715 DIN rail |
Environmental & Compliance
| Category | Details |
|---|---|
| Operating Temperature | –30 °C to +60 °C (vertical: –30 °C to +55 °C) |
| Relative Humidity (operation) | 5–95% non-condensing |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity (storage) | 5–95% non-condensing |
| General Certificates | CE, UKCA, cULus |
| Marine Certificates | ABS, BV, DNV, KR, LR, NK, RINA |
Performance and System Value
The BS204 supports vibration-resistant module mounting, and it maintains reliable electrical continuity across all installed components. It also ensures stable thermal behavior and long-term durability in industrial automation environments.
Origin, Dimensions, Weight
- Origin: Austria (Bachmann Electronic GmbH)
- Dimensions: Width 55 mm × slot count; Depth 23 mm; Height 119 mm
- Weight: 0.4 kg (approx.)
