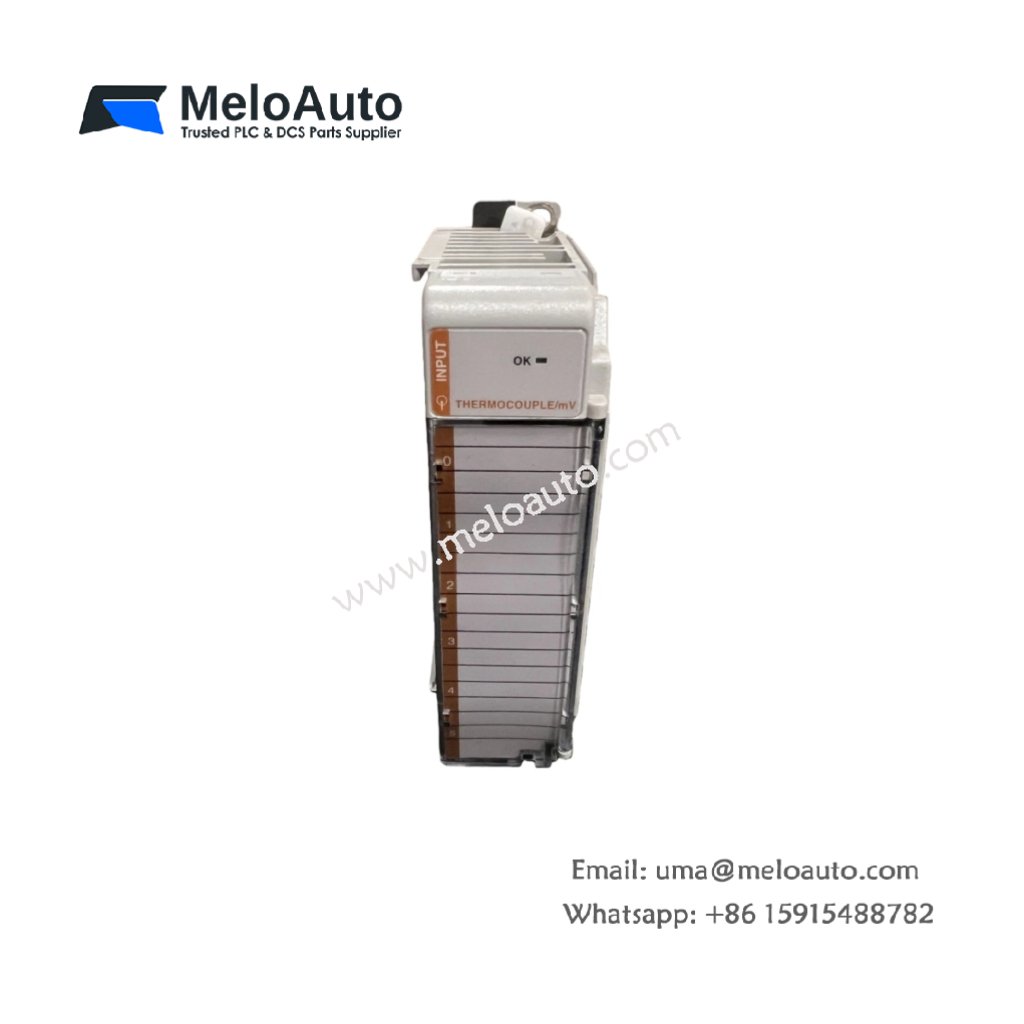

Allen Bradley 1769sc-IT6I Thermocouple Input Module

Product Overview

The Allen Bradley 1769sc-IT6I is a high-performance Thermocouple Input Module designed for the CompactLogix system. Manufactured by Spectrum Controls, this module features six isolated input channels that support a wide range of thermocouple types (J, K, T, E, R, B, S, N, C, L) as well as millivolt signals (±50 mV, ±100 mV). Ideal for use in temperature measurement and transducer interface, it provides precise analog data conversion with high isolation standards.

Key Features

6 Isolated Channels: Supports both thermocouple and millivolt inputs, allowing flexible integration with various sensor types.
High Isolation: Ensures 125 VAC channel-to-channel isolation, with additional isolation between field wiring and backplane, and field wiring and chassis ground.
Temperature Range: Operates within 0 °C to 60 °C (32 °F to 140 °F), making it suitable for various industrial environments.
Resolution: Offers a 16-bit resolution for accurate measurement.
Configurable Parameters: Features adjustable filter times and update times for fine-tuned performance.
Overvoltage Protection: Includes ±35 VDC continuous overvoltage protection, enhancing durability and safety.

Technical Specifications

Specification	Details
Model	1769sc-IT6I
Product Type	Thermocouple Input Module
Input Channels	6 Isolated Input Channels
Supported Sensors	J, K, T, E, R, B, S, N, C, L Thermocouples
	±50 mV, ±100 mV Millivolt Signals
Resolution	16-bit
Input Voltage Range	±50 mV to ±100 mV
Isolation Rating	125 VAC Channel-to-Channel Isolation
	125 VAC Field-Wiring-to-Backplane
	125 VAC Field-Wiring-to-Chassis Ground
Input Impedance	> 1 MΩ
Input Filter	Configurable: 4.17Hz, 10Hz, 16.7Hz, 19.6Hz, 62Hz, 470Hz
Channel Update Time	Configurable: 0.244s, 0.104s, 0.064s, 0.055s, 0.020s, 0.006s
Overvoltage Protection	±35 VDC Continuous
Backplane Current	150 mA at 5V, 35 mA at 24V
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity Range	5% to 95% Non-condensing
Certifications	UL/cUL Listed, CE, ANSI ISA 12.12.01 (Class I, Div 2)
Recommended Cable	Shielded, twisted-pair TC extension wire (for TC inputs)
	Belden 8761 or equivalent (for mV inputs)
Product Dimensions (LxWxH)	118 mm x 87 mm x 35 mm
Shipping Weight	276 g
Maximum Vibration	5G, 10 to 500 Hz
Maximum Altitude	6561 feet (2000 meters)
