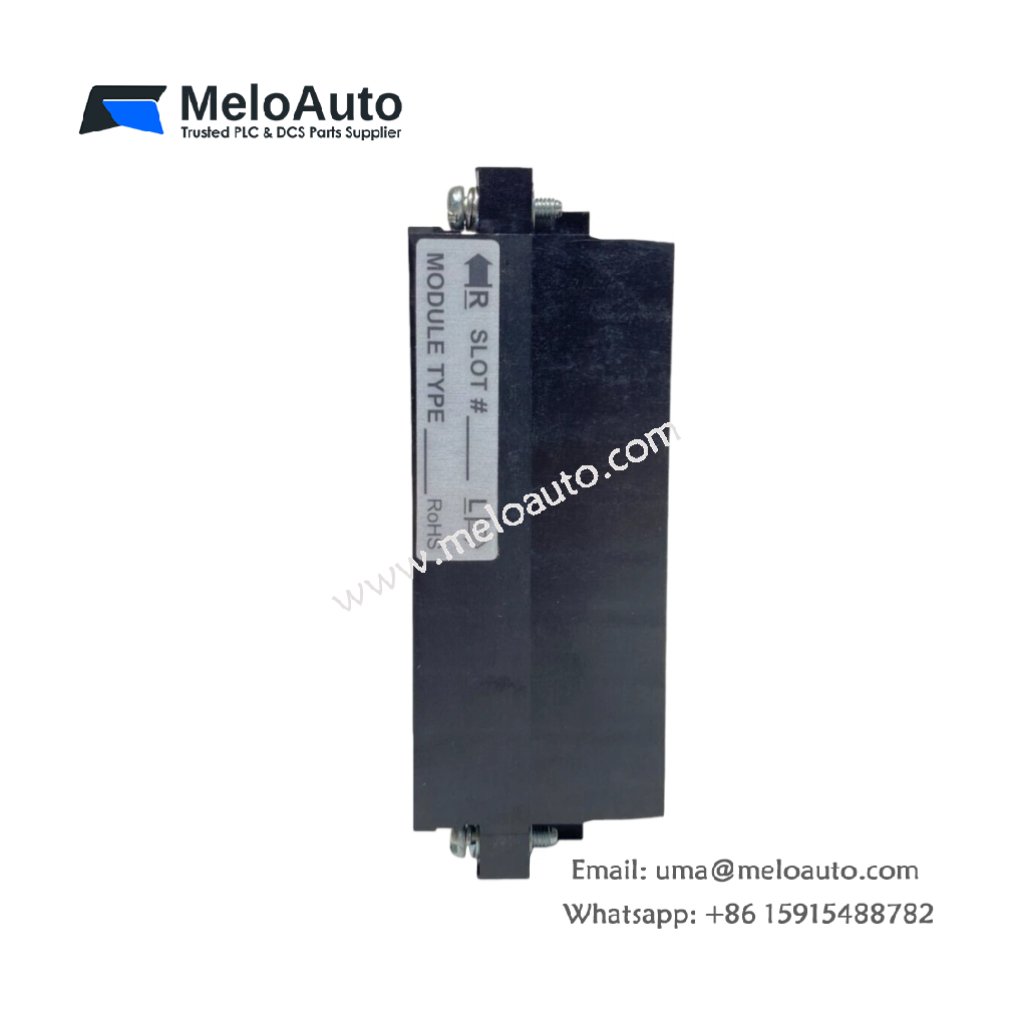

Allen-Bradley 1769-RTBN18 Terminal Block

The Allen-Bradley 1769-RTBN18 terminal block is part of the CompactLogix series, designed for versatile and reliable wiring solutions. This 18-pin terminal block ensures seamless connectivity for a variety of applications. It comes packaged as a single unit per kit, making it easy to install and use. The 1769-RTBN18 is suitable for copper wiring, with compatibility for both solid wire sizes of 22 to 14 AWG and stranded wire sizes of 22 to 16 AWG.

Key Features:

18-pin configuration: Offers flexible connectivity options for different wiring setups.
Copper wire compatibility: Supports solid and stranded wire sizes, ensuring reliable connections.
Wire temperature rating: Rated for up to 90°C, guaranteeing durability in high-temperature environments.
Moisture-resistant: Operates in environments with up to 80% humidity (non-condensing).
Altitude tolerance: Functions effectively at altitudes up to 1000 meters without derating.

Applications:

Ideal for CompactLogix systems: Perfectly suited for expanding connectivity in Allen-Bradley control systems.
Wiring applications: Connects copper wires to devices in industrial and automation settings.
Versatile installation: Suitable for various temperature and humidity conditions, ensuring dependable performance.

Technical Specifications:

Parameter	Specification
Product Type	Terminal Block
Manufacturer	Allen-Bradley
Product Line	CompactLogix
Part Number	1769-RTBN18
Pins	18
Per Kit Quantity	1
Wire Type	Copper
Wire Temperature Rating	90°C
Solid Wire Size	22 to 14 AWG
Stranded Wire Size	22 to 16 AWG
Operating Temperature	0°C to 60°C
Operating Humidity	80% max. (non-condensing)
Storage Humidity	80% max. (non-condensing)
Operating Altitude	Up to 1000 meters (no derating)
Storage Altitude	Up to 1000 meters (no derating)
