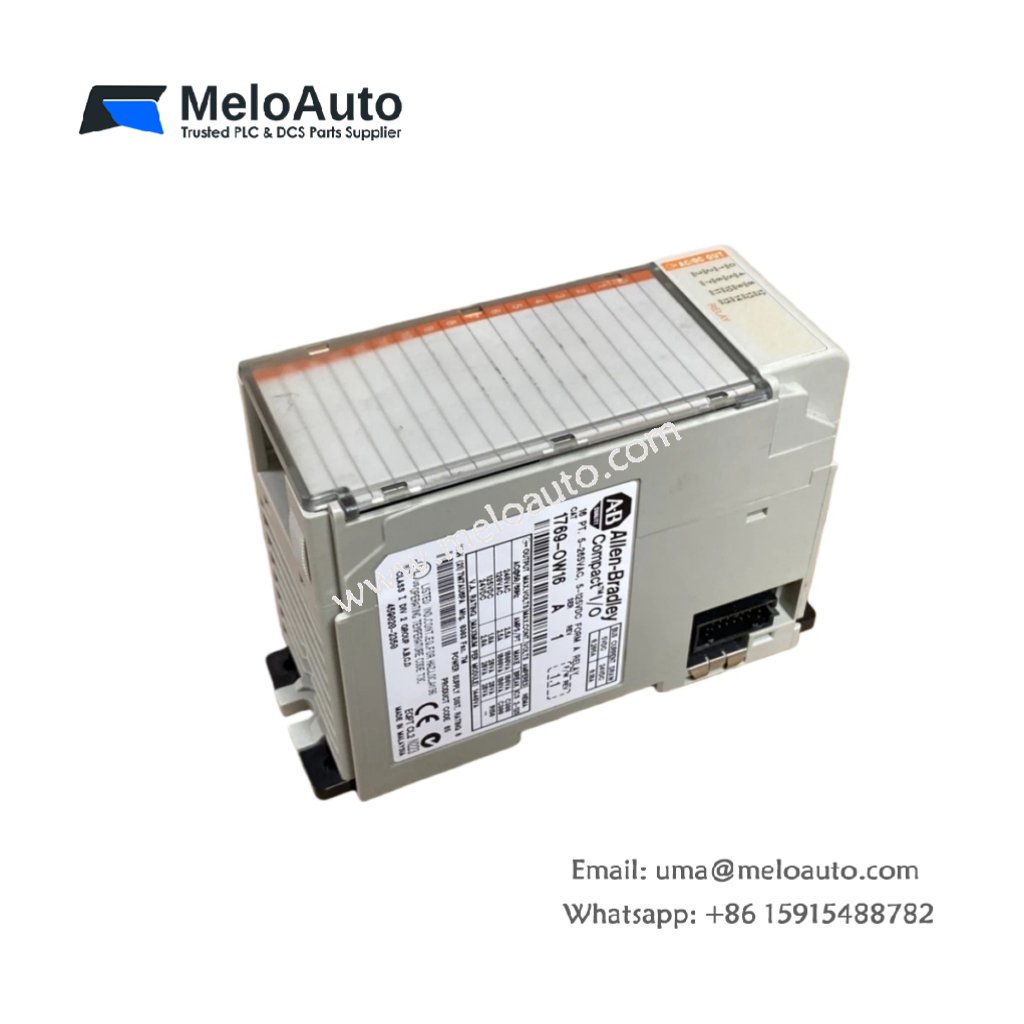

Allen-Bradley 1769-OW16 Compact I/O Relay Output Module

Overview

The Allen-Bradley 1769-OW16 is a reliable Compact I/O expansion module, specifically designed for use with MicroLogix 1500 and CompactLogix controllers. This module offers 16 Normally Open relay output channels, providing excellent flexibility for various industrial applications. With dual voltage compatibility, it supports both AC and DC power sources.

Key Features

Product Type: Discrete Output Module
Product Line: CompactLogix
Part Number: 1769-OW16
Manufacturer: Allen-Bradley
Module Type: Relay Output Module
Enclosure Type: Open
Operating Voltage: 5 to 265 Volts AC, 5 to 125 Volts DC
Number of Outputs: 16
Groups: 2 (8 points per group)
Output Type: Normally Open Relay (AC/DC)
Maximum Current per Module: 20 Amps
Maximum Current per Point: 2.5 Amps
Signal Delay (On): 10 ms
Operating Temperature: 0 to 60°C
Operating Shock: 30G
Vibration Resistance: 2G

Technical Specifications

Specification	Value
Operating Voltage Range	5 to 265V AC / 5 to 125V DC
Current per Module	20 Amps
Current per Point	2.5 Amps
Wire Size	22 to 14 AWG (Solid) / 22 to 16 AWG (Stranded)
Bus Current Draw (24V)	100 mA
Bus Current Draw (5.1V)	125 mA
Heat Dissipation	2.83 Watts
Maximum Power Dissipation	4.75 Watts
Number of Outputs	16
Number of Groups	2
Output Type	Normally Open (Form A)
Operating Temperature Range	0 to 60°C
Humidity Range	5 to 95% (Non-condensing)
Module Weight	1.00 lbs (0.45 kg)
Dimensions (H x W x D)	4.65 x 2.07 x 3.43 inches (5.43 inches with mounting tabs)

Compatibility and Installation

The 1769-OW16 module is designed for use with MicroLogix 1500 and CompactLogix controllers. It can be used as both a local and expansion I/O in CompactLogix systems. For MicroLogix 1500 systems, it serves as an expansion module. The module connects to the controller assembly via the communication bus, which also supplies power.

Note: The 1769-OW16 requires its own power supply unless used in conjunction with the MicroLogix 1500 base. Compatible power supplies include 1769-PA2, 1769-PB2, 1769-PA4, and 1769-B4. The module can be mounted using a panel or DIN rail.

Application

Ideal for controlling AC and DC loads, the 1769-OW16 module is equipped to handle electrical and inductive loads up to its current ratings. With 16 Normally Open (Form A) contacts, this module ensures that your system can manage both small and larger current ratings effectively.
