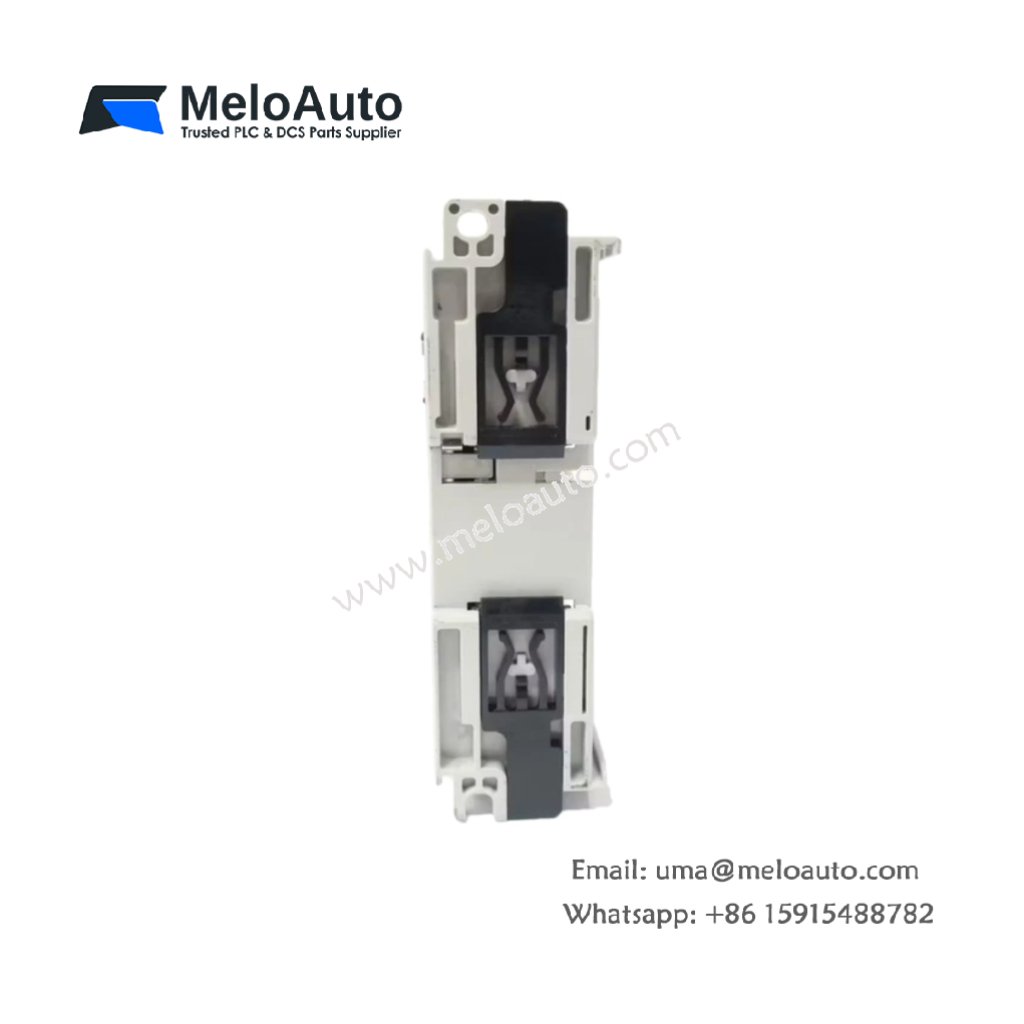

Allen-Bradley 1769-OB8 DC Output Module

The Allen-Bradley 1769-OB8 is a versatile DC-powered digital output module, specifically designed for CompactLogix systems. This module ensures high-performance control and reliable operation, making it perfect for industrial applications that demand precise and efficient output management.

Key Features

8 Digital Outputs: With 8 output points, the 1769-OB8 allows you to handle high-current tasks effortlessly. It ensures reliable performance across various industrial applications.
Wide Voltage Range: Operating within a 24V DC range, from 20.4V to 26.4V DC, this module guarantees stable and reliable operation, regardless of fluctuating voltage conditions.
Surge Handling: The 1769-OB8 can handle a surge current of up to 4A for 10ms, with repeatability every 2 seconds. This feature protects sensitive equipment from unexpected power surges.
Configurable I/O: Additionally, you can easily program the module to either maintain its last state or configure it with custom conditions. This flexibility enhances integration in any automation setup.
Flexible Installation: The module offers versatile mounting options. Whether you prefer DIN rail or panel installation, it adapts seamlessly to your system’s needs.
Reliable Performance: Designed to meet the demands of harsh industrial environments, the 1769-OB8 provides stable, continuous output control, ensuring your system runs efficiently over time.

Applications

The 1769-OB8 is ideal for expanding the I/O capabilities of MicroLogix controllers. It works effortlessly with both EtherNet and DeviceNet adapters, ensuring smooth communication within your automation system. Given its compatibility with CompactLogix systems, it integrates seamlessly into various control processes, making it highly versatile in industrial applications.

Technical Specifications

Specification	Details
Manufacturer	Allen-Bradley
Product Line	CompactLogix
Part Number	1769-OB8
Module Type	DC Output Module
Input Type	Digital Output
Number of Outputs	8 Points
Voltage Range	20.4V to 26.4V DC
Current Draw	145 mA at 5.1V
Surge Current	4A for 10ms (repeatable every 2s)
Mounting	Panel Mount or DIN Rail
Wire Size (Stranded)	22-16 AWG
Replacement Terminal Block	1769-RTBN18
Replacement Door	1769-RD

Dimensions & Weight

Weight: 0.56 lbs (0.26 kg)
Dimensions: Compact and easy to mount in both control panels and on DIN rails.

Product Origin

Allen-Bradley, a leader in industrial automation, manufactures the 1769-OB8 module. They are known for delivering top-quality, reliable products that meet industrial standards.
