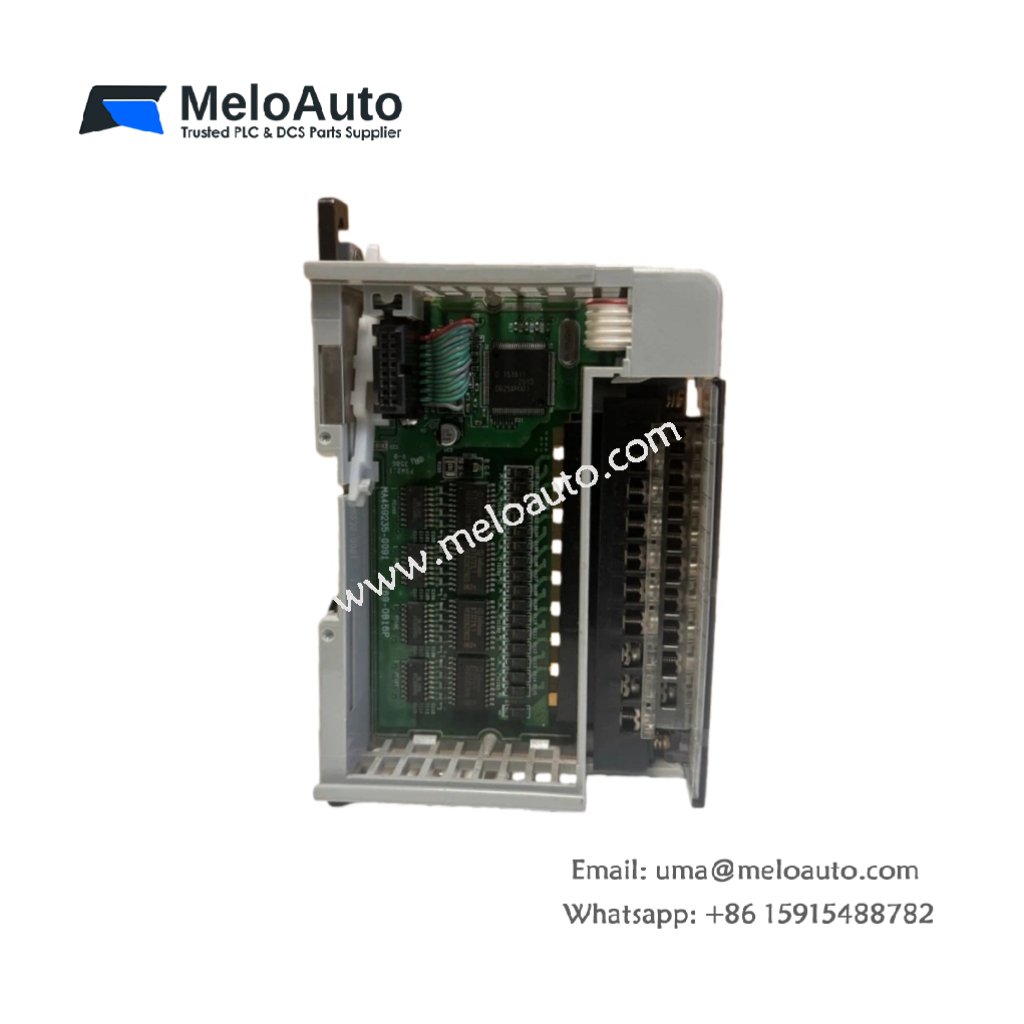

Allen-Bradley 1769-OB16P Solid-State 24VDC Output Module

The Allen-Bradley 1769-OB16P is a solid-state 24VDC output module, designed for use with CompactLogix and MicroLogix 1500 controllers. As part of the 1769 Compact I/O family, this module provides 16 protected output channels in a single group, ensuring reliable performance in various industrial automation applications.

Key Features:

Output Channels: 16 (protected)
Voltage Range: 20.4VDC to 26.4VDC
Output Configuration: Sourcing
Delay Times: ON to OFF = 2 ms, OFF to ON = 1 ms
Surge Current: 2.0 A for 10 ms (repeatable every 1 second)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Mounting: DIN Rail or Panel

Technical Specifications

Specification	Value
Part Number	1769-OB16P
Manufacturer	Allen-Bradley
Category	PLCs
Product Line	CompactLogix
Module Type	Solid-State DC Output Module
Number of Outputs	16 (protected)
Output Voltage	24VDC
Operating Voltage Range	20.4VDC to 26.4VDC
Output Delay Time (ON to OFF)	2 ms
Output Delay Time (OFF to ON)	1 ms
Leakage Current (OFF State)	1.0 mA @ 26.4V DC
Continuous Current per Point	0.50 A @ 30°C (86°F) / 1.0 A @ 60°C (140°F)
Continuous Current per Module	4.0 A @ 30°C (86°F) / 8.0 A @ 60°C (140°F)
Surge Current	2.0 A for 10 ms, repeatable every 1 second
Power Supply Distance Rating	8 modules
Backplane Current	160 mA at 5.1V DC
Wire Size (Solid)	22 to 14 AWG
Operating Temperature	-20°C to 60°C (-4°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Heat Dissipation	2.69 W
Agency Certifications	UL, CE, IEC Class 2 Reinforced Insulation
Module Dimensions	4.65 x 1.38 x 3.43 in (118.1 x 35.1 x 87.2 mm)
Weight	0.56 lbs (0.25 kg)

Performance and Protection

The 1769-OB16P module ensures excellent performance with fast output transition times of 1 ms for ON and 2 ms for OFF. It provides a 24VDC output and can handle 0.5 A per point at 30°C (86°F) or 1.0 A per point at 60°C (140°F). Additionally, the module supports 2.0 A surge current for 10 ms, repeating every second. This feature protects the module in environments with high electrical transients.

To further enhance safety, the module integrates IEC Class 2 reinforced insulation, offering protection against voltages up to 75VDC. It also includes a 1769-RTB18 Removable Terminal Block (RTB), simplifying maintenance and module replacement.

Installation and Compatibility

Install the 1769-OB16P module as a local I/O or expansion I/O module for both CompactLogix and MicroLogix 1500 controllers. It offers flexible mounting options for both DIN rail and panel installations. To ensure proper functionality, keep the module within the power supply distance rating of 8 modules from the power supply.

The module operates within a voltage range of 20.4VDC to 26.4VDC and draws 160 mA at 5.1V DC from the backplane. Use this module for reliable and efficient control in your industrial systems, providing fast response times and high current ratings.
