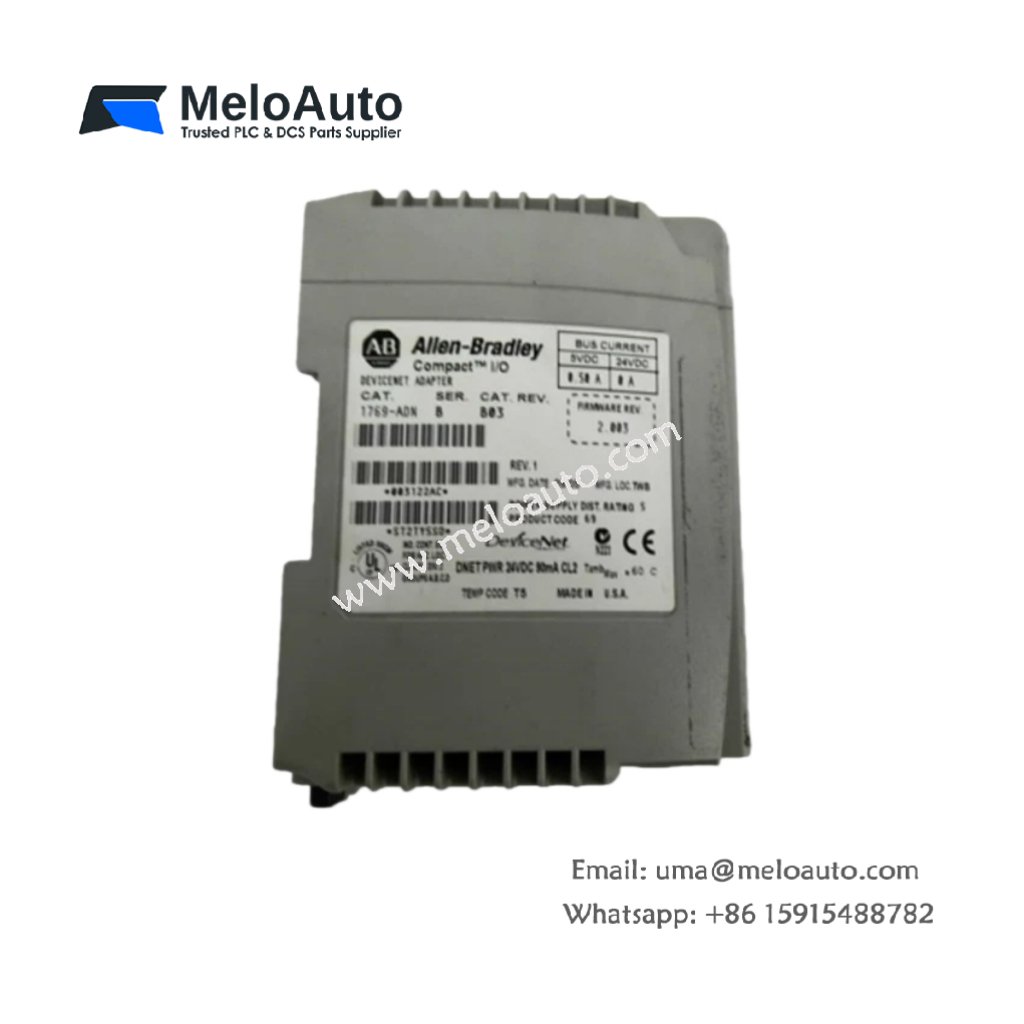

Allen-Bradley 1769-ADN DeviceNet Adapter

The Allen-Bradley 1769-ADN DeviceNet Adapter connects your Compact™ I/O system to a DeviceNet network, enabling seamless communication with field devices. This module is ideal for industrial environments requiring reliable, high-performance connections.

Key Features and Applications

The 1769-ADN DeviceNet Adapter module allows quick integration into your Compact™ I/O system. It supports DeviceNet communication protocols and facilitates easy control of industrial devices. You can mount the 1769-ADN on a DIN rail or panel, providing flexibility in installation. Additionally, you can easily replace or upgrade the module when needed. Its diagnostic indicators help monitor system health, while its data transfer speeds ensure smooth communication.

Technical Specifications

Specification	Value
Model	1769-ADN
Module Type	DeviceNet Adapter Module
Dimensions (H x W x D)	5.1 cm x 15.2 cm x 15.2 cm
Weight	0.3 kg
Shipping Weight	0.9 kg (2 pounds)
Shipping Dimensions	8 x 8 x 5 inches
Power Supply Distance Rating	Series A: 4, Series B: 5
Communication Port	One (1) DeviceNet
Data Transfer Speed	125 kb/s, 250 kb/s, 500 kb/s
Indicators	Module status (Red/Green), Network status (Red/Green), I/O status (Red/Green), Diagnostic status (Red/Green)
Isolation Voltage	30 Volts Continuous
Operating Temperature	32°F to 140°F (0°C to 60°C)
Storage Temperature	-40°F to +185°F (-40°C to +85°C)
Power Consumption	33.6 Watts
Backplane Current	Series A: 450mA at 5V DC (2.25W), Series B: 500mA at 5V DC (2.5W)
Power Dissipation	7.5 Watts
Mounting Options	DIN Rail, Panel
Agency Certification	UL, CE, DeviceNet Foundation
Enclosure Type	Open

Installation and Mounting

Mount the 1769-ADN DeviceNet Adapter easily in your system. You can choose DIN rail or panel mounting. This flexibility allows for various setups depending on your system’s needs. If replacing an existing module, follow the steps outlined in the “Replacing the 1769-ADN within a System” section.

Performance and Diagnostics

The 1769-ADN supports data transfer speeds of 125 kb/s, 250 kb/s, and 500 kb/s, ensuring rapid and reliable communication. The module includes several diagnostic indicators for monitoring. These include module status, network status, I/O status, and diagnostic status, all of which help maintain efficient system operation.

Environmental Specifications

Operating in temperatures ranging from 32°F to 140°F (0°C to 60°C), the 1769-ADN adapts to most industrial conditions. Additionally, the module tolerates storage temperatures from -40°F to +185°F, ensuring durability in extreme environments.
