ABB YPH108B/SPC Speed Measurement Board

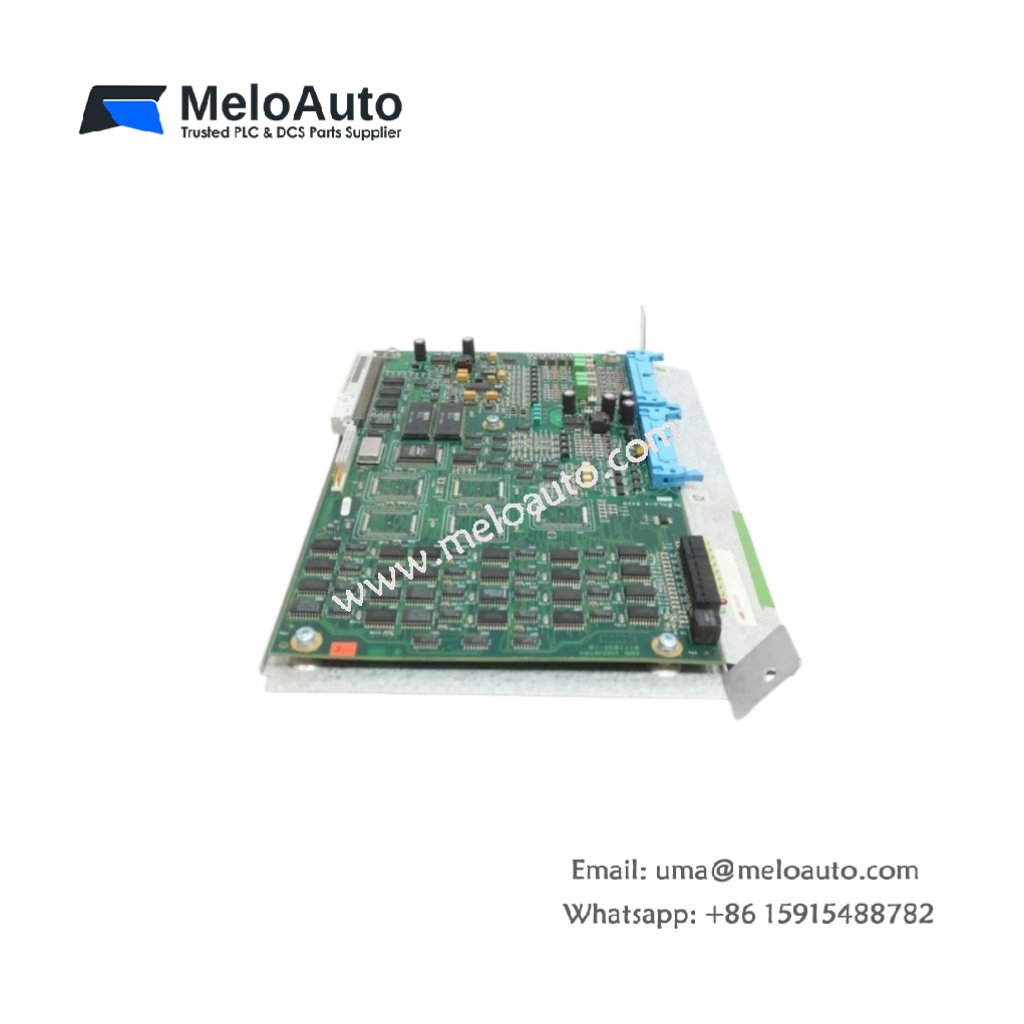

Overview of the ABB YPH108B/SPC Speed Measurement Board

The ABB YPH108B/SPC Speed Measurement Board is engineered to provide precise speed measurement and reliable signal processing for industrial automation systems. Designed for high-performance control systems, this board ensures accurate readings, even in challenging environments. Whether used in motors, conveyors, or other rotational systems, the YPH108B/SPC is the perfect solution for applications requiring precise speed monitoring.

The YPH108B/SPC integrates seamlessly into ABB automation platforms, offering flexibility and ease of use. With its durable construction and advanced features, this module supports efficient control, reducing downtime and improving system reliability.

Key Features and Benefits

High Precision: The ABB YPH108B/SPC accurately measures speed, ensuring optimal performance in automation systems.
Versatile Input Support: It accommodates both 0-20 mA (active current sources) and 4-20 mA (passive analog sensors), offering flexibility for various applications.
LED Status Indicators: The module features both green and red LEDs for real-time status updates, including overload and open-circuit detection.
Temperature Resilience: Designed to operate in extreme conditions, it works reliably within a temperature range of -25°C to +60°C.
Compact Design: With a small footprint, the YPH108B/SPC fits into tight spaces while delivering powerful performance.

Technical Specifications

Here is a detailed overview of the ABB YPH108B/SPC Speed Measurement Board’s specifications:

Specification	Details
Model	ABB YPH108B/SPC
Type	Speed Measuring Board
Manufacturer	ABB
Input Impedance	Approximately 330 Ω for current input
Current Input	0-20 mA (active current) and 4-20 mA (passive analog sensors)
Power Supply	24V DC (for compatible sensor types)
LED Indicators	Green and red LEDs for status indication
Overload and Open Circuit Detection	Yes, for added safety
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +70°C
Dimensions	14.8 cm x 7.5 cm x 1.5 cm
Weight	0.2 kg
Country of Origin	Sweden

Applications

The ABB YPH108B/SPC Speed Measurement Board is designed for use in various industrial applications requiring precise speed monitoring. It is particularly effective in systems such as:

Motor Control Systems: Accurately measures motor speed for optimal control and performance.
Conveyor Belt Systems: Monitors speed to ensure smooth and efficient material handling.
Rotational Equipment: Provides essential speed data for machines and mechanical equipment in various industries.

Its versatility in handling different current inputs and its temperature resistance make it suitable for a wide range of automation environments.

How to Integrate the ABB YPH108B/SPC Speed Measurement Board

Integrating the ABB YPH108B/SPC into your automation system is straightforward. First, mount the board in your control system. Connect the appropriate current input from your sensors, whether active or passive, to the module. The YPH108B/SPC will process the data and provide real-time speed readings. The integrated LED indicators will notify you of any issues such as overload or open circuits, allowing for quick troubleshooting.
