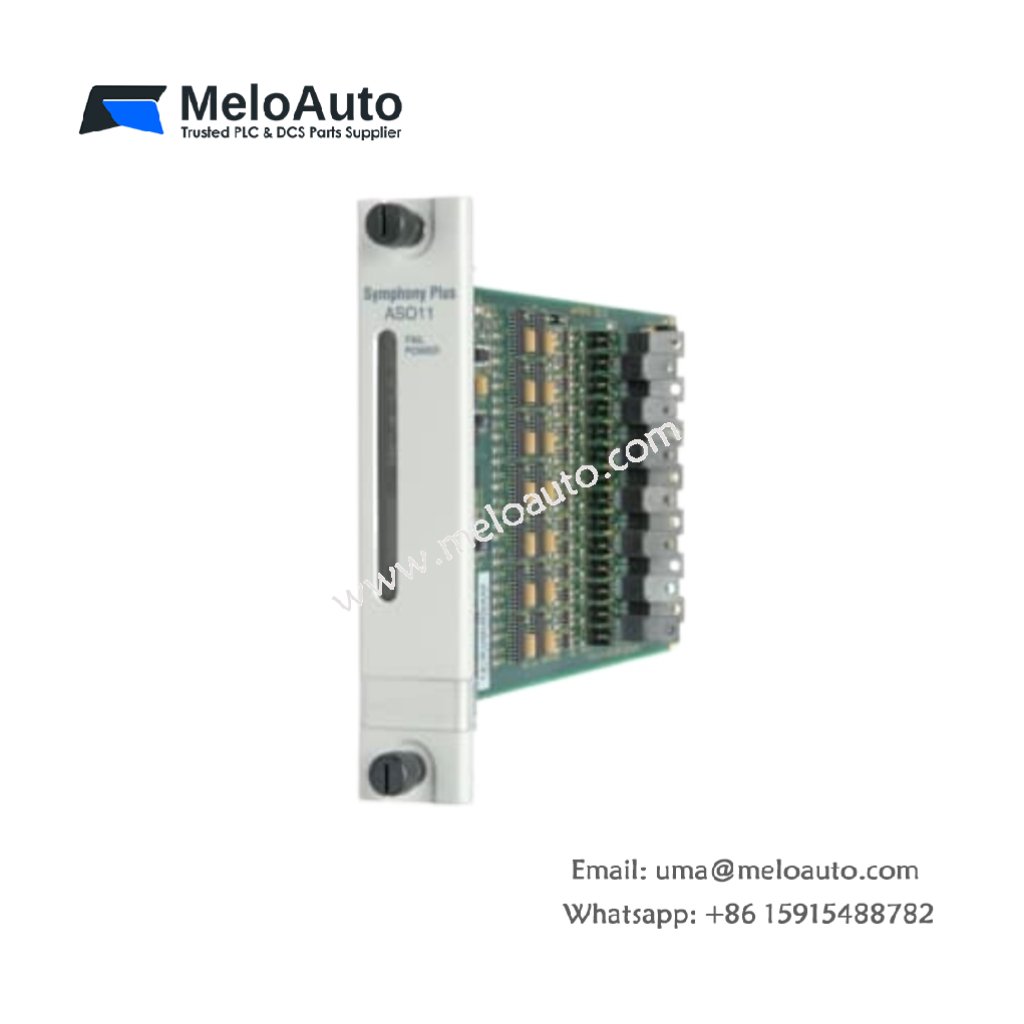

ABB SPAS011 AO Module: High-Precision 14-Channel Analog Output Solution

Overview

The ABB SPAS011 AO Module provides robust and high-precision analog output capabilities. With support for 4-20mA and 1-5V signals, this module is designed to cater to a wide variety of industrial applications. It features 14 channels with 12-bit resolution, ensuring accurate control and monitoring for critical processes. Its built-in reverse polarity protection and output short-circuit protection enhance system safety and reliability.

Key Features of the ABB SPAS011 AO Module

• 14-Channel Analog Output: The SPAS011 supports 14 output channels, providing flexible and scalable integration into complex systems.
• High Precision: With 12-bit resolution, it ensures highly accurate analog output for precise control in demanding industrial applications.
• Versatile Output Range: The module supports multiple output ranges including 0-10 V, -10 to 0 V, and 4-20 mA, offering versatility in a wide range of applications.
• Reverse Polarity and Short-Circuit Protection: Built-in protection features safeguard the system from potential damage due to reverse polarity or short circuits.
• Wide Temperature Range: The SPAS011 is designed to operate effectively in harsh environments with an operating temperature range of -40°C to 70°C and storage temperature between -55°C to 85°C.

Applications of the ABB SPAS011 AO Module

The ABB SPAS011 AO Module is ideal for a variety of industrial control systems, including:

• Actuator and valve control: Provides precise control for automated processes and valve operations.
• Data logging: Ensures reliable data collection with accurate analog outputs for monitoring systems.
• Alarm annunciation: Helps trigger alarms and notifications based on precise analog data signals.

Technical Specifications

Benefits of the ABB SPAS011 AO Module

1. Flexible Output Ranges: The module’s wide output range options make it highly adaptable for different industrial systems, offering 0-10 V, -10 to 0 V, and 4-20 mA output.
2. High-Precision Control: The 12-bit resolution ensures precise analog signal output, allowing for accurate actuator, valve, and sensor control.
3. Enhanced System Safety: With reverse polarity protection and short-circuit protection, the SPAS011 ensures reliable performance without risking damage to the system.
4. Wide Operational Range: The module performs effectively in both extreme temperatures, from -40°C to 70°C, making it suitable for harsh industrial environments.
5. Quick Response: The module’s 0.5-second response time ensures fast system adjustments, minimizing delays in automated processes.

Manufacturer: ABB

ABB is a leading global provider of industrial automation and control solutions, delivering advanced products for various sectors. The ABB SPAS011 AO Module is part of their trusted range of high-performance control systems, offering flexibility and reliability for a wide variety of applications.

Conclusion

The ABB SPAS011 AO Module offers exceptional flexibility and precision for industrial control systems. With 14 channels, 12-bit resolution, and a versatile output range, it provides reliable performance for actuator control, data logging, and alarm systems. Despite being designed for demanding conditions, it ensures long-term durability and system safety with built-in protection features.
