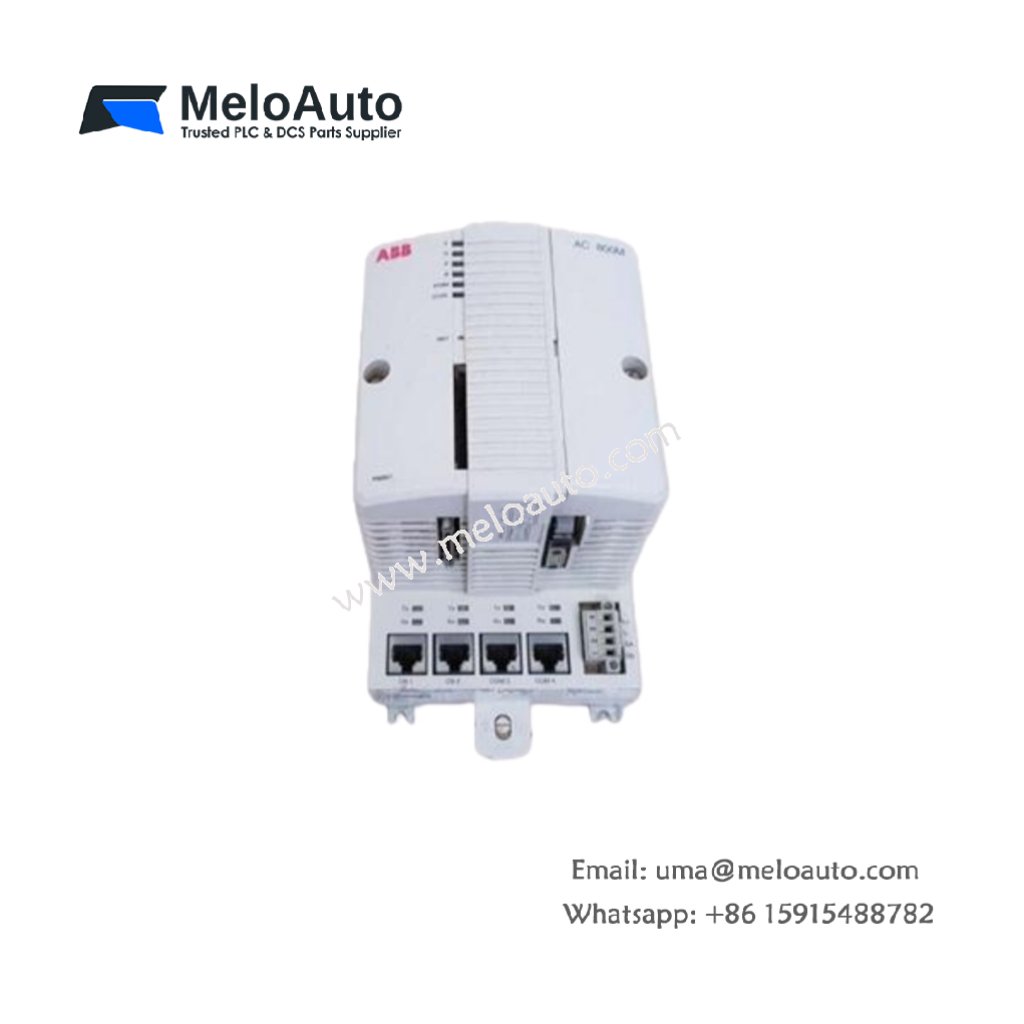

ABB PM861K01 3BSE018105R1 Processor Unit Kit

The ABB PM861K01 3BSE018105R1 Processor Unit Kit is designed to provide reliable and high-performance control capabilities for industrial automation systems. It includes the PM861 CPU and the TP830 baseplate, both essential for smooth system integration. Additionally, this processor unit supports CPU redundancy, ensuring uninterrupted performance. With its compact design and advanced features, the PM861K01 enhances data processing and control across demanding environments.

Key Features:

• Model: PM861K01 3BSE018105R1
• Product Type: Central Processor Unit
• Redundancy Support: Yes, supports CPU redundancy for continuous operation
• Customs Tariff Number: 85389091

Package Includes:

• PM861 CPU
• TP830 Baseplate (Width: 115 mm)
• TB850 CEX-bus Terminator
• TB807 Modulebus Terminator
• TB852 RCPU-Link Terminator
• Memory Backup Battery (Part Number: 4943013-6)
• 4-pin Power Plug (Part Number: 3BSC840088R4)

Specifications:

• Depth: 20.3 cm
• Height: 15.7 cm
• Width: 13.5 cm
• Weight: 1.14 kg
• Power Supply: 24 V DC (Voltage range: 19.2–30 V DC)
• Power Consumption: 180 mA (typical), 300 mA (maximum)

Product Functionality:

The PM861K01 3BSE018105R1 is engineered for use in various industrial control systems. The PM861 CPU processes data efficiently, enabling seamless control over automation tasks. Furthermore, the TP830 baseplate ensures a stable foundation for the unit. To facilitate communication, the package includes CEX-bus and Modulebus terminators. Thanks to CPU redundancy, the unit guarantees continuous operation even in the event of a failure, making it perfect for high-availability settings.

Applications:

Designed for demanding applications, the PM861K01 is an ideal solution for large-scale industrial automation systems. Industries such as manufacturing, energy, and process control benefit from its reliability, speed, and redundancy features.
