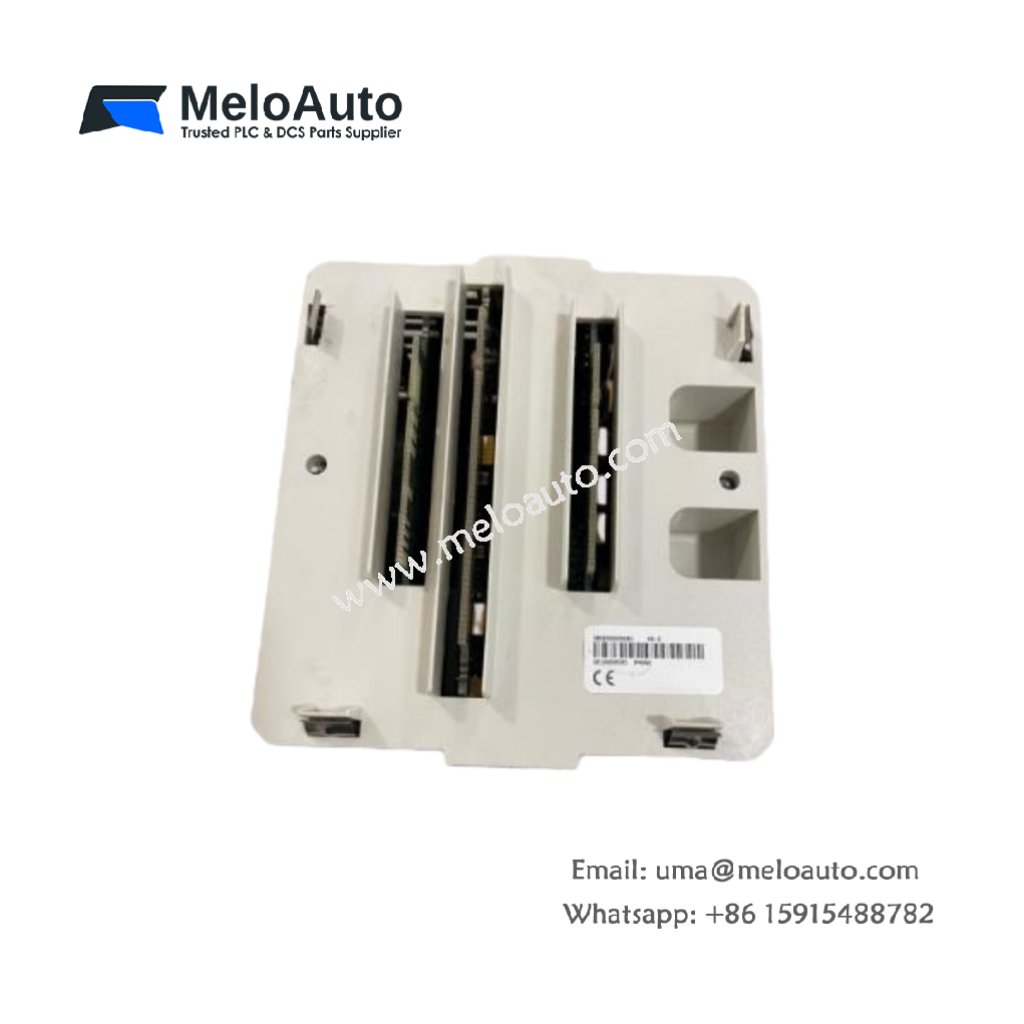

ABB PM860AK01 3BSE066495R1 Processor Unit

The ABB PM860AK01 3BSE066495R1 is a high-performance processor unit designed for industrial automation applications. With a robust 48 MHz CPU and 16 MB of memory, it ensures efficient data processing and control. This module is essential for system integration, supporting critical functions such as memory backup. Whether you’re integrating it into an existing system or using it for new installations, the PM860AK01 provides reliable performance and seamless operation in demanding industrial environments.

Key Specifications:

• Model: PM860AK01 3BSE066495R1
• CPU: 48 MHz
• Memory: 16 MB
• Battery:
  • Chemical Composition: Lithium
  • Weight: 9g
  • Battery Type: Portable
  • Number of Batteries: 1
• Power Supply: 24 V DC (Voltage range: 19.2–30 V DC)
• Power Consumption: 180 mA (typical), 300 mA (maximum)
• Power Dissipation: 4.5 W (maximum)

Dimensions & Weight:

• Depth/Length: 160 mm
• Height: 200 mm
• Width: 140 mm
• Net Weight: 1.1 kg

Environmental & Safety Compliance:

• RoHS Compliance: Fully compliant with EU Directive 2011/65/EU
• WEEE Category: Small Equipment (No external dimension exceeds 50 cm)
• Dangerous Goods Classification:
  • Class: 9 – Miscellaneous Dangerous Substances
  • UN Number: UN3091-PI970

Product Features:

• High Performance: The PM860AK01 offers fast processing with its 48 MHz CPU, ensuring reliable control in industrial automation systems.
• Reliable Memory: Equipped with 16 MB of memory for secure data storage, this processor supports demanding applications.
• Seamless System Integration: The PM860AK01 is ideal for integrating into existing systems, enhancing their performance and reliability.
• Battery Backup: Includes a lithium battery for memory backup, ensuring that critical data is retained during power outages.
• Compact Design: Its compact size allows easy integration into various industrial control systems.

Applications:

The PM860AK01 3BSE066495R1 processor unit is perfect for industrial automation tasks, including control and data processing for large-scale manufacturing systems, energy management, and infrastructure applications. Its fast processing speed, compact size, and memory backup functionality make it an excellent choice for systems that require high reliability and continuous operation.
