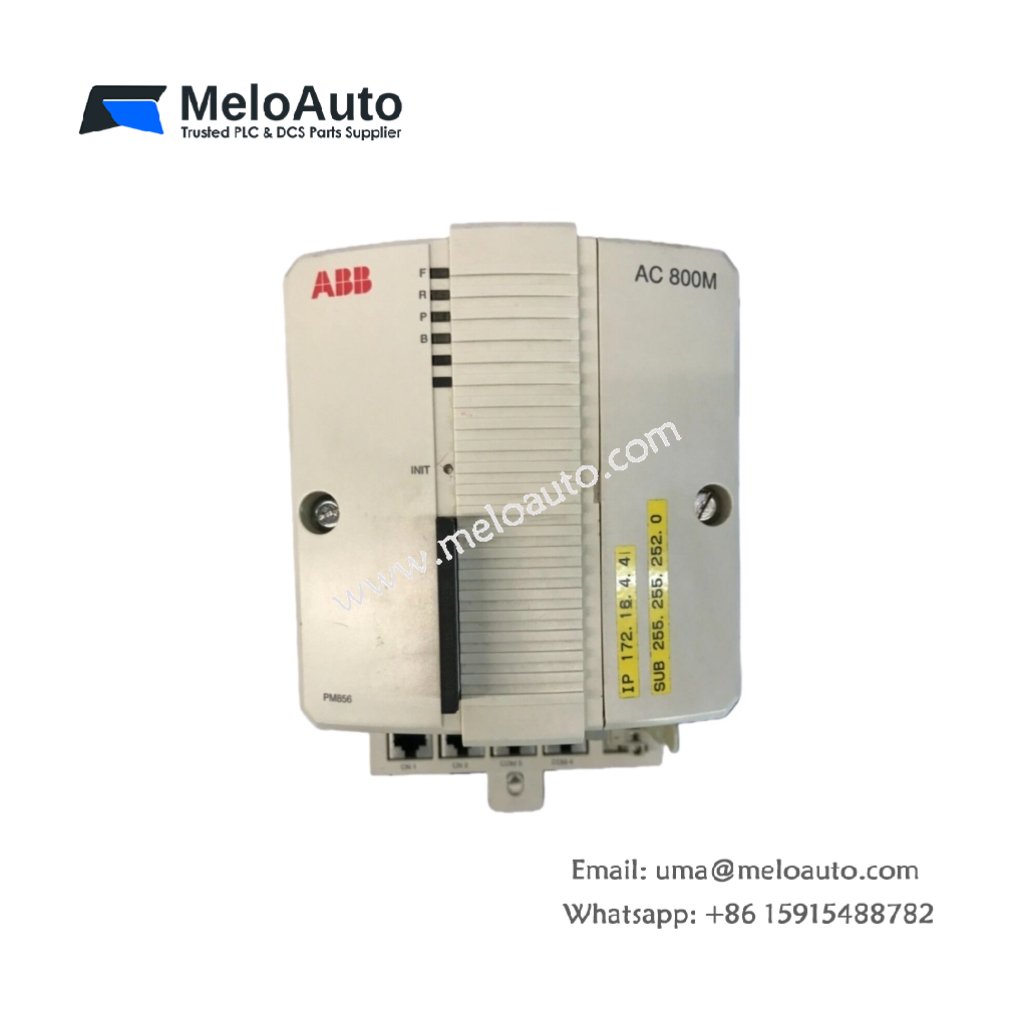

ABB PM856K01 3BSE018104R1 Processor Unit Kit

The ABB PM856K01 3BSE018104R1 Processor Unit Kit is designed for use with the AC 800M series control system. This module serves as the central processing unit (CPU) and plays a vital role in supporting both redundant and non-redundant configurations. It is essential for data processing and executing control strategies in industrial automation applications, providing robust and reliable control for complex systems.

Key Components:

• PM856 CPU
• TP830 Baseplate
• TB850 CEX Bus Terminator
• TB807 ModuleBus Terminator
• Memory Backup Battery

Technical Specifications:

• Model: PM856K01 3BSE018104R1
• Processor Type: AC 800M Processor
• Redundancy: Supports both redundant and non-redundant configurations
• Power Supply: 24 V DC (Voltage range: 19.2 – 30 V DC)
• Power Consumption: 180 mA (typical), 300 mA (maximum)
• Memory: Flash memory for storage
• Backup Battery: Included for memory retention
• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

Physical Dimensions:

• Dimensions (L x W x H): 12.7 cm x 20.3 cm x 12.7 cm (5.0″ x 8.0″ x 5.0″)
• Weight: 0.9 kg (1 lb 16 oz)

Functionality:

The PM856K01 Processor Unit processes critical data and executes control strategies for the AC 800M system. It enables efficient control over industrial processes, making it suitable for both small and large-scale automation tasks. The PM856K01 is particularly valuable in applications requiring high system reliability, as it supports redundancy configurations for backup in case of failure.

Applications:

The PM856K01 3BSE018104R1 Processor Unit Kit is ideal for industries such as manufacturing, energy, and infrastructure, where high reliability and continuous control are critical. By enabling both redundant and non-redundant configurations, this processor module provides flexibility for a wide range of automation tasks.
