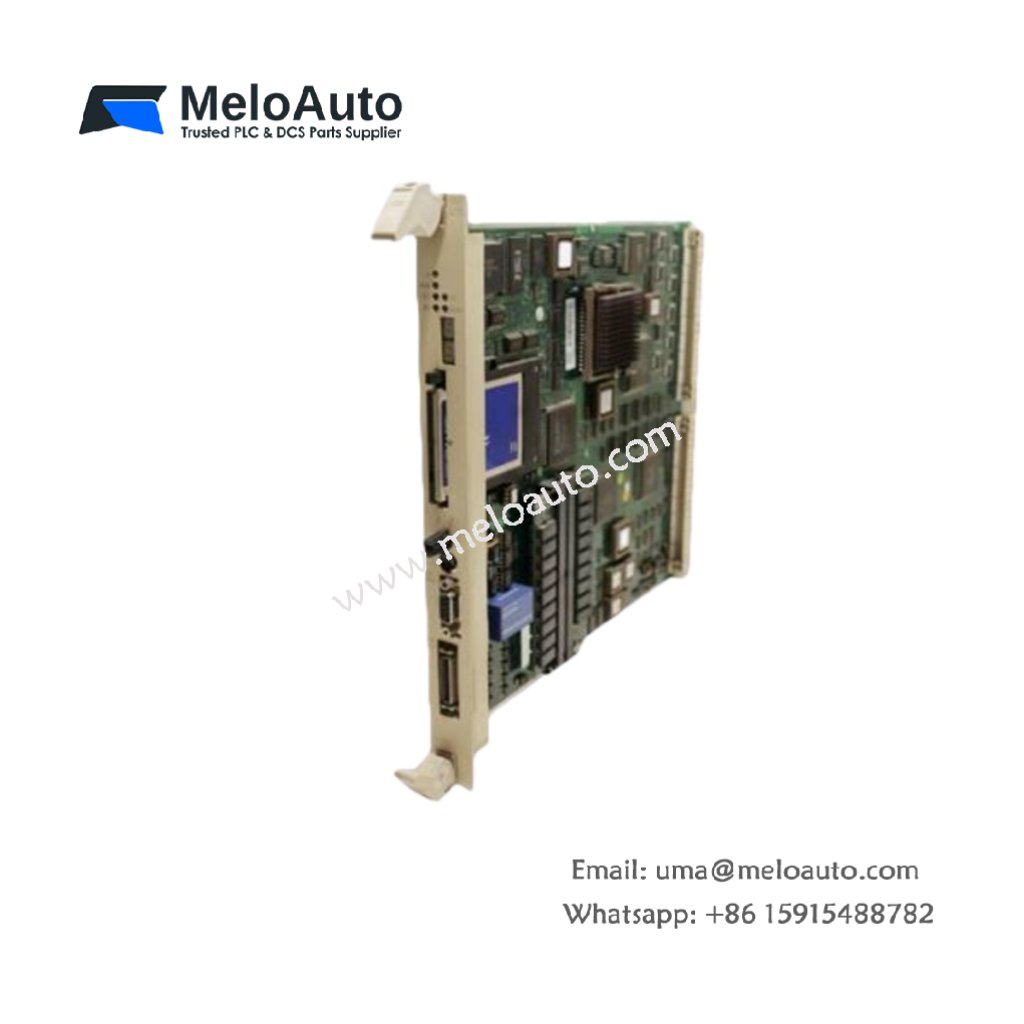

ABB PFUK104 YM110001-SD Signal Processing Board

Overview

The ABB PFUK104 YM110001-SD is a high-performance signal processing board, specifically designed for use in Millmate rollforce measurement systems. Ideal for heavy plate mills, this board is a crucial component in the PFVi00 series. It efficiently interfaces with load cells, ensuring precise signal conditioning and reliable data transmission for accurate roll force measurements.

Key Features

Model: PFUK104
Product ID: YM110001-SD
Function: Signal processing for roll force measurement
Channels: Dual-channel signal input
Application: Designed for use with the Millmate system, including SSAB Oxelosund heavy plate mills
Mounting Options: Can be rack-mounted or panel-mounted in control cabinets
Country of Origin: Sweden

Technical Specifications

Specification	Details
Input Type	Analog signals from PFVL101 sensors
Output Type	Conditioned signal for system integration
Weight	0.65 kg
Dimensions	178 mm x 51 mm x 178 mm
Mounting	Rack-mounted or panel-mounted
Frame Size	Compatible with Spare_Parts classification
Customs Tariff Number	85389091
WEEE Category	Not in WEEE scope

Applications

Millmate Rollforce Systems: The ABB PFUK104 YM110001-SD is essential for Millmate roll force measurement systems in industries like steel and heavy manufacturing.
Heavy Plate Mills: It is particularly useful in heavy plate mills such as those used at SSAB Oxelosund, where precise roll force data is crucial for accurate production.
