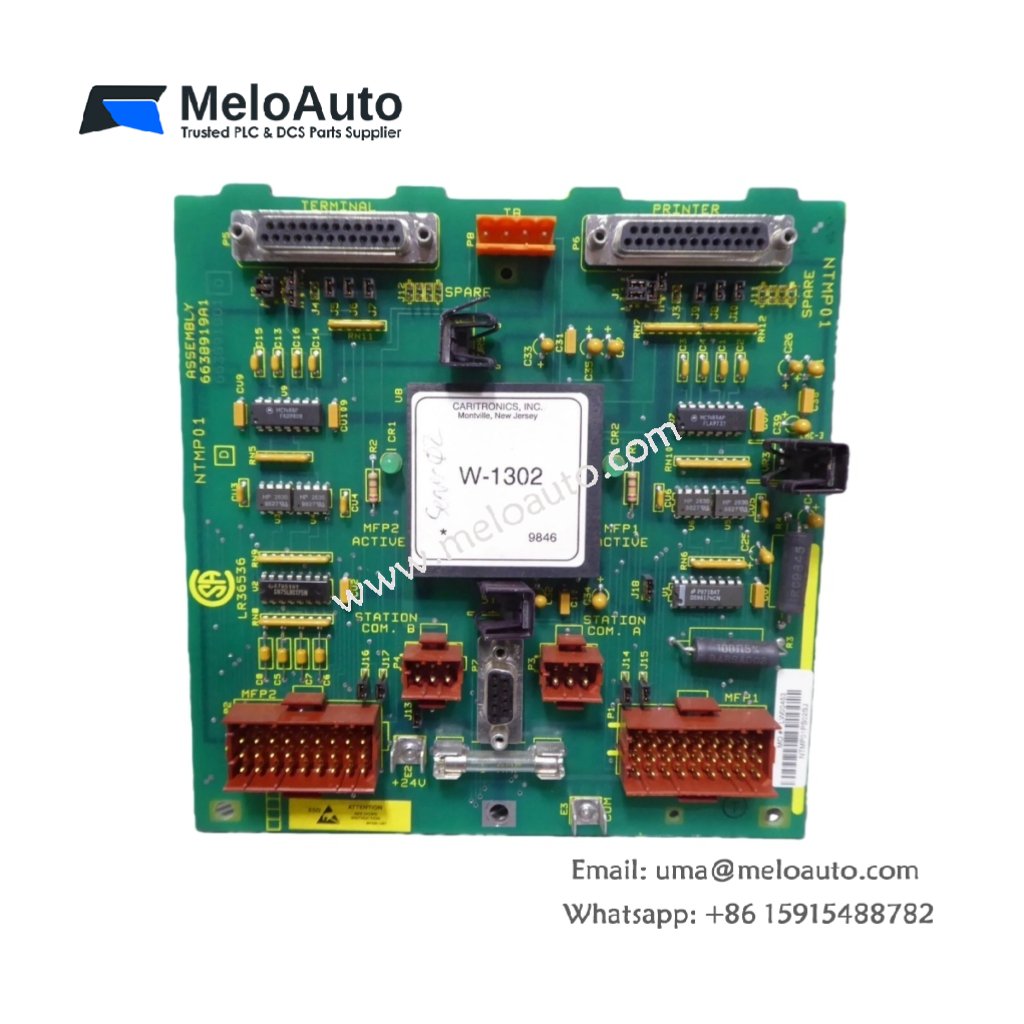

ABB NTMP01 Multi-Function Processor Termination Unit

The ABB NTMP01 Multi-Function Processor Termination Unit is engineered for flexible and reliable signal management in industrial automation systems. This termination unit ensures seamless communication between various control and field devices, enhancing the functionality and performance of automation setups. It can be used with multiple ABB devices such as BRC, MFP, IET, ICT, and NKTU, ensuring optimal connectivity in demanding environments.

Key Features and Benefits

The ABB NTMP01 supports two RS-232-C serial ports or a combination of one RS-232-C port and one RS-485 port. This provides versatile communication options, making it easy to connect with different industrial control systems. Additionally, it includes a control station serial link for streamlined communication with other devices.

The NTMP01 is compatible with a wide range of cables. It supports PVC-insulated cables (UL Rating CL2) with a temperature rating of 80°C (176°F) at 300 V and non-PVC cables (UL Rating PLTC) with a temperature rating of 90°C (194°F) at 300 V. This ensures reliable performance even under varying environmental conditions.

Furthermore, the NTMP01 is designed for easy installation and requires no additional cooling when used in Bailey cabinets within the specified environmental limits. Its compact design makes it ideal for installation in tight spaces, providing a reliable and cost-effective solution for signal termination in industrial settings.

Technical Specifications

Parameter	Specification
Model Number	NTMP01
Product Type	Multi-Function Processor Termination Unit
Manufacturer	ABB
Communication Ports	Two RS-232-C serial ports or one RS-232-C and one RS-485 port, One control station serial link
Cable Insulation	PVC (UL Rating CL2) 80°C at 300 V, Non-PVC (UL Rating PLTC) 90°C at 300 V
Electromagnetic/Radio Frequency Interference	Values not available. Keep cabinet doors closed and keep communication equipment at least 2 meters from the cabinet.
Cooling Requirements	No cooling required when used in Bailey cabinets, within environmental limits
Operating Temperature Range	0° to 70°C (32° to 158°F)
Relative Humidity	5% to 90% up to 70°C (158°F) (non-condensing)
Weight	0.3 kg
Dimensions	2.5 kg + 1 kg

Performance and Reliability

The ABB NTMP01 ensures stable operation in environments with temperatures ranging from 0° to 70°C (32° to 158°F). With a relative humidity range of 5% to 90% (non-condensing), it is suitable for a variety of industrial applications. The unit’s compact size and low weight of 0.3 kg make it easy to integrate into control systems without taking up much space.

Its robust design ensures long-lasting performance in harsh industrial environments. The unit’s electromagnetic and radio frequency interference values are not specified, but it is important to keep communication equipment at least 2 meters away from the cabinet to maintain optimal performance.

Applications

The ABB NTMP01 is ideal for signal termination in industrial systems. It works seamlessly with systems such as BRC, MFP, IET, ICT, and NKTU. Common applications include automation control systems, data acquisition systems, and communication networks in industries like manufacturing, energy, and automotive. Its versatile communication options make it a reliable choice for modern industrial control systems.
