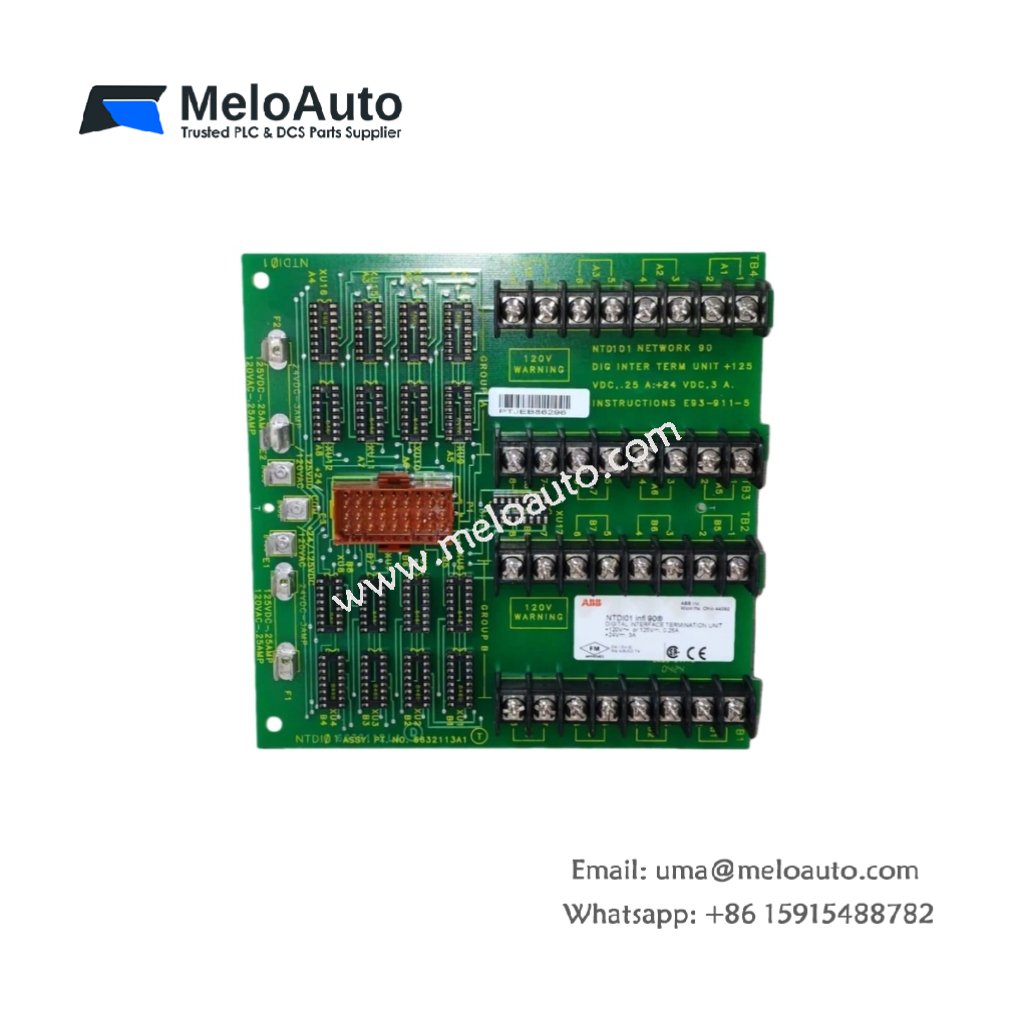

ABB NTDI01 Terminal Board – Secure Electrical Connections

The ABB NTDI01 Terminal Board is engineered to provide secure and efficient electrical connections in industrial automation systems. This terminal board ensures stable performance and easy integration into existing setups. Its design prioritizes durability, making it ideal for demanding environments where reliability is crucial.

Key Features and Benefits

The ABB NTDI01 Terminal Board delivers secure and stable electrical connections. It minimizes the risk of connection faults, ensuring consistent system performance. The NTDI01 effectively handles high currents while providing secure, organized terminals for multiple wires.

Furthermore, the NTDI01 is versatile and easy to install. You can mount it on a DIN rail or directly on a panel, offering flexibility for various applications. Clear terminal markings simplify the wiring process, making it easier to set up and troubleshoot systems.

Technical Specifications

Parameter	Specification
Model Number	NTDI01
Manufacturer	ABB
Type	Terminal Board
Voltage Rating	690V AC
Current Rating	24A
Number of Terminals	12
Material	High-quality insulating material
Dimensions (L x W x H)	90 x 60 x 50 mm
Weight	Approx. 0.2 kg
Mounting Type	DIN rail or panel mounting
Temperature Range	-20°C to +70°C
Standards Compliance	UL, CE Certified

Performance and Reliability

The ABB NTDI01 Terminal Board operates efficiently within a wide temperature range of -20°C to +70°C. Its 690V AC voltage rating and 24A current rating make it suitable for a wide range of industrial applications. You can rely on it for heavy-duty power distribution in critical systems.

Moreover, the NTDI01 utilizes high-quality materials for long-lasting performance. It supports 12 terminals, providing ample space for organizing complex electrical connections. The DIN rail and panel mounting options allow for easy integration into existing systems, ensuring a smooth installation process.

Applications

The ABB NTDI01 Terminal Board is ideal for use in industrial automation systems, control panels, and power distribution networks. It is well-suited for applications in industries such as manufacturing, energy, and transportation. The NTDI01 integrates seamlessly with other ABB control systems and components, ensuring reliable system operation.
