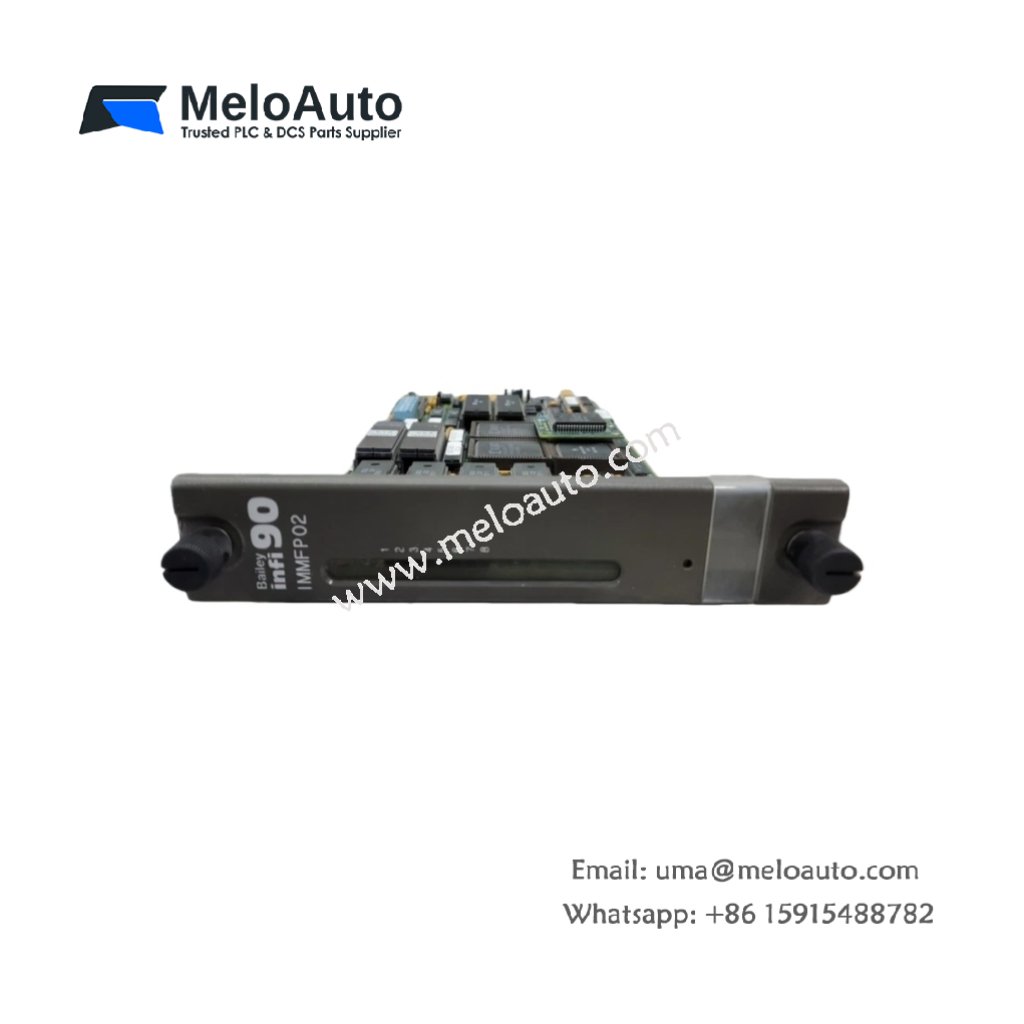

ABB IMMFP02 Multifunction Processor

The ABB IMMFP02 Multifunction Processor is designed to handle demanding industrial control applications. It offers advanced data acquisition capabilities, robust communication options, and a reliable microprocessor for continuous operation. With its flexible configuration and support for multiple communication protocols, the ABB IMMFP02 seamlessly integrates into existing systems. Whether in process control or automation, this processor ensures efficient performance and high reliability.

Key Features of the ABB IMMFP02 Multifunction Processor

Advanced Data Acquisition: The ABB IMMFP02 enables complex control strategies through its sophisticated data acquisition capabilities. This makes it ideal for advanced industrial applications.
Versatile Programmability: It supports various programming languages, including Function Codes, C, Basic, Batch 90, Ladder, and user-defined functions. This flexibility enhances programming versatility for different needs.
Redundant Communication Link: The processor offers a reliable 1Mbaud serial communication link, ensuring robust and uninterrupted communication in critical operations.
Flexible Configuration: The ABB IMMFP02 integrates seamlessly into existing systems, supporting a wide range of communication protocols for flexibility in diverse applications.
High Reliability: Built for continuous operation in harsh industrial environments, this processor ensures long-lasting performance with minimal downtime.

Technical Specifications of the ABB IMMFP02 Multifunction Processor

Specification	Details
Input Voltage	+5V DC
Power Dissipation	10W maximum
Microprocessor	32-bit processor (16-bit external bus) at 16 MHz
Memory	256 kB ROM, 256 kB RAM, 64 kB NVRAM
Dimensions (W x H x L)	35.56 mm x 177.80 mm x 298.45 mm
Mounting	Fits one slot in standard Infi 90 OPEN module
Communication Ports	Two RS-232-C ports, or one RS-485 and one RS-232-C port
Operating Temperature	0°C to 70°C (32°F to 158°F)
Relative Humidity	5% to 95% up to 55°C (131°F), non-condensing
Atmospheric Pressure	Sea level to 3 km (1.86 mi)
Certification	CSA and FM Certified for process control equipment in nonhazardous locations

Applications of the ABB IMMFP02 Multifunction Processor

Process Control: The ABB IMMFP02 excels in process control systems, managing complex control tasks efficiently and reliably.
Automation: This processor is ideal for industrial automation, providing the necessary processing power for automation systems requiring high performance and flexibility.
Data Acquisition: The advanced data acquisition capabilities of the ABB IMMFP02 make it suitable for industries that require precise data collection and analysis.

Why Choose the ABB IMMFP02 Multifunction Processor?

The ABB IMMFP02 Multifunction Processor offers exceptional versatility, reliability, and performance. With its sophisticated data acquisition features, it can handle complex industrial tasks with ease. Additionally, the processor’s flexibility in configuration and communication makes it a suitable choice for various industrial environments. For efficient, high-performance control in demanding applications, the ABB IMMFP02 is an excellent solution.
