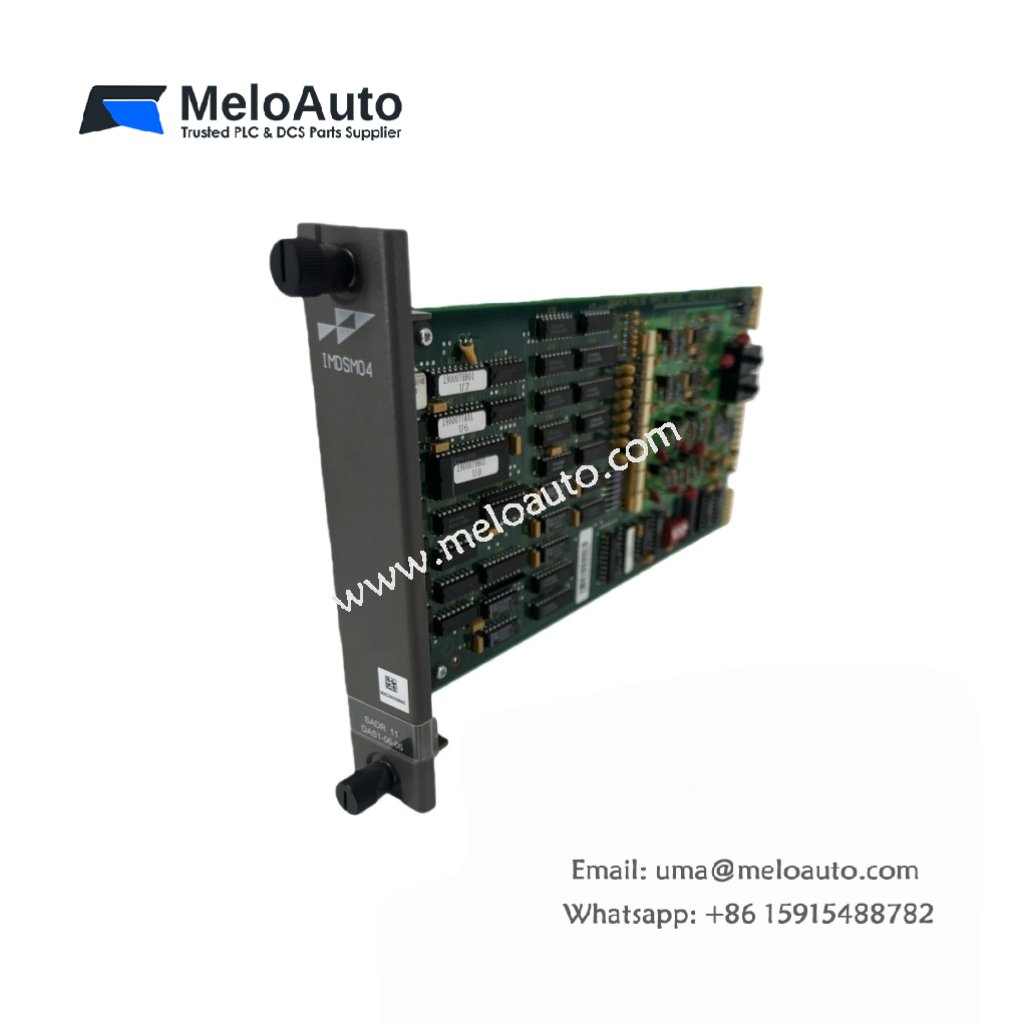

ABB IMDSM04 Pulse Input Slave Module

The ABB IMDSM04 Pulse Input Slave Module is engineered to monitor various types of pulse signals with high precision. It integrates seamlessly with ABB’s Infi 90 system, making it an excellent choice for industrial automation. By offering enhanced performance and reliability, it meets the needs of complex control environments.

Key Features of the ABB IMDSM04 Pulse Input Slave Module

Efficient Pulse Signal Monitoring: The module effectively tracks pulse signals across a wide frequency range, ensuring accurate data collection.
Seamless System Integration: Fully compatible with the ABB Infi 90 system, this module supports quick and easy integration into your existing setup.
Low Power Consumption: It operates with minimal power draw, ensuring energy efficiency while maintaining reliable performance.

Technical Specifications of the ABB IMDSM04 Pulse Input Slave Module

Specification	Details
Model	ABB IMDSM04
Power Supply	5 VDC Logic Supply (±5%), 24 VDC I/O Supply (+12%, -10%)
Current Consumption (5 VDC)	1.4 Amps typical, 1.5 Amps maximum
Current Consumption (24 VDC)	62mA typical, 70mA maximum
Input Voltage Range (5 VDC Supply)	4.0 VDC to 6.0 VDC
Input Voltage Range (24 VDC Supply)	21.6 VDC to 27.0 VDC
Input Voltage Range (Preamplifiers)	50 mV (peak-to-peak) to 10 V (peak-to-peak)
Max Input Signal Current at Max Input Voltage	14.8 mA at 6 VDC (Range 1), 8.4 mA at 24 VDC (Range 2), 0.4 mA at 10 V peak-to-peak (Range 3)
Logic 1 Input Voltages (Range 1)	4.0 VDC minimum, 6.0 VDC maximum
Logic 1 Input Voltages (Range 2)	21.6 VDC minimum, 27.0 VDC maximum
Logic 1 Input Voltages (Range 3)	25.0 mV peak minimum, 5 V peak maximum
Logic 0 Input Voltages (Range 1)	0 V minimum, 1.0 V maximum
Logic 0 Input Voltages (Range 2)	0 V minimum, 2.0 V maximum
Logic 0 Input Voltages (Range 3)	-5 V peak minimum, -25.0 mV peak maximum
Debounce Times	ON time: 8.5 ms (typical), OFF time: 8.5 ms (typical)
Input Signal Frequency Limit	40 Hz (upper frequency limit for debounce use)
Mode Accuracy	Totalize: t0 counts, Frequency Count: 1 count, Period Determination: 1 count

Applications of the ABB IMDSM04 Pulse Input Slave Module

Industrial Automation: The ABB IMDSM04 Pulse Input Slave Module offers exceptional performance in industrial control systems, providing precise pulse signal monitoring.
Reliable Real-Time Signal Processing: This module guarantees real-time monitoring, ideal for applications where accurate pulse signal processing is critical.
Versatile for Different Input Frequencies: The module’s ability to handle a variety of input frequencies enhances its versatility for a wide range of control applications.

Why Choose the ABB IMDSM04 Pulse Input Slave Module?

By offering reliable pulse signal monitoring and accurate data collection, the ABB IMDSM04 Pulse Input Slave Module stands out in the field of industrial automation. Its low power consumption, advanced debounce features, and easy integration with ABB’s Infi 90 system make it an excellent choice for complex control environments.

Conclusion

The ABB IMDSM04 Pulse Input Slave Module is a highly efficient and reliable module designed for industrial automation. Its robust technical specifications, seamless system compatibility, and low energy consumption make it the ideal solution for a variety of industrial applications
