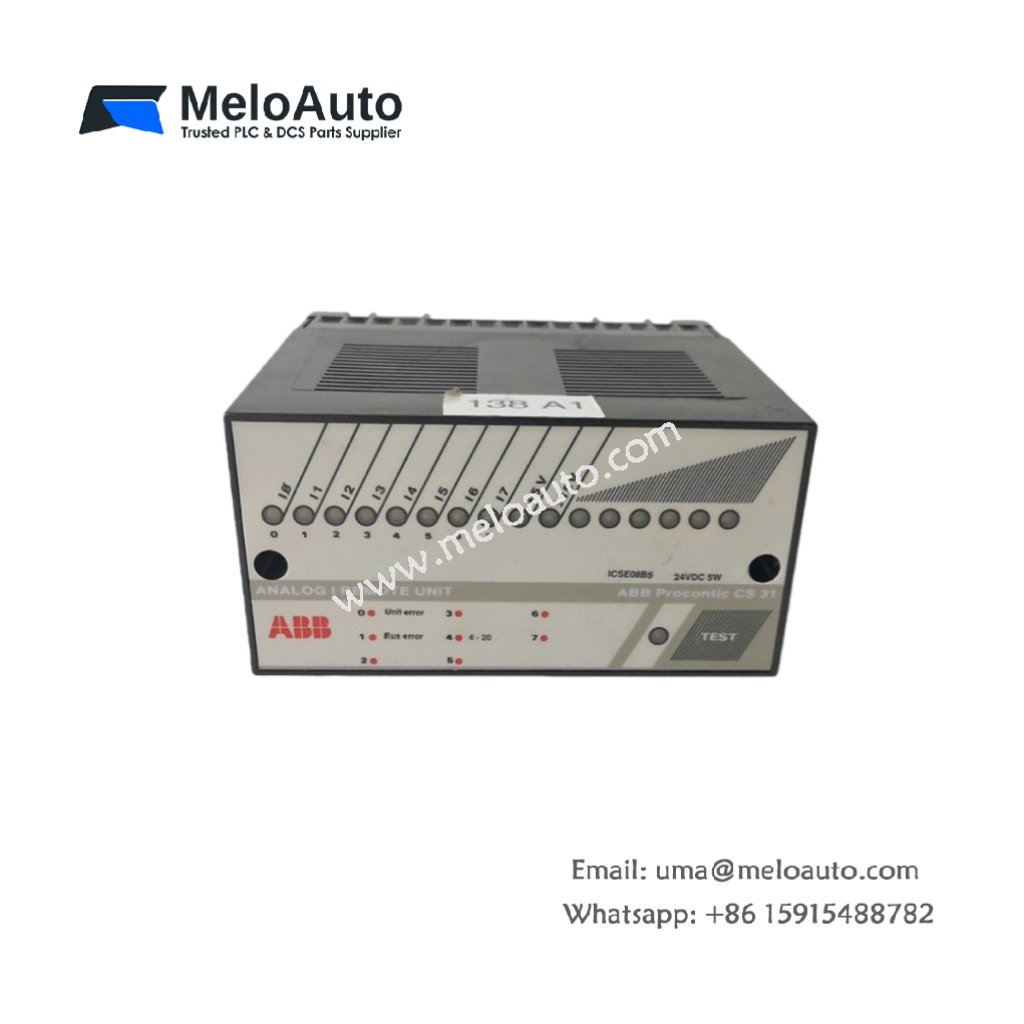

ABB ICSE08B5 FPR3346501R1012 Analog I/O Module

Overview of ABB ICSE08B5 FPR3346501R1012

The ABB ICSE08B5 FPR3346501R1012 Analog I/O module is designed for advanced industrial automation systems. It provides precise analog input and output capabilities, ensuring smooth integration into control systems. As part of ABB’s trusted ICSE series, it delivers exceptional reliability and performance, making it ideal for various industrial applications.

Key Features

Type: Analog I/O Module
Manufacturer: ABB
Interface: Supports multiple industrial communication protocols for seamless integration
Input Channels: 8 input channels for analog signals (configurable voltage or current)
Output Channels: 8 output channels for analog signals (configurable voltage or current)
Dimensions: 140mm (W) x 120mm (H) x 35mm (D)
Weight: 0.7 kg
Power Supply: 24 V DC, with a tolerance of ±10%
Input Voltage Range: 0-10V, 4-20mA (configurable)
Output Voltage Range: 0-10V, 4-20mA (configurable)
Resolution: 12-bit or 16-bit precision
Operating Temperature Range: -10°C to 60°C
Protection: Overvoltage, overcurrent, and thermal protection to ensure safe operation

Technical Specifications

Specification	Value
Product Model	ICSE08B5 FPR3346501R1012
Input Channels	8 (configurable voltage/current)
Output Channels	8 (configurable voltage/current)
Input Voltage Range	0-10V, 4-20mA (configurable)
Output Voltage Range	0-10V, 4-20mA (configurable)
Resolution	12-bit or 16-bit
Power Supply	24V DC
Dimensions (W x H x D)	140mm x 120mm x 35mm
Weight	0.7 kg
Operating Temperature	-10°C to 60°C
Protection	Overvoltage, overcurrent, thermal protection

Applications

The ABB ICSE08B5 FPR3346501R1012 is ideal for use in a range of industrial processes, including:

Process control and monitoring systems
Automation and machine control systems
Feedback loops in manufacturing environments
Data acquisition systems requiring analog inputs and outputs

Why Choose ABB ICSE08B5 FPR3346501R1012?

The ABB ICSE08B5 FPR3346501R1012 Analog I/O module ensures high precision and reliability, enabling smooth operation in demanding industrial environments. Its flexible input and output ranges, combined with robust protection features, make it an excellent choice for industries needing reliable signal management.
