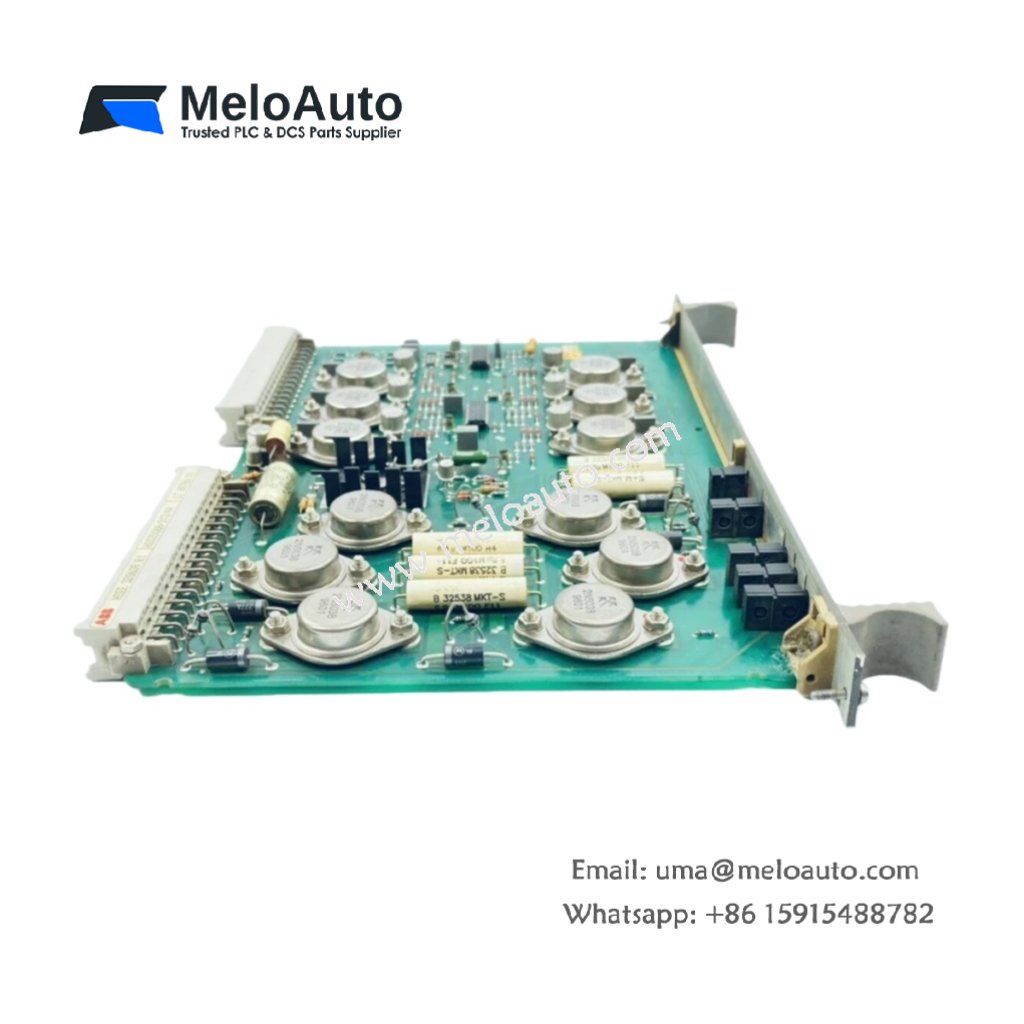

ABB HIEE320639R1 HI024049-313 LT 8978B V1 Pulse Amplifier

The ABB HIEE320639R1 HI024049-313 LT 8978B V1 pulse amplifier is designed for precision signal amplification in industrial automation systems. With its robust construction and efficient performance, this module ensures reliable signal processing in high-demand environments. It is an ideal choice for applications that require accurate and stable pulse amplification.

Key Features

Manufacturer: ABB
Category: Pulse Amplifier
Interface: Standard industrial I/O for easy integration
Application: Optimized for signal amplification in control and automation systems
Mounting: Compatible with standard mounting systems for flexible installation
Weight: Lightweight, making it easy to handle and install in various environments

Technical Specifications

Parameter	Details
Input Voltage	24 VDC ± 10%
Output Voltage	5 VDC ± 5%
Rated Current	2 A
Power Consumption	15 W
Frequency Range	50 Hz to 200 kHz
Operating Temperature	-20°C to 70°C
Dimensions (L x W x H)	160 mm x 120 mm x 70 mm
Weight	0.5 kg
Energy Storage	Capacitors for short-duration backup
Mounting Type	DIN rail
Number of Inputs/Outputs	1 input / 1 output
Efficiency	92%

The ABB pulse amplifier efficiently handles signal amplification tasks. It supports input voltages of 24 VDC with a stable 5 VDC output, making it suitable for various control systems. The module operates within a wide frequency range, from 50 Hz to 200 kHz, ensuring precise performance across diverse industrial applications.

Why Choose the ABB HIEE320639R1 HI024049-313 LT 8978B V1 Pulse Amplifier?

High Efficiency: With an efficiency of 92%, this module optimizes energy usage, reducing overall system costs.
Wide Frequency Range: The unit supports a broad frequency range, providing versatility for different industrial applications.
Compact and Durable: Measuring just 160 mm x 120 mm x 70 mm, the amplifier fits into tight spaces while ensuring reliable performance.
Reliable Backup: Equipped with capacitors, it ensures minimal downtime by offering short-term backup during power interruptions.

The ABB HIEE320639R1 HI024049-313 LT 8978B V1 pulse amplifier delivers precise signal amplification, making it a dependable choice for industrial systems requiring accurate pulse control.
