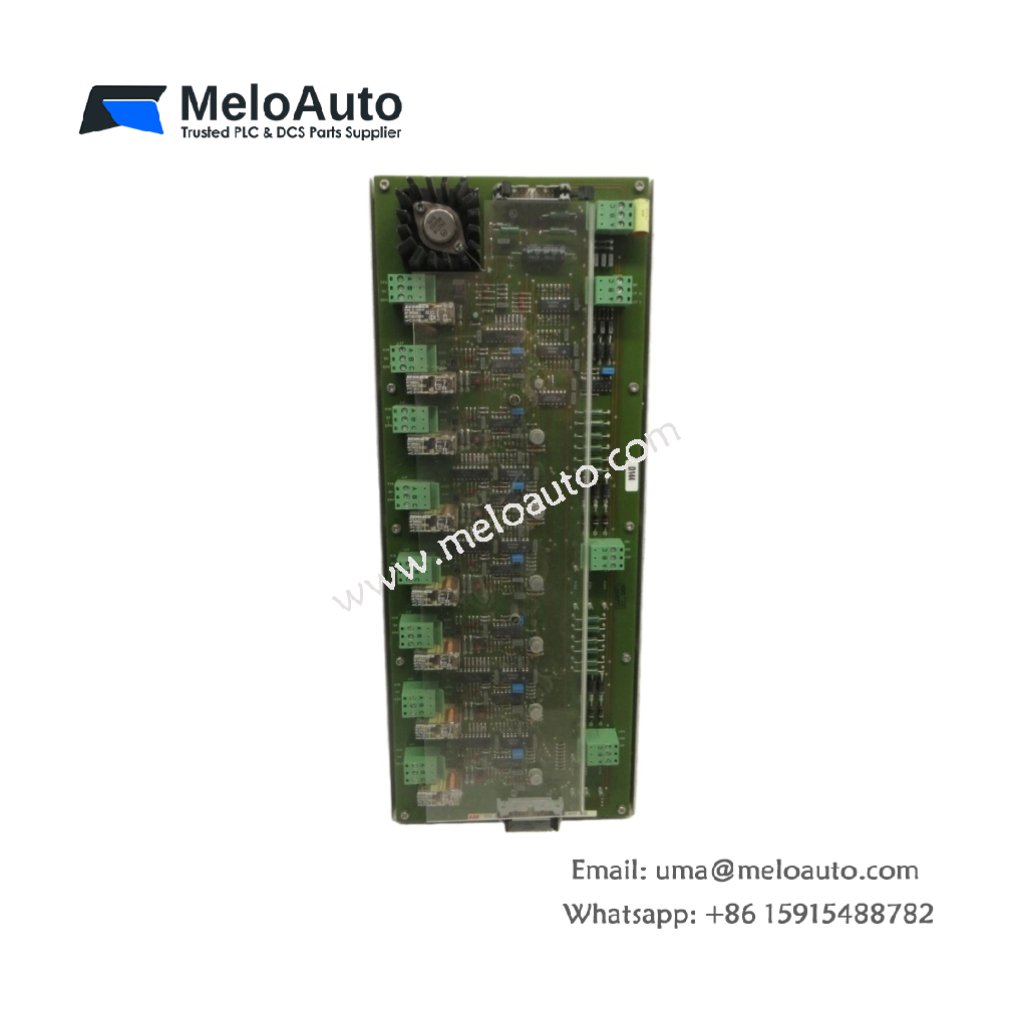

ABB HIEE200072R2 USB030AE02 Power Supply Module

The ABB HIEE200072R2 USB030AE02 is a high-performance power supply module, designed and manufactured by ABB, a world leader in industrial automation and electrification technologies. This module is part of the HIEE2000 series, known for providing reliable solutions in industrial control and automation systems. It efficiently powers critical components, ensuring smooth operation in various industrial applications.

Key Features

Model: HIEE200072R2 USB030AE02
Category: Power Supply Module
Manufacturer: ABB

Technical Specifications

Parameter	Value
Function	Power Supply Module
Output Voltage	24 VDC
Current Output	3 A (Typical)
Input Voltage	100-240 VAC, 50/60 Hz
Power Consumption	Max 72 W
Mounting Type	DIN Rail Compatible
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% RH, non-condensing
Dimensions	14 cm x 8 cm x 5 cm
Weight	0.6 kg

The HIEE200072R2 USB030AE02 power supply module provides a stable 24 VDC output, capable of delivering up to 3 A. This makes it ideal for powering industrial components such as sensors, motors, and controllers. With an input voltage range of 100-240 VAC, it is adaptable to various power sources, ensuring flexibility in diverse environments.

This module is compatible with DIN rail mounting, simplifying installation and integration into industrial control systems. Its compact size (14 cm x 8 cm x 5 cm) and lightweight design (0.6 kg) ensure space efficiency and ease of handling during setup.

Applications

The HIEE200072R2 USB030AE02 power supply module is well-suited for the following applications:

Industrial Control Systems: It powers motors, sensors, controllers, and other critical devices in automation processes.
Building Management Systems: It supplies power to essential equipment in building automation, including HVAC systems, lighting, and security devices.

Benefits

Reliable Power Supply: Ensures consistent voltage and current delivery for critical industrial components.
Wide Compatibility: Suitable for use in industrial control systems and building management systems.
Compact and Efficient: The small form factor and easy DIN rail mounting reduce installation time and space requirements.
Robust Performance: Operates effectively in environments with temperatures ranging from -20°C to +60°C.
