ABB HESG448230R1 HE010207-306/40 216EA61B Module

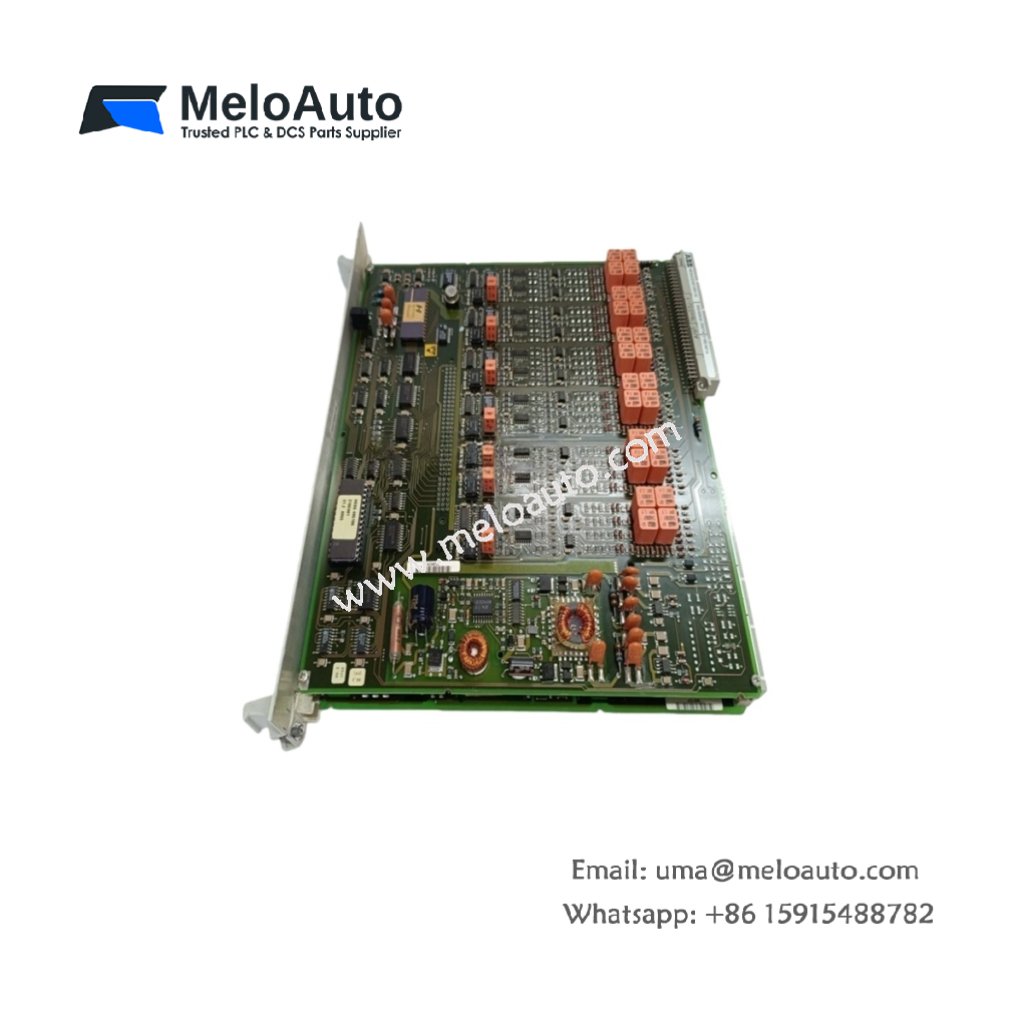

The ABB HESG448230R1 HE010207-306/40 216EA61B bus transmitter module is designed for seamless communication within the PRoCONTRoL-P system. It ensures reliable and isolated data exchange between the PRoCONTROL-PS protection system and the main control system. By converting analog signals into digital form, the module supports accurate data acquisition and efficient industrial data transmission.

Key Features

Model: HESG448230R1 HE010207-306/40 216EA61B
Category: Bus Transmitter Module
Manufacturer: ABB

Technical Specifications

Parameter	Value
Function	Bus Transmitter Module
Input Voltage	24 VDC ±10%
Power Consumption	Less than 4 W
Communication Protocol	Modbus RTU or system-specific protocols
Data Rate	9600 to 115200 bps
Digital I/O	Configurable digital inputs and outputs
Analog I/O	Supports 0-10 V and 4-20 mA signal ranges
Mounting Type	DIN Rail Compatible
Protection Class	IP20
Operating Temperature	-20°C to +60°C (typically 0°C to 60°C)
Storage Temperature	-40°C to +85°C
Relative Humidity	5% to 95% RH, non-condensing
Dimensions	20.3 cm x 17.8 cm x 5.1 cm
Weight	0.28 kg

The module features a compact design, measuring 20.3 cm x 17.8 cm x 5.1 cm, and weighs only 0.28 kg. This compact size simplifies installation and integration into existing setups.

Thanks to its wide operating temperature range of -20°C to +60°C, the module performs reliably in demanding industrial environments. Additionally, it can withstand storage temperatures from -40°C to +85°C. The HESG448230R1 HE010207-306/40 216EA61B also supports both analog and digital input/output configurations, including 0-10 V and 4-20 mA signal ranges, making it versatile for various industrial applications.

Applications

The HESG448230R1 HE010207-306/40 216EA61B is an excellent choice for industrial automation systems, process control, and other critical applications where precise signal conversion and reliable data transmission are essential. Its robust design ensures consistent operation under challenging conditions.
