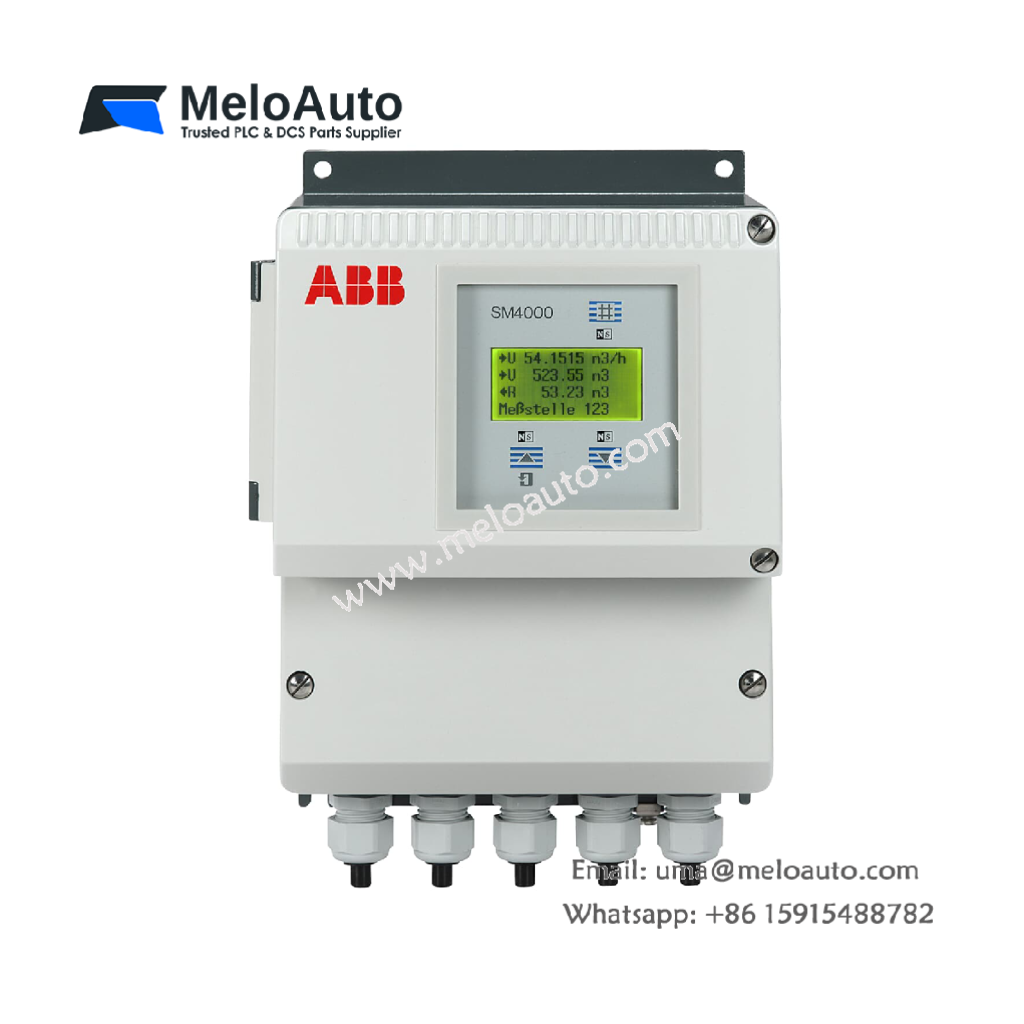

ABB FSM4000 Electromagnetic Flowmeter

Product Description:

The ABB FSM4000 is an advanced electromagnetic flowmeter designed to measure the flow of conductive liquids. It is known for its high accuracy and reliability in various industrial applications, including water and wastewater treatment, chemical processing, and food and beverage industries. The FSM4000 combines a rugged design with cutting-edge technology to ensure precise flow measurement in challenging environments.

The electromagnetic principle of operation allows the FSM4000 to accurately measure flow without any moving parts, making it ideal for applications where low maintenance is required. It is designed for high-performance flow measurement, offering outstanding reliability in harsh conditions, including high pressures, temperatures, and the presence of aggressive chemicals.

Key Features:

• No moving parts: Ensures high accuracy, reliability, and minimal maintenance.

• Highly accurate: Offers excellent precision for both low and high flow rates.

• Wide range of applications: Suitable for a variety of conductive liquids, including aggressive chemicals, wastewater, and slurries.

• Integrated diagnostics: Provides real-time diagnostics to ensure optimal operation and reduce downtime.

• Modular design: Easy to install, configure, and maintain.

• Communication protocols: Supports multiple communication protocols, such as HART, Modbus, and Profibus.

• Flexible installation: Can be installed in various orientations (horizontal, vertical).

Technical Specifications:

• Flow measurement principle: Electromagnetic (Faraday’s Law)

• Accuracy: ±0.2% of the measured value (typical)

• Measuring range:

  • Flow velocity: 0.1 m/s to 12 m/s (depending on pipe size)

  • Pipe size: DN 10 to DN 4000

• Flow direction: Bidirectional

• Materials of construction:

  • Electrodes: Hastelloy, Titanium, Stainless Steel, or other materials depending on the application.

  • Liner: PTFE, rubber, or other materials suitable for different media.

• Temperature range:

  • Process temperature: -20°C to 130°C (up to 180°C with high-temperature version)

  • Ambient temperature: -20°C to 60°C

• Pressure rating:

  • Up to 16 bar (higher pressure options available)

• Electrical output:

  • 4-20 mA (current output)

  • Pulse output

• Power supply: 24 V DC

• Display: Optional local display for flow rate and diagnostics

• Approvals: CE, UL, and others (depending on region and industry)

• Protection class: IP67 or IP68 (depending on configuration)

• Communications: HART, Modbus, Profibus, and other protocols (optional)

Applications:

• Water and wastewater treatment

• Chemical processing

• Food and beverage industry

• Pulp and paper industry

• Mining and metals

• Oil and gas

Spare Parts for Transmitter

Transmitter Units

¹ Please specify communication version when ordering to ensure correct software is selected.

Other Transmitter Components

Spare Parts for Sensor – Terminal Box (Stainless Steel, DN 3 to DN 100)
