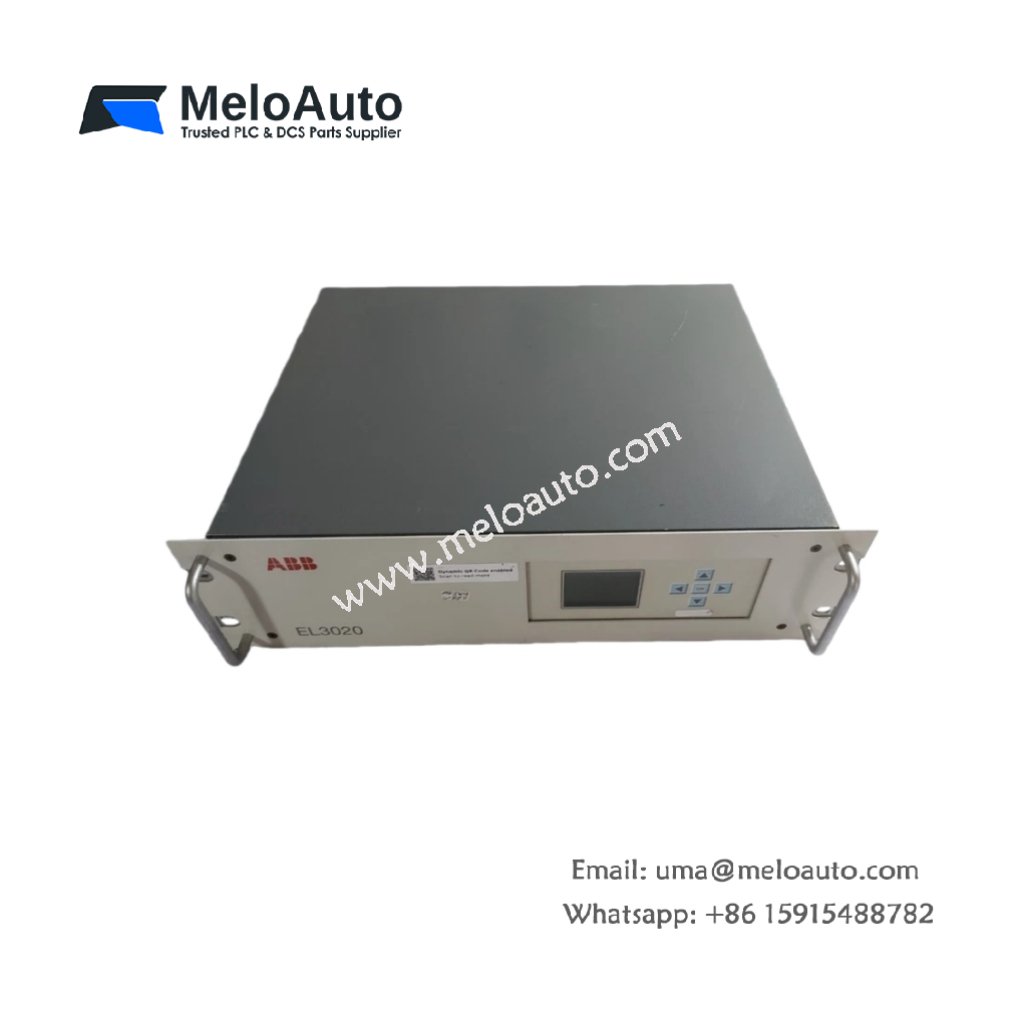

ABB EL3020 Continuous Gas Analyzer

The ABB EL3020 is a highly reliable and versatile continuous gas analyzer designed for precise process and emission monitoring in industrial environments. This analyzer belongs to the EasyLine EL3000 series and is capable of measuring up to five gas components simultaneously. With advanced technologies, the ABB EL3020 ensures consistent, stable results, even in challenging operating conditions. Its automatic calibration and self-monitoring features make it an ideal choice for flammable gas measurement applications.

Key Features of the ABB EL3020 Continuous Gas Analyzer

Manufacturer: ABB
Model: EL3020
Series: EasyLine EL3000
Category: Continuous Gas Analyzer
Application: Industrial process and emission monitoring

Technical Specifications of the ABB EL3020 Gas Analyzer

The ABB EL3020 analyzer offers multiple measurement technologies to ensure high accuracy and performance. It measures up to five gas components using infrared, thermal conductivity, and electrochemical technologies. Below are the detailed technical specifications:

Specification	Value
Measurement Components	Up to 5 gases per analyzer
Measurement Technologies	– Uras26 Infrared Photometer (CO, NO, SO₂) – Magnos206 Oxygen Analyzer (O₂, in process gas) – Caldos27 Thermal Conductivity Analyzer (binary gas mixtures) – Electrochemical Oxygen Sensor (O₂, measurement)
Calibration	Automatic with pump and valve control
Communication Interfaces	Modbus, Profibus, RS485 (Modbus RTU)
Output Signal	4-20 mA analog output, digital options
Response Time (T90)	Approximately 15 seconds (varies by application)
Zero Drift	1.5% per day
Sensitivity Drift	1% per week
Output Fluctuation (2σ)	0.5% at T90 = 15s
Temperature Effects	– Zero-point shift: 0.02 vol.% O₂ per 10°C – Sensitivity shift: 0.1% per 10°C
Thermostat Temperature	Around 55°C or 64°C internally
Air Pressure Effect	Minimal on zero-point, internal correction for sensitivity
Housing	19-inch rack mount, IP20 protection
User Interface	Menu-driven with clear-text status messages
Power Supply	100-240 V AC, 50-60 Hz

Advantages of the ABB EL3020 Gas Analyzer

Multi-Gas Measurement: The ABB EL3020 can measure up to five gases simultaneously, providing comprehensive data for emissions and process monitoring.
Advanced Measurement Technologies: It incorporates a variety of technologies, including the Uras26 infrared photometer and Magnos206 oxygen analyzer, to ensure high-precision measurements.
Automatic Calibration: The device features automatic calibration with pump and valve control, eliminating manual intervention and improving operational efficiency.
Reliable Communication: It supports Modbus, Profibus, and RS485 (Modbus RTU) communication protocols, ensuring compatibility with various control systems.
Compact and Durable Design: The ABB EL3020 features a 19-inch rack mount housing with IP20 protection, ensuring durability in industrial environments.
User-Friendly Interface: The menu-driven user interface with clear-text status messages simplifies operation and troubleshooting.

Applications of the ABB EL3020 Continuous Gas Analyzer

The ABB EL3020 is designed for use in a wide range of industrial applications, including:

Process Monitoring: It ensures accurate gas measurements in industrial production processes, helping optimize operations and maintain safety standards.
Emission Monitoring: The analyzer supports regulatory compliance by providing real-time emissions data for environmental monitoring.
Flammable Gas Measurement: Its automatic calibration and self-monitoring features make it suitable for measuring flammable gases in critical environments.
Power and Energy Systems: The ABB EL3020 is also ideal for monitoring gas components in power generation and energy distribution systems.

Why Choose the ABB EL3020 Continuous Gas Analyzer?

Precision and Accuracy: The combination of multiple measurement technologies ensures the ABB EL3020 delivers precise and reliable results.
Ease of Use: With an intuitive menu-driven interface, the ABB EL3020 is easy to operate and maintain, even in demanding industrial settings.
Flexible Integration: It seamlessly integrates with existing automation systems, thanks to its extensive communication options, including Modbus, Profibus, and RS485.
Low Maintenance: Automatic calibration and self-monitoring reduce the need for frequent maintenance, improving long-term reliability.

Conclusion

For accurate and reliable gas measurement in industrial applications, the ABB EL3020 continuous gas analyzer is the ideal solution. With its advanced technologies, user-friendly interface, and robust design, it ensures efficient monitoring of up to five gas components simultaneously, making it a valuable tool for process and emission control.
