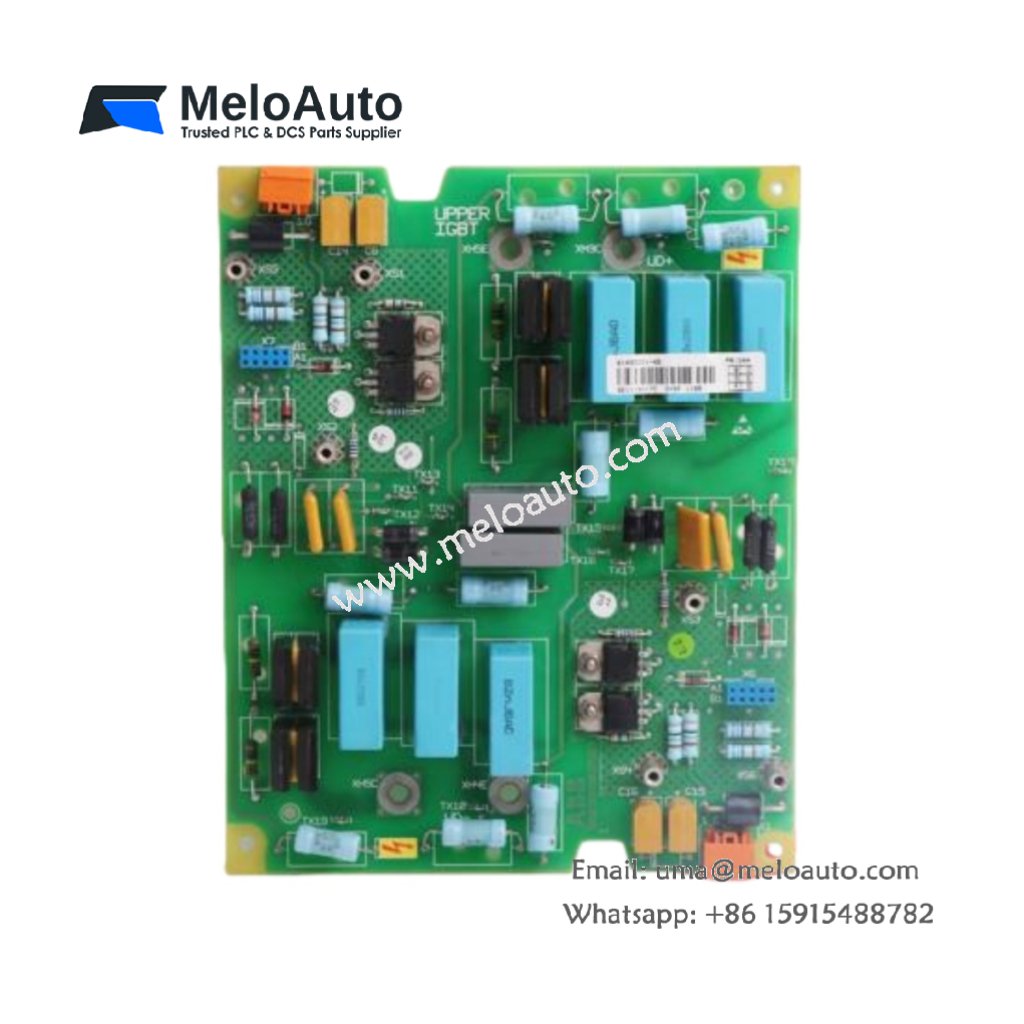

ABB DYSF118B 61430001-XG Industrial Control Module

The ABB DYSF118B 61430001-XG is a high-performance industrial control module designed for reliable monitoring and control in automation systems. This versatile module ensures stable operation and efficient performance, making it suitable for a wide range of industrial applications.

Key Features of the DYSF118B 61430001-XG

• Manufacturer: ABB
• Product Line: DYSF Series
• Part Number: DYSF118B 61430001-XG
• Type: Industrial Control Module
• Dimensions: 110 mm (W) x 130 mm (H) x 40 mm (D)
• Weight: 0.4 kg
• Input Voltage: 24 VDC
• Output Voltage: 24 VDC
• Current Rating per Channel: 0.5 A
• Maximum Channels: 8
• Total Output Current: 4 A
• Mounting Type: DIN Rail

Electrical Specifications

The DYSF118B 61430001-XG offers robust electrical features for efficient power distribution and control:

Physical Characteristics

The DYSF118B 61430001-XG module is designed for compact and efficient integration into industrial systems. With its lightweight and space-saving design, it offers easy installation and reliable performance in control applications.

• Dimensions: 110 mm (W) x 130 mm (H) x 40 mm (D)
• Weight: 0.4 kg

Advantages of the DYSF118B 61430001-XG

1. Stable Operation: The 24 VDC input and output ensure stable and consistent power delivery to your industrial system.
2. Efficient Power Distribution: With 8 channels and a total output current of 4 A, this module meets demanding power distribution requirements.
3. Compact Design: The module’s 110 mm x 130 mm x 40 mm dimensions make it suitable for installations in limited spaces.
4. Easy Integration: The DIN rail mounting option simplifies installation in control panels or automation racks.

Applications of the DYSF118B 61430001-XG

The ABB DYSF118B 61430001-XG industrial control module is ideal for various industrial automation applications, such as:

• Manufacturing Control Systems: Provides reliable control and monitoring for machines and automated production lines.
• Energy Distribution: Suitable for power distribution in industrial settings, optimizing energy usage.
• Process Automation: Facilitates precise control and monitoring of complex industrial processes.

Conclusion

The ABB DYSF118B 61430001-XG industrial control module offers reliable performance for demanding industrial applications. With 8 channels, 24 VDC input/output, and a 4 A total output current, it provides a flexible solution for automation and control systems. Its compact design and easy integration make it an excellent choice for a wide range of industrial environments.
