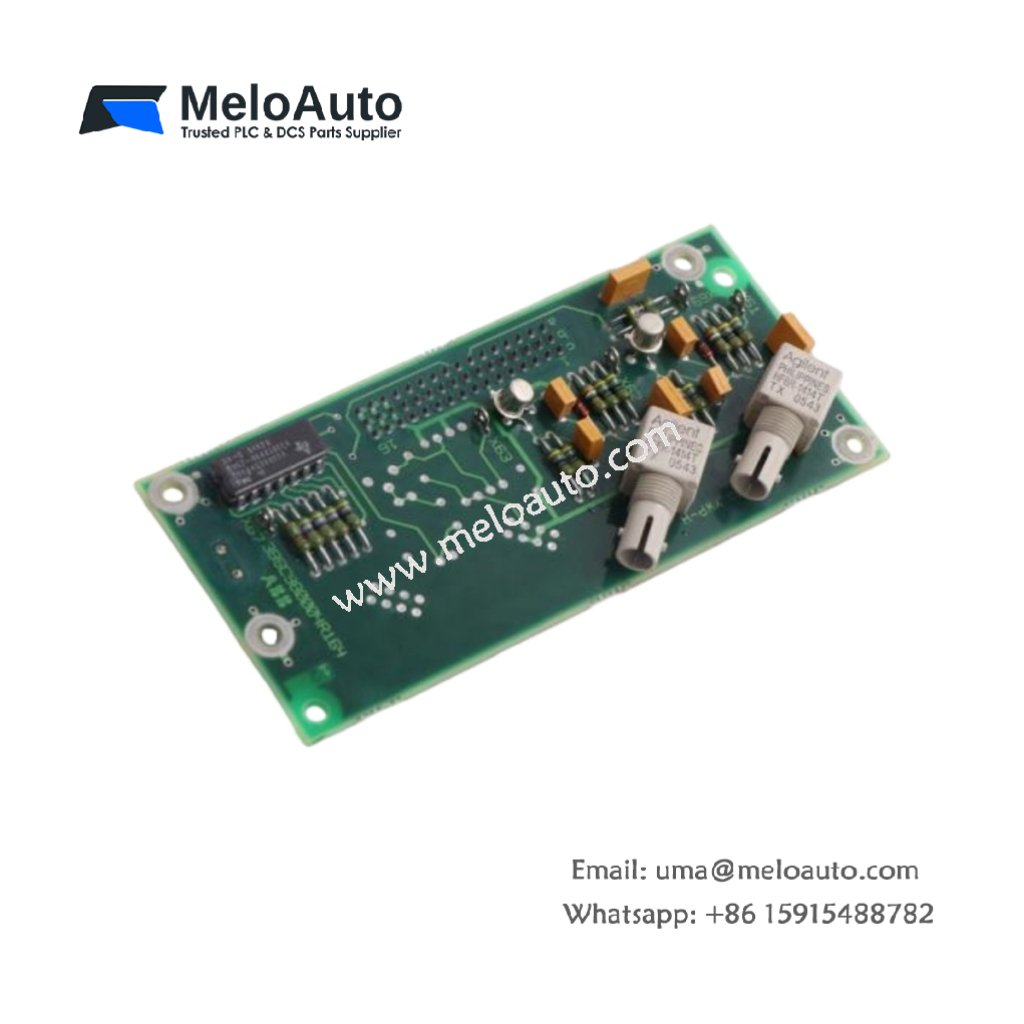

ABB DTDX991A 61430001-UW Digital I/O Module

The ABB DTDX991A 61430001-UW is a high-performance digital input/output (I/O) module designed for industrial automation applications. It provides precise and reliable control for manufacturing, process control, and energy management systems. With its flexible configuration and robust performance, this module is ideal for use in a wide range of industrial settings that require accurate data transmission and control.

Key Features of the DTDX991A 61430001-UW Module

Manufacturer: ABB
Product Line: DTDX
Part Number: DTDX991A 61430001-UW
Type: Digital Input/Output Module
Input Voltage: 24 VDC
Output Voltage: Adjustable, typically up to 24 VDC
Current Rating per Channel: 1 A
Maximum Channels: 16
Total Output Current: Max. 2 A
Dimensions: 100 mm (W) x 100 mm (H) x 25 mm (D)
Weight: 0.5 kg
Operating Temperature Range: -20°C to 60°C
Mounting Type: DIN Rail

Electrical Specifications

The DTDX991A 61430001-UW offers detailed electrical specifications for seamless integration into your control systems:

Specification	Value
Input Voltage	24 VDC
Output Voltage	Adjustable, typically up to 24 VDC
Current Rating per Channel	1 A
Maximum Channels	16
Total Output Current	Max. 2 A
Dimensions	100 mm (W) x 100 mm (H) x 25 mm (D)
Weight	0.5 kg
Operating Temperature Range	-20°C to 60°C
Mounting Type	DIN Rail

Advanced Features and Benefits

Precise Control: The DTDX991A 61430001-UW module delivers accurate control over connected devices, ensuring smooth and efficient operations in process control systems.
Flexible Voltage Output: The output voltage is adjustable, typically reaching 24 VDC, allowing for compatibility with a variety of devices and applications.
High Channel Density: With 16 channels, the module supports multiple inputs and outputs, providing a scalable solution for complex automation systems.
Compact and Lightweight: At just 0.5 kg and compact dimensions of 100 mm x 100 mm x 25 mm, it is easy to integrate into various systems and control panels.
Reliable Performance: Designed to operate within an extended temperature range of -20°C to 60°C, this module ensures consistent performance even in harsh industrial environments.

Applications of the DTDX991A 61430001-UW Module

The ABB DTDX991A 61430001-UW module is ideal for a wide range of industrial automation applications, including:

Manufacturing Automation: Enables precise control of manufacturing processes, providing reliable I/O capabilities for equipment monitoring and control.
Process Control Systems: Perfect for controlling and monitoring inputs and outputs in complex process control systems, enhancing efficiency and accuracy.
Energy Management: Used in energy management systems for precise monitoring and control of electrical devices, optimizing energy consumption and system performance.

Conclusion

The ABB DTDX991A 61430001-UW digital I/O module offers a robust and flexible solution for industrial automation needs. With its adjustable output, high current rating per channel, and reliable performance in various environments, it is an excellent choice for manufacturing, process control, and energy management systems. Its compact design and ease of integration make it a valuable component for modern automation systems.
