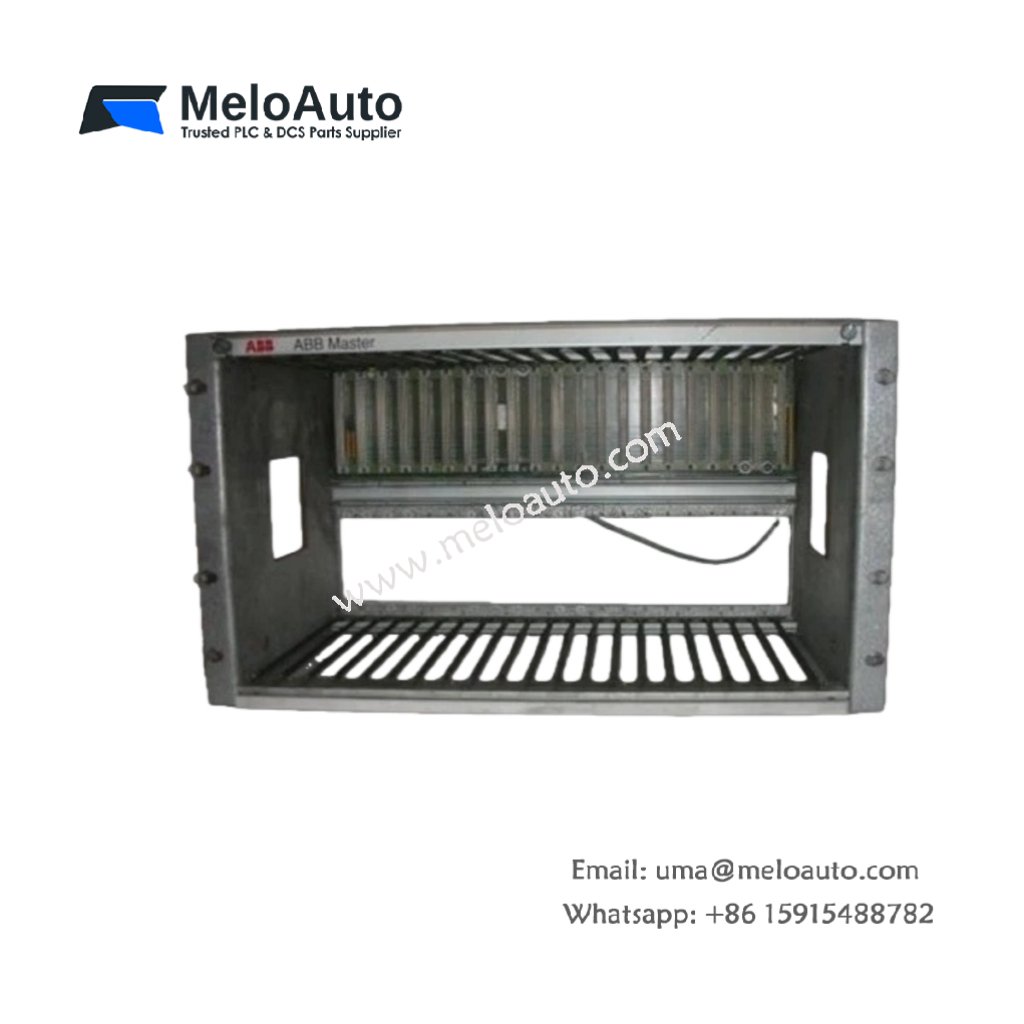

ABB DSRF182 S100 I/O Equipment Frame

The DSRF182 by ABB is a sturdy equipment frame designed for housing I/O modules in the S100 I/O system, part of ABB’s Advant Master Process Control System. This frame supports smooth system integration by providing a secure structure for the I/O modules. Additionally, it incorporates supervision signals, enhancing system monitoring and control for improved performance and reliability.

Key Features and Technical Specifications

• Model: DSRF182
• Manufacturer: ABB
• Category: Equipment Frame for Control Systems

Dimensions and Weight:

• Weight: 7.405 kg
• Dimensions: Not specified

Technical Specifications:

Product Overview

The DSRF182 Equipment Frame enables efficient integration of S100 I/O modules into the Advant Master Process Control System. It provides a well-organized housing, which ensures secure placement for each module. Furthermore, its frame design includes supervision signals, allowing real-time system monitoring and enhancing overall control.

Weighing 7.405 kg, the DSRF182 offers a lightweight solution without compromising on durability. Although specific dimensions are not listed, its compact frame fits easily into most industrial environments. The design of this subrack enables convenient installation, ensuring that system components stay organized and accessible.

Application

The DSRF182 Equipment Frame is ideal for systems requiring secure, organized housing for I/O modules. It is particularly useful for those working with ABB’s Advant Master Process Control System and the S100 I/O system. With its supervision signal feature, it ensures that operators can efficiently monitor system performance and troubleshoot any issues promptly.
