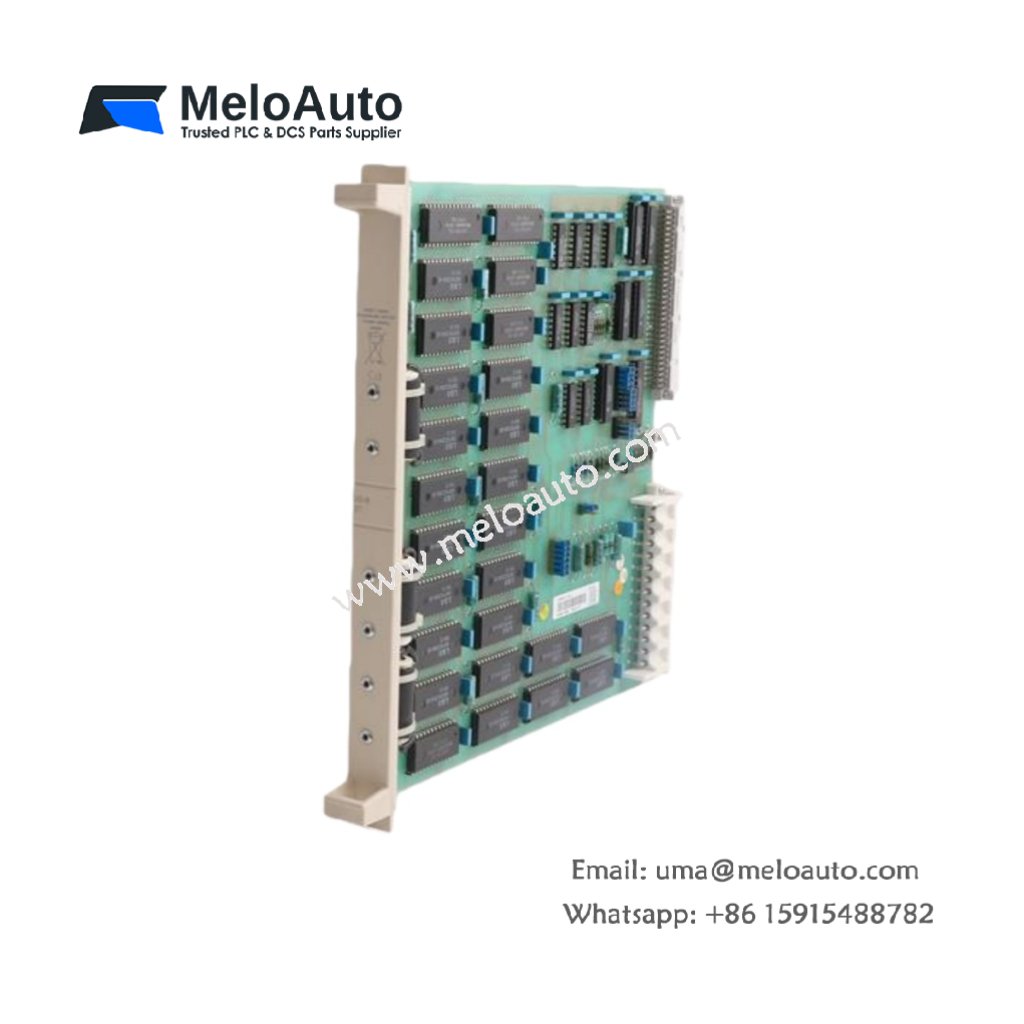

ABB DSMB127 57360001-HG Non-Volatile Memory Board

Overview

The ABB DSMB127 57360001-HG is a robust non-volatile memory board designed for use in Advant Master and MasterPiece 200/200/1 control systems. With integrated battery backup, it ensures the secure retention of configuration and process data, even during power failures. This memory board plays a critical role in maintaining reliable performance in safety-critical and industrial automation environments.

Key Features

Battery-Backed Memory: Retains important data during power outages, minimizing downtime and ensuring data integrity.
High Memory Capacity: Provides substantial storage space, allowing efficient management of configuration and runtime process data.
Seamless Integration: Compatible with Advant Master and MasterPiece 200/200/1 controllers for easy system integration.
Reliable Operation: Built for long-term use in harsh industrial environments, delivering consistent performance.
Compact and Durable: Designed for easy rack-mounting and capable of withstanding tough conditions with IP20 protection.

Technical Specifications

Specification	Details
Model Number	ABB DSMB127 57360001-HG
Memory Type	Read/Write Memory (RhM) with battery backup
Memory Capacity	04 KE
Battery Type	Nickel-Cadmium (4-cell)
Power Supply	24V DC
Input Current	10 mA
Output Current	0.5 A
Signal Types	4-20 mA analog (input/output)
Communication Interfaces	Modbus RTU, ICP/IP, Ethernet (via system integration)
Dimensions (W x D x H)	234 x 225 x 18 mm
Net Weight	0.5 kg
Mounting	Rack-mounted (for Advant OS3402 I/O system)
Protection Rating	IP20
Operating Temperature	-22°C to +70°C
WEEE Category	Small Equipment
RoHS Compliance	Exempt (EU Directive 2011/65/EU)

Applications

Industrial Automation: The ABB DSMB127 57360001-HG is perfect for use in Advant Master and MasterPiece systems, ensuring critical process data storage for industries like oil & gas, chemical processing, and power generation.
Data Retention: It is ideal for applications where data retention and system uptime are essential, even in the event of power interruptions.

Functional Highlights

Battery-Backed Memory: Retains important configuration and process data during power outages.
Reliable Data Storage: Ensures that both configuration and runtime data are securely stored for efficient control system operation.
Industrial-Grade Durability: Built to endure tough industrial conditions, ensuring long-term operation in challenging environments.
