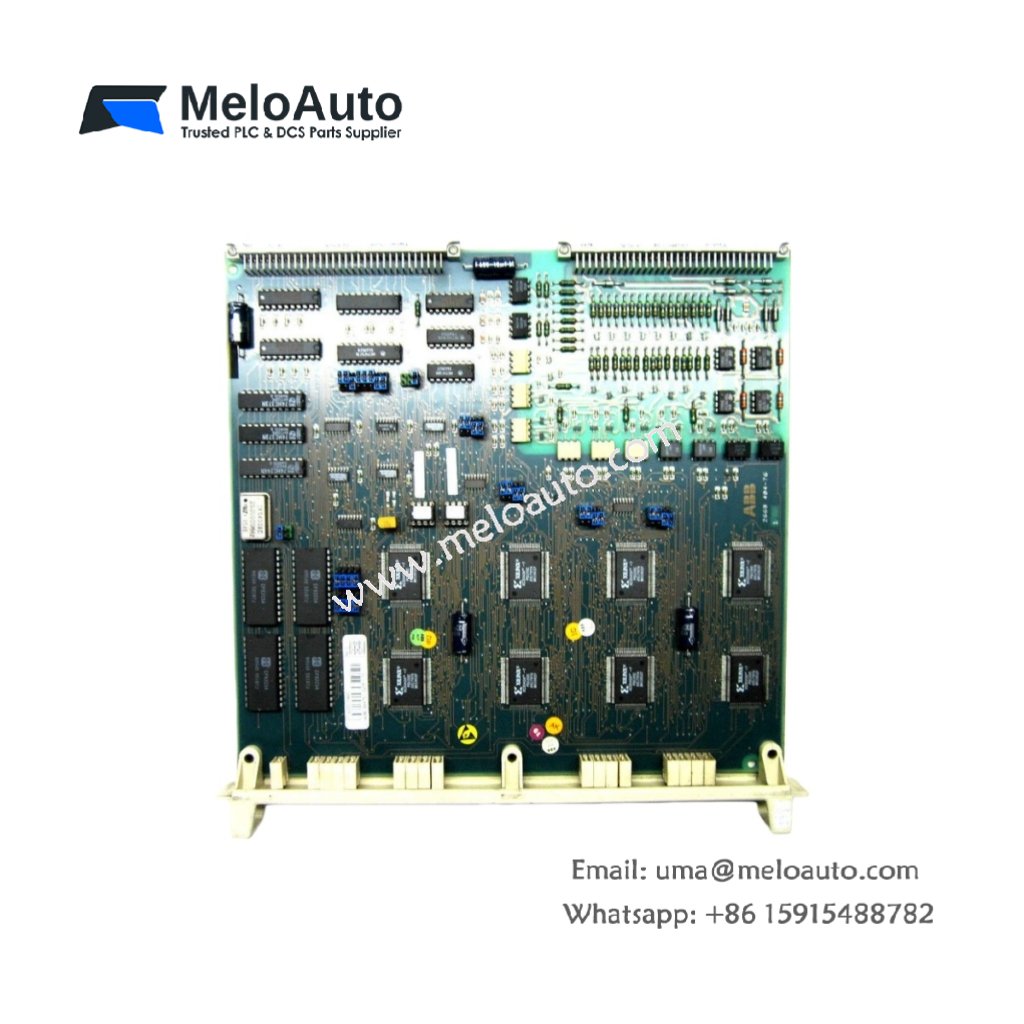

ABB DSDP170 DSDP 170 57160001-ADF Pulse Counting Board

The ABB DSDP170 DSDP 170 57160001-ADF is a high-performance pulse counting board designed for industrial automation systems. It provides precise positioning, speed, and frequency measurement. With a maximum pulse frequency of 2.6 MHz, this board ensures rapid and accurate signal processing, making it ideal for high-speed applications where precision and real-time monitoring are critical.

Key Features and Specifications

The DSDP170 is built to handle pulse counting, positioning, and speed measurement tasks with outstanding accuracy. It is engineered to operate efficiently in a wide range of industrial environments, supporting both position and speed feedback. With its maximum pulse frequency of 2.6 MHz, it guarantees precise data processing for complex control systems.

Technical Specifications

Feature	Specification
Model	DSDP170 DSDP 170 57160001-ADF
Product Type	Pulse Counting Board
Manufacturer	ABB
Max Pulse Frequency	Up to 2.6 MHz
Dimensions (L x W x H)	328.5 mm x 238.5 mm x 18 mm
Net Weight	0.38 kg
HS Code	803890
RoHS Status	Exempt from scope (2011/65/EU)
WEEE Category	5.5 (Small Equipment, < 50 cm)
Customs Tariff Number	85339031

The DSDP170 is compact, measuring 328.5 mm in length, 238.5 mm in width, and 18 mm in height. It weighs 0.38 kg, making it lightweight yet durable enough for rigorous industrial use.

Functionality and Use Cases

The ABB DSDP170 excels in applications that require precise pulse counting, speed measurement, and frequency tracking. It is especially effective for industrial automation, process control, robotics, and machinery monitoring. With its high pulse frequency processing capability, the DSDP170 ensures real-time feedback and control of moving parts or high-speed equipment, making it an invaluable tool in complex systems.

Benefits

High-Speed Processing: The DSDP170 processes pulses at up to 2.6 MHz, ensuring accurate, real-time data handling.
Compact and Lightweight: Its small size (328.5 mm x 238.5 mm x 18 mm) and low weight (0.38 kg) allow for easy integration into tight spaces and demanding applications.
Versatile Application: Ideal for use in robotics, machine automation, and any application requiring fast, accurate position and speed feedback.
Reliable Performance: Built to endure in tough industrial environments, delivering long-lasting performance with minimal maintenance.

Manufacturer and Series

Manufactured by ABB, a global leader in industrial automation, the DSDP170 DSDP 170 57160001-ADF is part of their pulse counting board series. ABB has a long-standing reputation for delivering reliable, high-performance automation solutions to industries worldwide, and this product continues that tradition.
