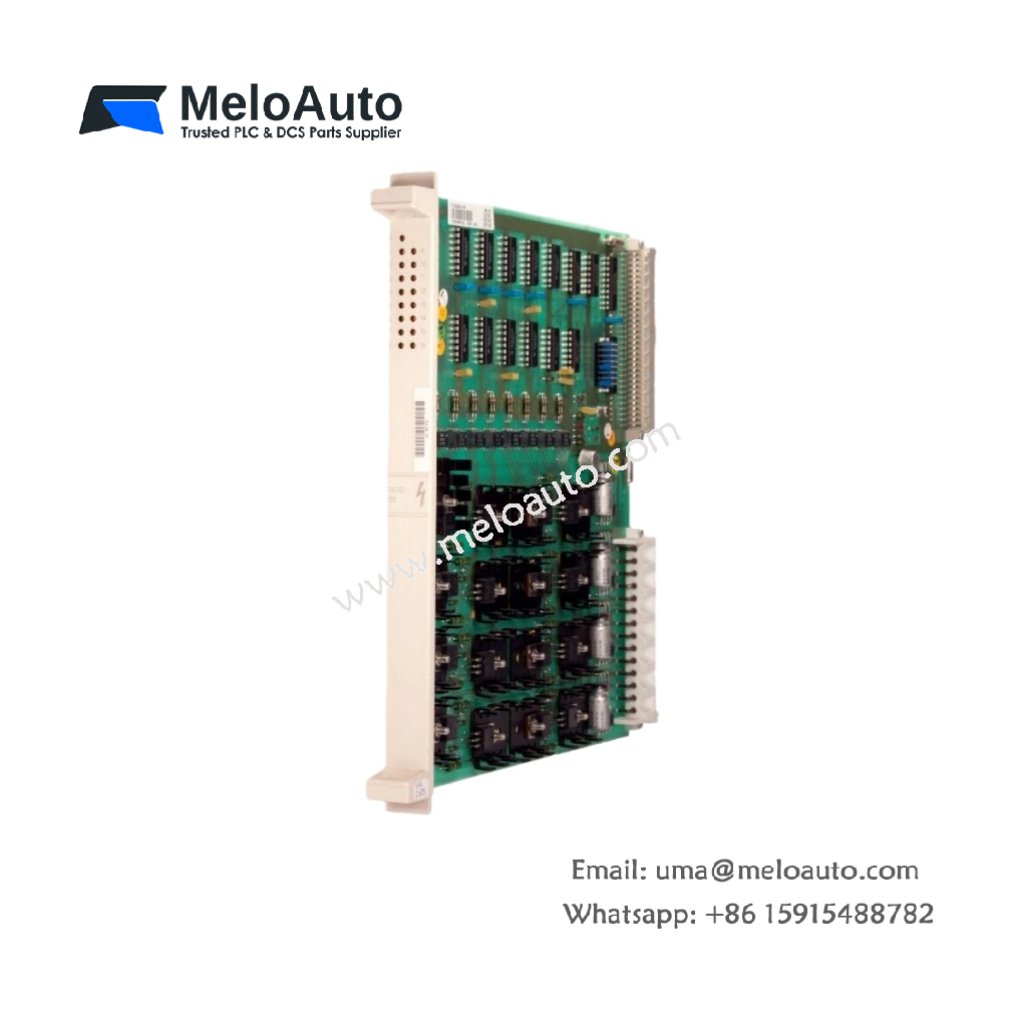

ABB DSDO120 Digital Output Unit 24-48VDC 1A

Overview

The ABB DSDO120 digital output unit is designed for precise control in industrial automation systems. It operates efficiently with a wide voltage range of 24VDC to 48VDC. With its reliable performance, this unit ensures smooth operation and enhances the overall productivity of industrial processes.

Key Features and Specifications

The DSDO120 offers robust digital output capabilities, making it ideal for applications that require high control accuracy. Its compact size and advanced features provide ease of installation and long-term reliability in demanding environments.

Technical Specifications

Feature	Specification
Model	DSDO120
Type	Digital Output Unit
Operating Voltage	24-48VDC
Current Rating	1A
Output Channels	12 Channels
Connection Interface	Screw Terminal
Weight	0.5 kg
Dimensions (L x W x H)	120 mm x 80 mm x 60 mm
Temperature Range	-10°C to 60°C
Storage Temperature Range	-20°C to 70°C
Power Consumption	1.2 W

The DSDO120 delivers high-performance digital outputs with up to 12 channels. It operates within a wide temperature range, ensuring stability even in extreme conditions. The unit’s simple screw terminal interface facilitates quick and easy installation.

Application and Use Cases

Designed for versatile use, the ABB DSDO120 is suitable for industrial automation, robotics, and control systems. It efficiently handles machine control tasks, improving overall operational efficiency. The unit’s flexibility in voltage input (24-48VDC) and current output (up to 1A) makes it ideal for controlling sophisticated equipment across various industrial sectors.

Benefits

Versatile Connectivity: With its screw terminal connection interface, the DSDO120 allows quick and reliable wiring.
Wide Operating Voltage Range: This module adapts easily to different industrial power systems, ensuring reliable performance.
Consistent Reliability: Thanks to its rugged design, the DSDO120 ensures long-term stability in challenging environments.
Space-Saving Design: Its compact size allows it to fit into tight spaces, offering convenience in installations with limited room.

Manufacturer and Series

Manufactured by ABB, a leader in industrial automation, the DSDO120 is part of the company’s line of high-performance digital output units. These units are engineered for demanding applications that require precision and durability.
