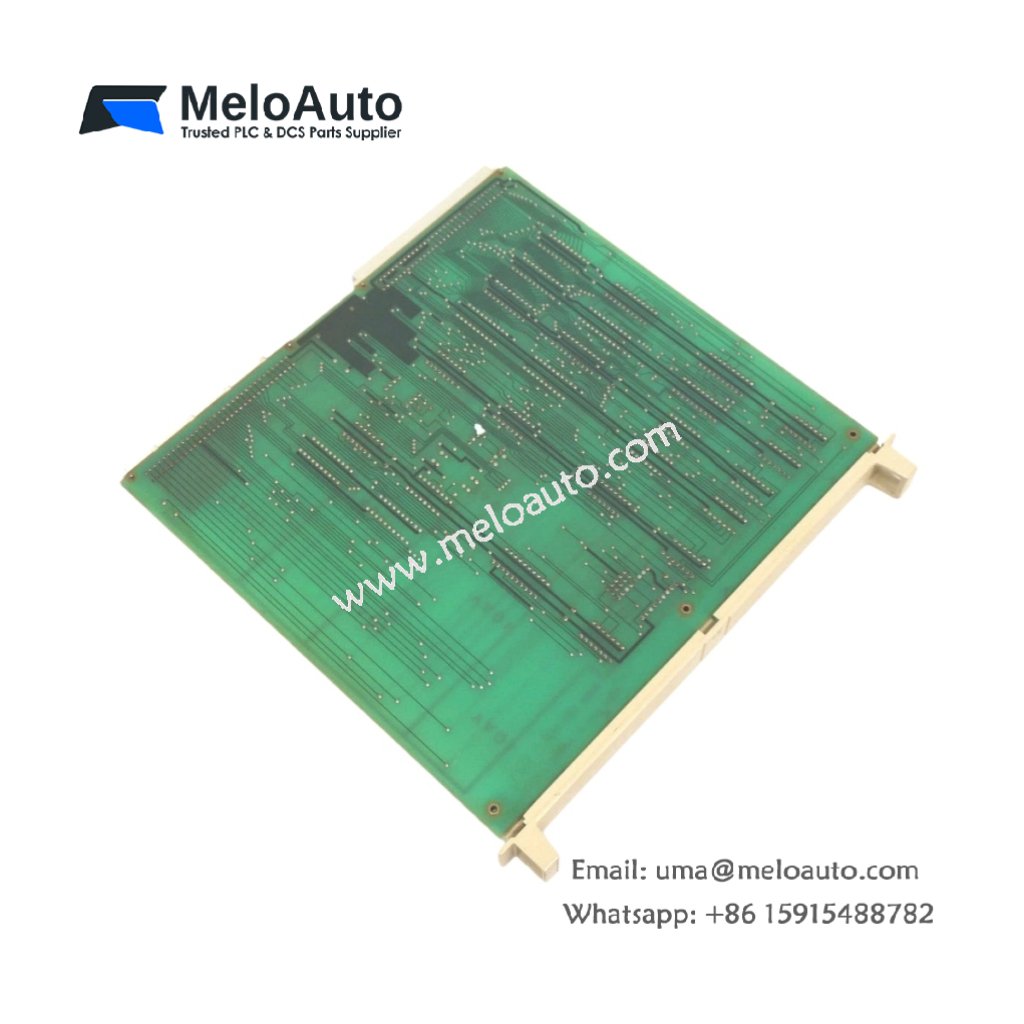

ABB DSBC110 57310256-E – Profibus DP Bus Termination Module

The ABB DSBC110 57310256-E is a bus termination module engineered for use in Profibus DP (Decentralized Periphery) systems. This module ensures smooth and efficient data transmission while preserving signal integrity across industrial automation networks.

Key Features:

Impedance Matching: The DSBC110 directly matches the characteristic impedance of the Profibus DP cable (typically 150 ohms). As a result, the system achieves optimal signal transmission and minimizes reflections, essential for maintaining data accuracy.
Signal Termination: This module absorbs signal reflections at the end of the bus, preventing distortion. Consequently, it maintains reliable data transfer throughout the network.
Status LEDs: Depending on the model, the DSBC110 comes with status LEDs. These LEDs provide immediate feedback on the power and termination status, ensuring smooth and continuous network operation.
Bus Shunt Resistor: Some versions of the DSBC110 include a built-in shunt resistor. This feature effectively terminates the bus and provides a current path for grounding, increasing overall system stability.

Technical Specifications:

Specification	Details
Model Number	DSBC110 57310256-E
Product Type	Bus Termination Module
Compatible Bus System	Profibus DP
Impedance Matching	150 ohms
Signal Termination	Absorbs signal reflections
Status LEDs	Yes (depends on model)
Bus Shunt Resistor	Built-in (optional)
Operating Temperature	-20°C to +70°C
Dimensions (L x W x H)	95 mm x 55 mm x 30 mm
Weight	0.25 kg

Applications:

The ABB DSBC110 57310256-E module plays a vital role in terminating Profibus DP networks within industrial automation systems. Here are some common applications:

PLC Communication: The module connects programmable logic controllers (PLCs) within Profibus DP systems. This integration ensures seamless and stable communication across devices.
Factory Automation: The DSBC110 connects sensors, actuators, and controllers, ensuring smooth data transmission and preventing any interruptions in the system.
Process Control Systems: The module guarantees signal integrity, effectively preventing errors and optimizing performance in critical industrial process control systems.

By using this termination module, you will ensure that your Profibus DP networks remain stable and efficient. It plays an essential role in the reliable transmission of data, preventing signal distortions and improving the overall performance of your system.
