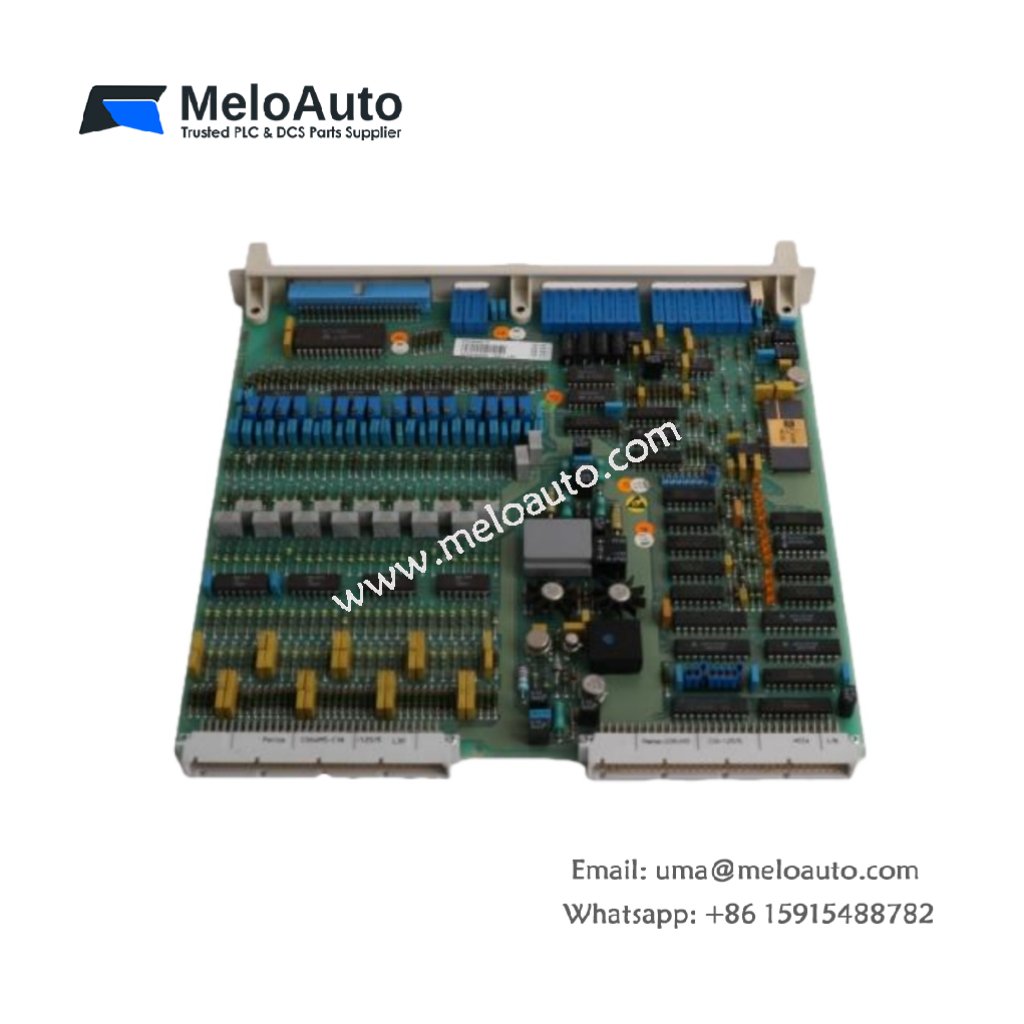

ABB DSAI130 57120001-P Analog Input Board

The ABB DSAI130 57120001-P is a highly accurate 16-channel analog input board with differential input configuration. It provides precise signal processing, offering an accuracy of 0.025%. This board supports input ranges of ±10V and ±20mA, making it ideal for a variety of industrial applications.

Designed specifically for use with Safeguard safety controllers, MasterPiece 2×0, or controllers with CMV > 50V, the ABB DSAI130 57120001-P ensures reliable performance. When ordering, it’s important to specify the hardware license number of the installed controller. This module is available exclusively as a spare part, making it essential for maintenance or upgrades.

For standard process controllers with CMV ≤ 50V, consider using the revitalized version, DSAI 130A 3BSE018292R1, for enhanced compatibility.

Key Features and Specifications:

Product ID: 57120001-P
Manufacturer: ABB
Type Designation: DSAI130
Catalog Description: DSAI130 Analog Input Board
Description: Analog Input Board with 16 Channels, Differential Input, ±10V, ±20mA and 0.025% Accuracy.
Compatibility: Designed for Safeguard safety controllers, MasterPiece 2×0, or controllers with CMV > 50V.
Ordering Note: The HW license number of the installed controller must be specified when ordering.
Availability: Available only as a spare part.
Replacement Option: For controllers with CMV ≤ 50V, use the revitalized version DSAI 130A 3BSE018292R1.

Technical Specifications:

Parameter	Value
Number of Channels	16
Input Types	Differential Input
Input Voltage Range	±10V, ±20mA
Accuracy	0.025%
Compatibility	Safeguard safety controllers, MasterPiece 2×0, Controllers with CMV > 50V
Power Supply	Not specified
Mounting Type	Standard (typically for industrial control systems)
Dimensions (Height x Width)	14.4 mm x 236.7 mm
Weight	0.52 kg

Product Dimensions & Weight:

Height: 14.4 mm
Width: 236.7 mm
Weight: 0.52 kg

Environmental Compliance:

WEEE Category: Small Equipment (External dimensions ≤ 50 cm)

Application:

The ABB DSAI130 57120001-P is primarily used in safety-critical applications where high accuracy and reliable signal processing are essential. It is ideal for use with Safeguard safety controllers, MasterPiece 2×0 systems, or other industrial controllers with CMV > 50V. This board plays a crucial role in safeguarding operations, providing essential input signal accuracy for process control systems.
