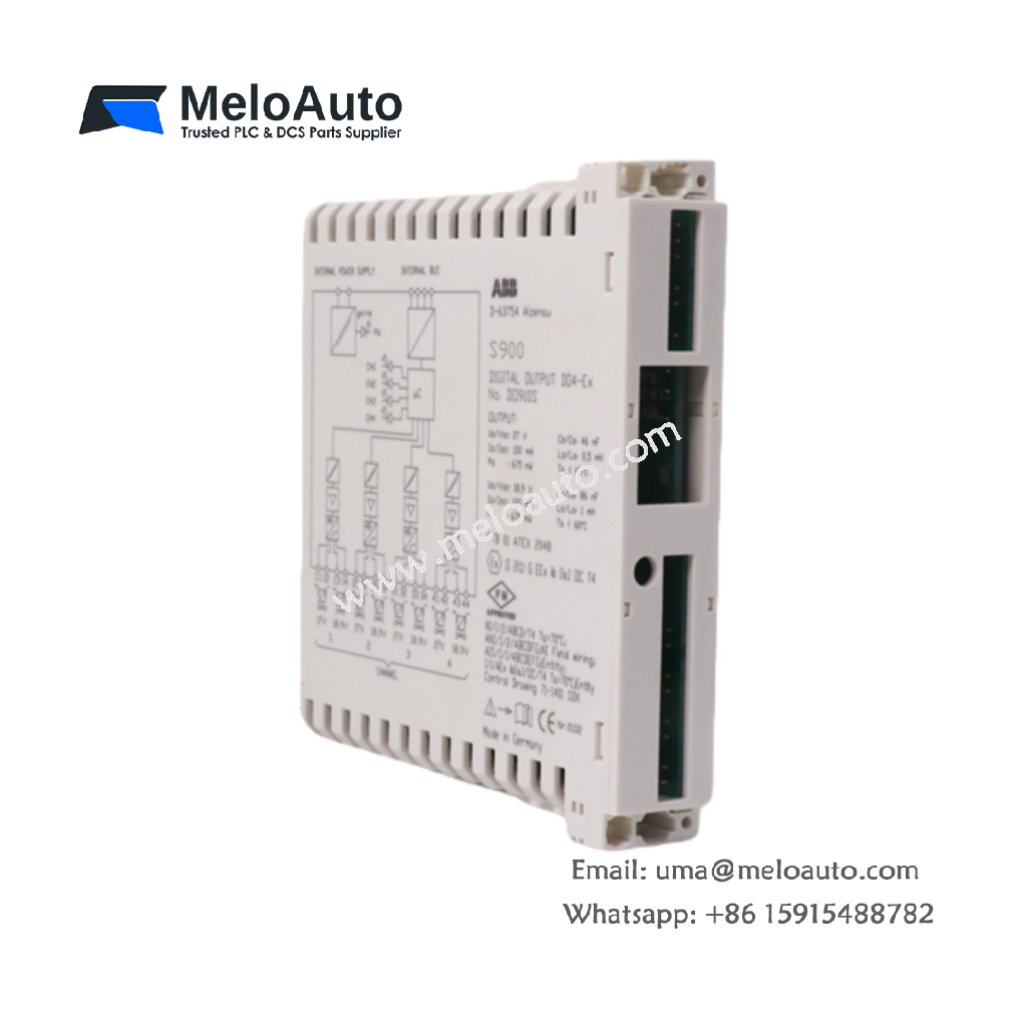

ABB DO930 32-Channel Digital Output Module

Overview

The ABB DO930 is a 32-channel digital output module that integrates seamlessly with the ABB Ability™ System 800xA®. This module excels in managing control signals in industrial automation and process control applications. With reliable output and efficient isolation between channels, the ABB DO930 ensures smooth and safe operation for various industrial tasks.

Key Features

24 VDC Output Voltage: The module supplies 24 VDC, which is ideal for a wide range of industrial applications.
0.5 A Output Current per Channel: Each channel delivers 0.5 A, offering consistent power for multiple field devices.
Channel Isolation: Each of the 32 channels is electrically isolated, preventing interference and ensuring clean signals.
Short-Circuit Protection: ABB DO930 comes with built-in short-circuit protection to safeguard the entire system.
RoHS Compliance: This module adheres to RoHS standards, ensuring environmental safety in manufacturing processes.

Technical Specifications

Parameter	Specification
Model	DO930 Digital Output Module
Number of Channels	32
Output Voltage	24 VDC
Output Current	0.5 A per channel
Channel Isolation	Isolated in two groups of 16
Short-Circuit Protection	Yes
RoHS Compliance	Yes
Dimensions (L x H x W)	102 mm x 119 mm x 45 mm
Weight	0.2 kg

Applications

The ABB DO930 is versatile and suitable for various industrial applications, including:

Process Control: This module controls key process equipment, including valves, pumps, and motors.
Industrial Automation: It integrates into machinery automation systems to improve operational efficiency and reduce human error.
Energy Management: The ABB DO930 module plays an essential role in monitoring and managing energy systems.
Hazardous Environments: It operates reliably in environments where safety is critical, including chemical plants and power generation systems.
