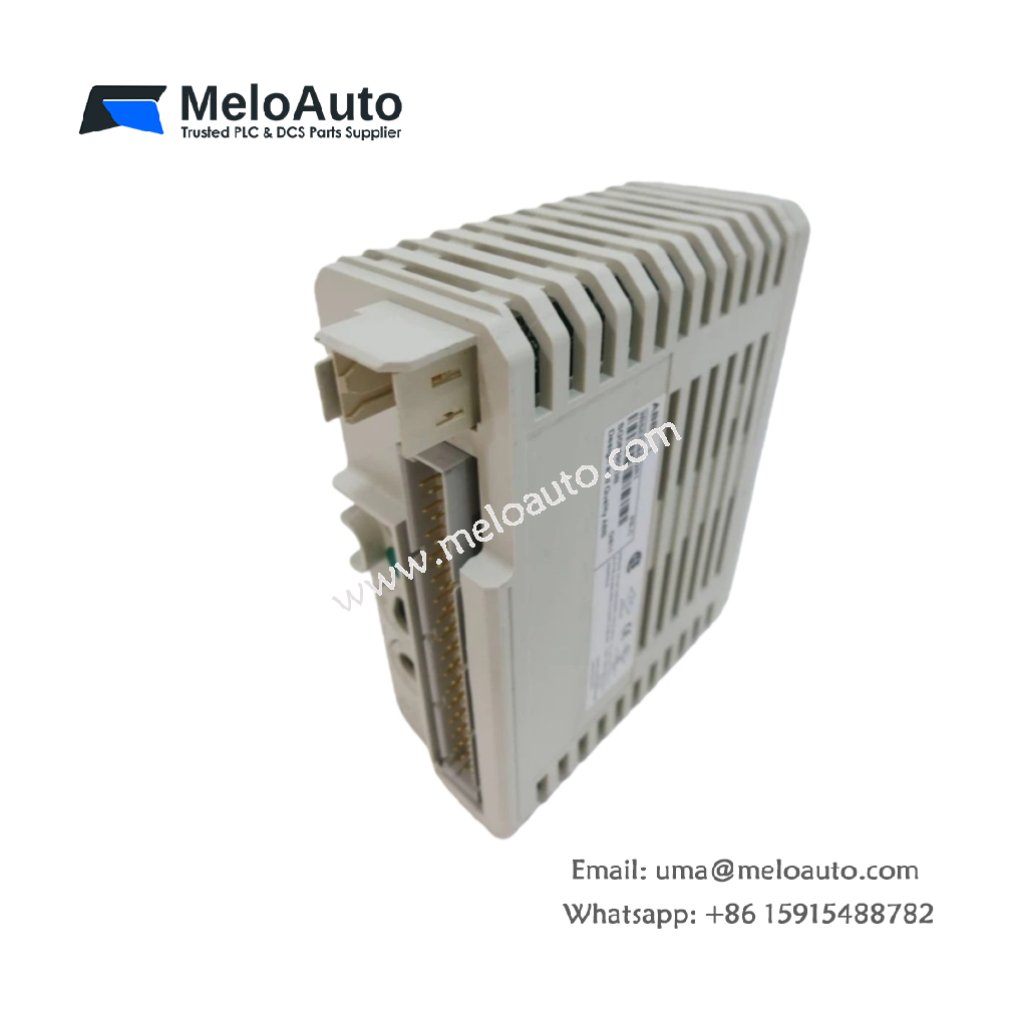

ABB DI811 3BSE008552R1 Digital Input Module

The ABB DI811 3BSE008552R1 is a digital input module specifically designed for ABB’s S800 I/O system. It serves as an essential component in ABB’s distributed control systems (DCS), including the Advant Controller 800 and AC 800M. This module efficiently processes digital input signals from field devices, including switches and sensors, ensuring reliable and smooth operation in complex industrial environments.

Key Features and Specifications

• Model Number: DI811 3BSE008552R1
• Manufacturer: ABB
• System Compatibility: S800 I/O System, Advant Controller 800, AC 800M
• Product Type: Digital Input Module
• Category: Industrial Automation, I/O Modules

Functional Highlights

• 16 Digital Input Channels: The DI811 provides 16 input channels, each capable of receiving signals from various field devices such as sensors and switches.
• Input Signal Type: This module is optimized for 24V DC input signals and supports IEC 61131-2, Type 1 and Type 3 signals.
• Nominal Voltage Range: It accepts input voltage within a range of 18V to 30V DC, making it adaptable to a wide range of industrial applications.
• Optical Isolation: The DI811 ensures system protection with optical isolation between field inputs and internal electronics, shielding the system from electrical faults.
• Grouped Isolation: Inputs are divided into two isolated groups, with eight inputs per group, further enhancing safety and reliability.
• Signal Status LED Indicators: Each input channel features a LED indicator to display real-time status, simplifying troubleshooting and diagnostics.
• Mounting Compatibility: Designed for quick and easy mounting on ABB S800 I/O terminal units, like the Tu830, this module supports both installation and maintenance efficiency.
• Low Power Consumption: With low power usage, the DI811 maintains energy efficiency, which is a standard feature of digital input modules.
• Diagnostic Functions: The module offers built-in diagnostics to detect common wiring issues, such as open circuits. This feature supports system reliability and reduces downtime.

Dimensions and Weight

Applications

The ABB DI811 3BSE008552R1 is perfect for a variety of industrial applications, including:

• Factory Automation: The module integrates field devices into automated manufacturing processes.
• Process Control: It ensures reliable signal input from sensors and switches in process control systems.
• Building Automation: The DI811 helps manage input signals for devices like HVAC systems and lighting in large buildings.
• Machine Monitoring: It plays a crucial role in real-time signal monitoring in critical machinery systems.
