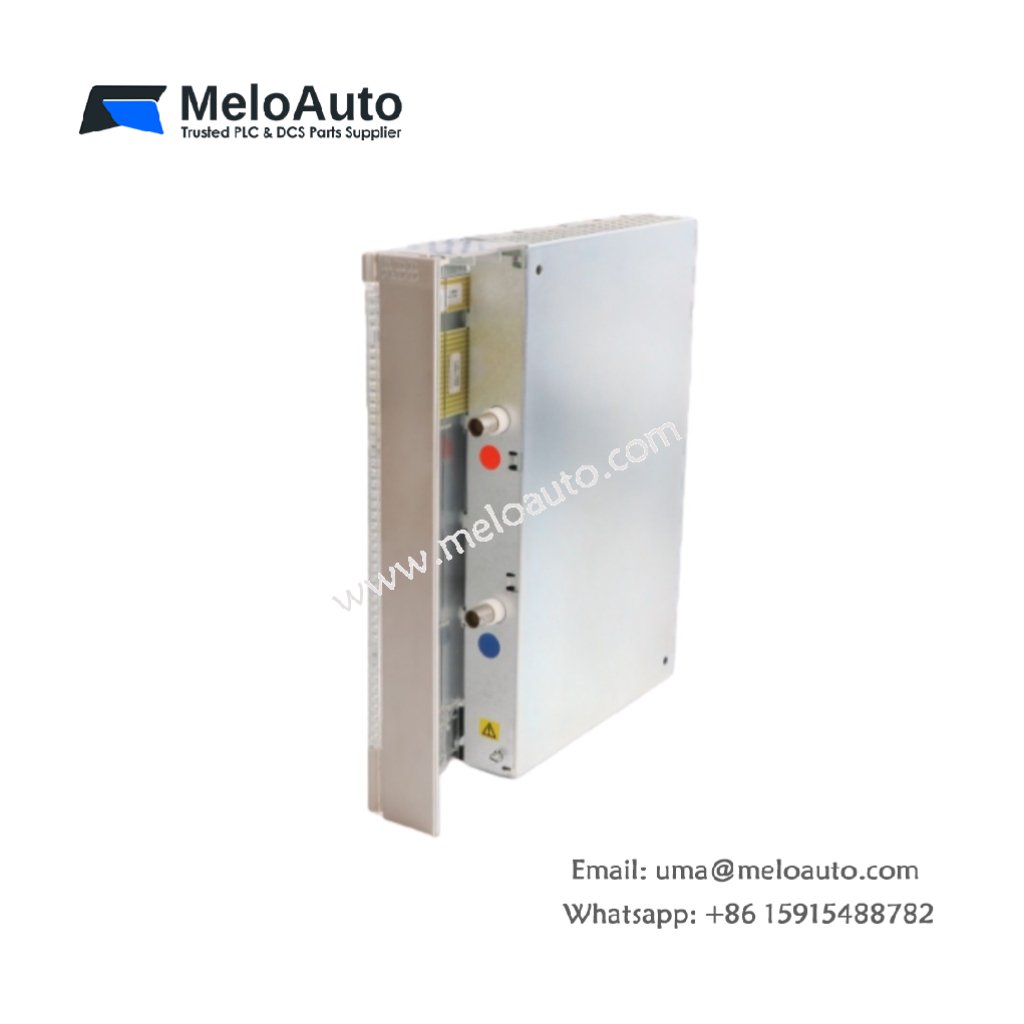

ABB CI615 3BHT300024R1 Communication Module

Overview

The ABB CI615 3BHT300024R1, also referred to as the Cl615 10B A Bus Coupler, is a reliable communication module designed to enhance the I/O capabilities of industrial automation systems. It serves as a vital extension unit, enabling connection between Advant Master and AC 400 controllers and up to 5600 I/O stations through the Cl615 bus.

This module offers robust communication, high compatibility, and reliable diagnostics, making it an ideal choice for various industrial automation applications. Even though the ABB CI615 3BHT300024R1 is no longer in production, replacement parts and refurbished units remain available.

Key Features

Expanded I/O Capacity: Connects up to 5600 I/O stations, allowing seamless expansion of I/O capabilities.
High Compatibility: Works efficiently with Advant Master and AC 400 controllers, supporting software versions 5.1 and later.
Power Supply: Operates with a 24 VDC power supply for enhanced efficiency and stability.
Diagnostic Features: Provides advanced diagnostic capabilities for effective troubleshooting and maintenance of communication networks.
Rugged Design: Built to withstand harsh industrial environments, ensuring durability and long-lasting performance.
Compact and Lightweight: With dimensions of 252 mm (L) x 273 mm (H) x 40 mm (W) and a weight of 1.2 kg, it fits into various system setups.

Technical Specifications

Specification	Details
Model	ABB CI615 3BHT300024R1
Product ID	3BHT300024R1
Dimensions (L x H x W)	252 mm x 273 mm x 40 mm
Weight	1.2 kg
Power Supply	24 VDC
Communication Protocol	Cl615 Bus
Supported I/O Stations	Up to 5600 I/O stations
I/O Points Supported	Up to 256 I/O points
Diagnostic Capabilities	Yes, for troubleshooting
Operating Environment	Harsh industrial conditions
Compatibility	Advant Master, AC 400 controllers (Software Version 5.1 and later)
Applications	Power generation, oil & gas, pulp and paper

Applications

The ABB CI615 3BHT300024R1 is a versatile solution for industrial automation systems. It is suitable for a wide range of industries, including:

Power Generation: Enhances control and monitoring systems in power plants.
Oil & Gas: Facilitates communication between controllers and I/O stations in demanding environments.
Pulp & Paper: Improves operational efficiency in paper production and processing plants.

Additional Notes

While ABB CI615 3BHT300024R1 is no longer in production, the module remains a reliable and widely used component in industrial automation systems.
Replacement parts and refurbished units are still available from select vendors.
This communication module is known for its durability and proven track record in numerous global industrial facilities.
