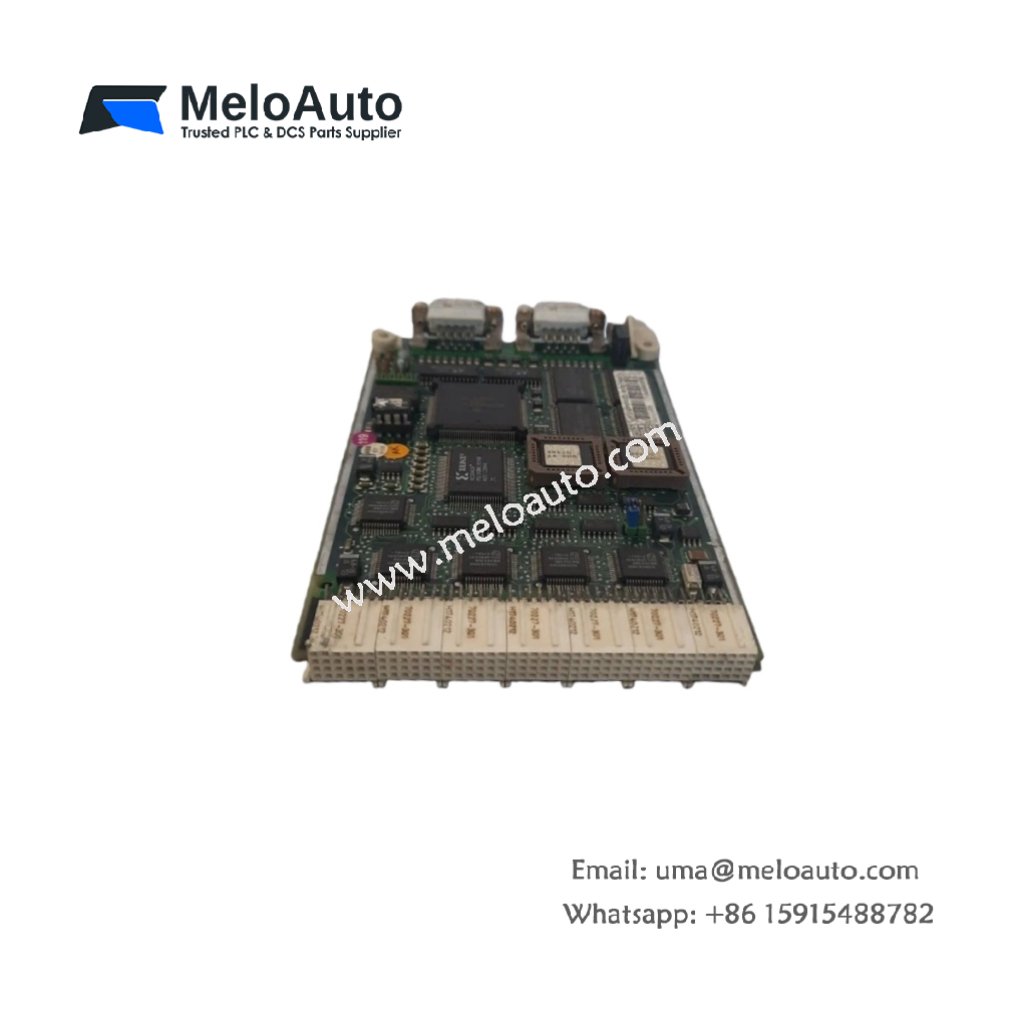

ABB CI532V04 Communication Module

The ABB CI532V04 is a powerful communication module designed to enhance communication between ABB controllers and Allen-Bradley devices. This submodule DFl interface expands your system’s capabilities by adding two DF1 communication channels, enabling seamless data exchange, control commands, and monitoring between systems.

Key Features of the ABB CI532V04

Dual DF1 Communication Channels: Adds two independent communication channels for flexible and efficient data exchange.
Compatibility: Works seamlessly with compatible ABB controllers, particularly Advant OCS with MOD 300 SW and AC 400 series.
Enhanced Control & Data Transfer: Facilitates interaction with Allen-Bradley devices, enabling better control, monitoring, and data transfer.
Potential Feature Support: Depending on implementation, the module may support diagnostics, communication modes, and advanced configuration options.

Technical Specifications of the ABB CI532V04

Specification	Details
Model	CI532V04
Product Type	Communication Module
Function	Submodule DF1 Interface
Number of Communication Channels	2
Compatibility	Works with ABB Advant OCS controllers, MOD 300 SW, AC 400 series
Dimensions (L x H x W)	225 mm x 27 mm x 135 mm
Weight	0.15 kg
RoHS Compliance	Not RoHS Compliant

Applications of ABB CI532V04

Industrial Automation: Facilitates communication between ABB controllers and Allen-Bradley devices in diverse industrial environments such as process control and manufacturing automation.
Material Handling: Perfect for systems that require real-time data exchange and control over material flow.
Building Automation: Integrates ABB systems into building control systems for enhanced automation.
Data Acquisition and Monitoring: Enable communication between Allen-Bradley sensors and your control system, supporting efficient data collection.
Legacy System Integration: Connects ABB controllers to older Allen-Bradley equipment, extending the lifespan and functionality of existing systems.

Additional Information

Dimensions: 225 mm (L) x 27 mm (H) x 135 mm (W)
Weight: 0.15 kg
RoHS Compliance: Not RoHS compliant
Documentation: A comprehensive datasheet or manual may not be readily available online. Please contact ABB for detailed technical specifications and installation instructions.
