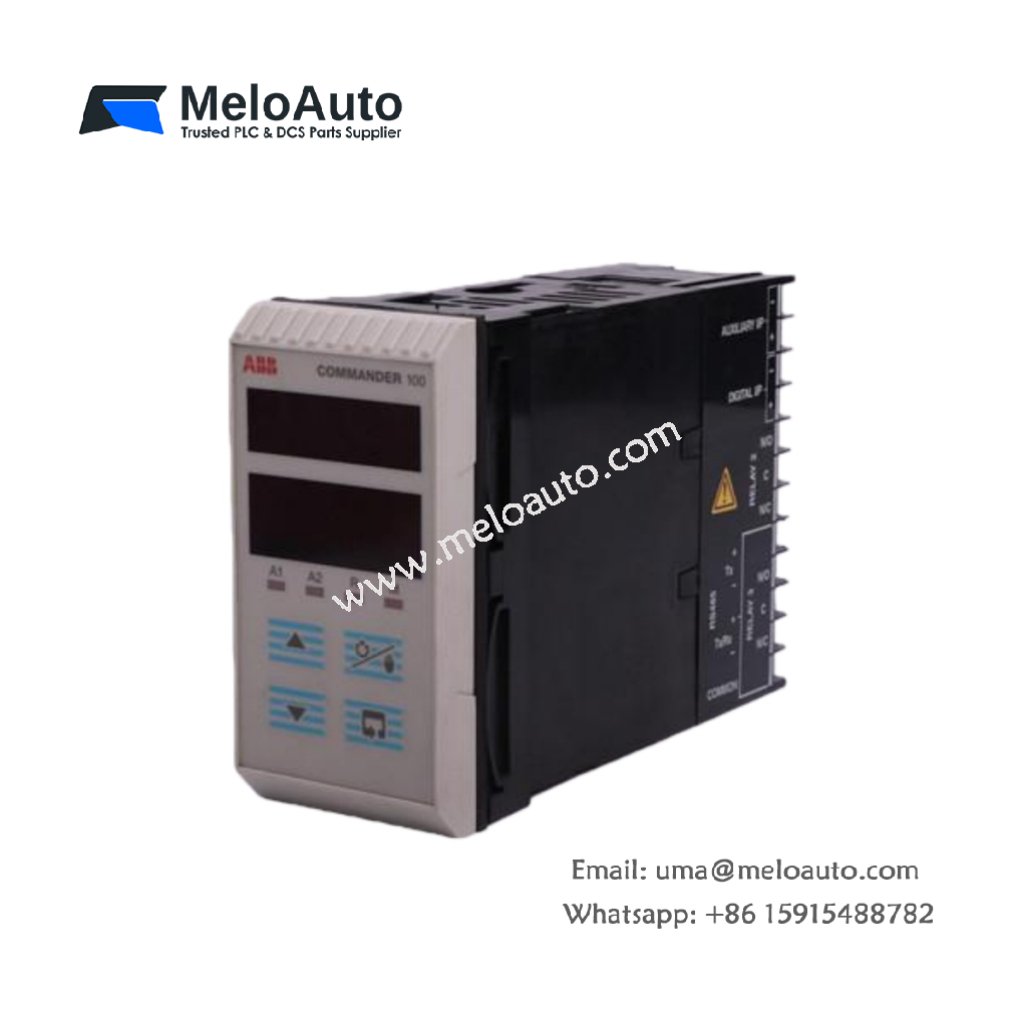

ABB C100/0200/STD Universal Process Controller

The ABB C100/0200/STD is an advanced universal process controller designed to provide precise single-loop process control. With its advanced PID control functionality and auto-tune features, it offers excellent performance for industrial applications. Additionally, it supports multiple output types and easy configuration, ensuring adaptability to a wide range of processes and industries.

Key Features of the ABB C100/0200/STD:

PID Control: The controller ensures accurate and reliable process control. It also includes an auto-tune feature, which optimizes system stability over time.
Versatile Outputs: The C100/0200/STD supports 4 to 20 mA analog, logic, and relay outputs. Furthermore, users can add extra relay outputs to meet specific needs.
Universal Inputs: The controller is compatible with a variety of inputs, including temperature, pressure, flow, and level signals, making it highly versatile for different industrial applications.
Communication Options: Equipped with RS485 and Modbus communication protocols, the C100/0200/STD seamlessly integrates with SCADA, PLC, and other automation systems.
User-Friendly Display: The controller features a 7-segment, 2×4-digit LED display that ensures clear visibility of operational parameters at all times.
Durable Front Panel: With its hoseproof and full noise immunity, the front panel ensures the C100/0200/STD remains reliable even in harsh industrial environments.
Easy Configuration: Users can configure the controller either through the intuitive front panel or ABB’s Windows-based software, streamlining the setup process.

ABB C100/0200/STD Technical Specifications:

Specification	Details
Model	C100/0200/STD
Type	Universal Process Controller
Control Type	PID Control with Auto-tune
Outputs	4-20 mA Analog, Logic, Relay Outputs
Additional Outputs	Extra Relay Output Option
Inputs	Universal Inputs (Temperature, Pressure, Flow, Level)
Display	7-segment, 2×4-digit LED Display
Communication	RS485, Modbus
Front Panel	Hoseproof, Full Noise Immunity
Configuration	Front Panel or ABB Windows-based Software
Power Supply	24 VDC or 110/220 VAC
Dimensions	96 x 96 x 106 mm (1/8 DIN)
Weight	0.5 kg
Operating Temperature Range	-10°C to +60°C (14°F to 140°F)
Humidity Range	10% to 90% RH, Non-condensing

Why Choose the ABB C100/0200/STD?

The ABB C100/0200/STD excels in both performance and versatility. Its PID control with auto-tune optimizes system responses, making it perfect for precise process control. The controller supports multiple output types and universal inputs, which ensures its adaptability across various processes and field devices. Furthermore, RS485/Modbus communication guarantees smooth integration with existing systems like SCADA and PLC. The hoseproof front panel and noise immunity provide reliability in challenging environments, while the straightforward configuration options save time during installation.

Applications:

Industrial Automation: Ideal for controlling processes like temperature, pressure, flow, and level in manufacturing and production environments.
Process Control: Provides precise and efficient control in industries like chemical processing, energy production, and water treatment.
Building Automation: Suitable for managing HVAC systems, lighting controls, and energy usage in commercial buildings.
Machine Control: Perfect for automated systems in assembly lines, robotics, and machine monitoring.
