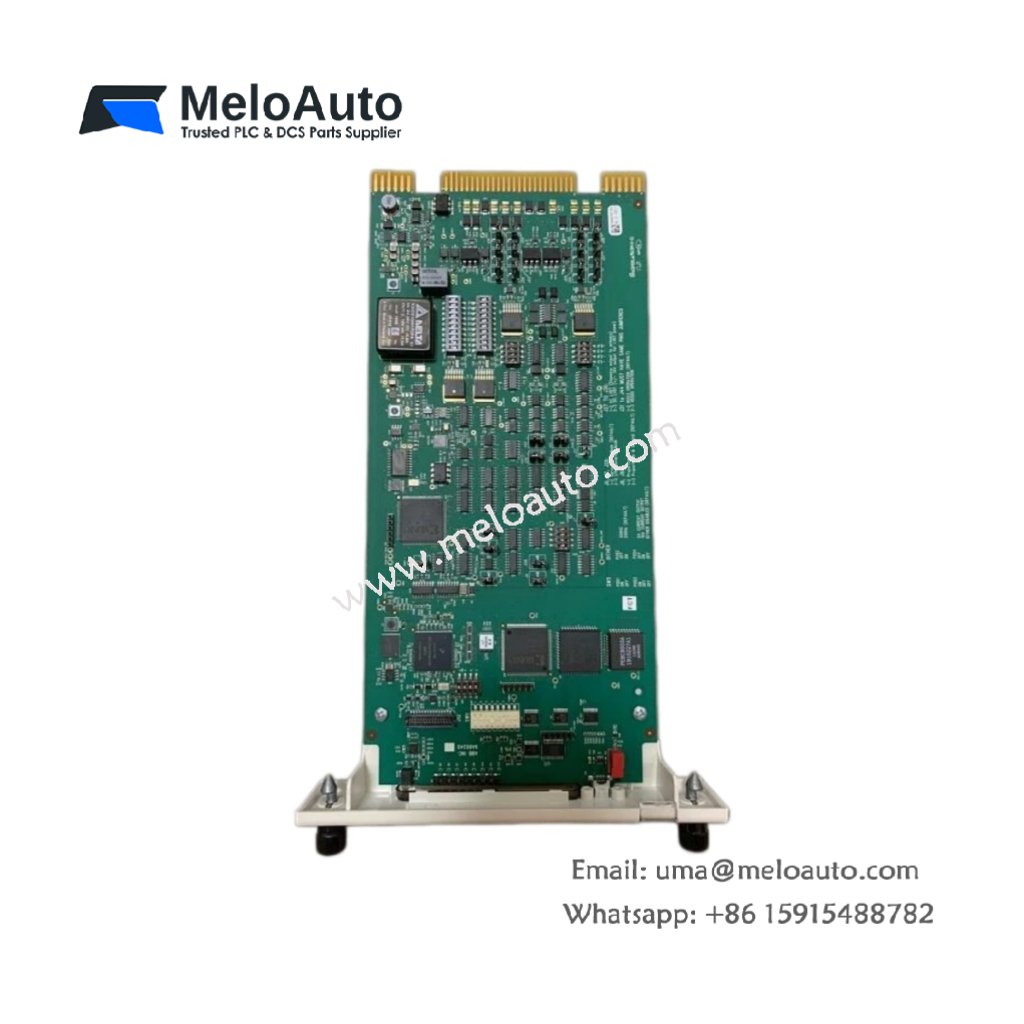

ABB Bailey SPHSS13 Hydraulic Servo Module

Overview

The ABB Bailey SPHSS13 Hydraulic Servo Module is designed to deliver exceptional performance in hydraulic systems. This high-quality module controls hydraulic actuators with precision, enabling precise motion control and efficient operation.

Technical Specifications

Feature	Specification
Model	SPHSS13
Manufacturer	ABB Bailey
Product Type	Hydraulic Servo Module
Power Supply	24 V DC
Dimensions (L x W x H)	250 mm x 160 mm x 100 mm
Weight	3.5 kg (7.7 lbs)
Input Voltage Range	18–30 V DC
Control Type	Analog / Digital
Interface	CANopen / Analog Signals
Operating Temperature	-20°C to +60°C
Hydraulic Pressure	Up to 210 bar
Mounting Type	DIN Rail / Panel Mountable

Key Features

Precise Hydraulic Control: The SPHSS13 module ensures accurate control of hydraulic actuators. It offers reliable, consistent operation in various industrial settings.
Multiple Control Modes: With analog and digital control options, the module adapts to a wide range of system requirements. It supports both CANopen communication and analog signals.
Wide Voltage Range: The unit operates within a voltage range of 18-30 V DC, providing flexibility in diverse electrical environments.
Compact Design: Measuring 250 mm x 160 mm x 100 mm, the SPHSS13 module offers a space-efficient solution for system integration.
High Hydraulic Pressure Handling: Capable of managing hydraulic pressures up to 210 bar, it excels in demanding applications.
Temperature Tolerance: The SPHSS13 performs effectively in temperatures ranging from -20°C to +60°C, making it suitable for various environmental conditions.

Conclusion

The ABB Bailey SPHSS13 Hydraulic Servo Module is an essential component for hydraulic systems requiring precise control and high efficiency. Its multi-control interface, compact design, and high-pressure capabilities make it an ideal choice for demanding industrial applications.
