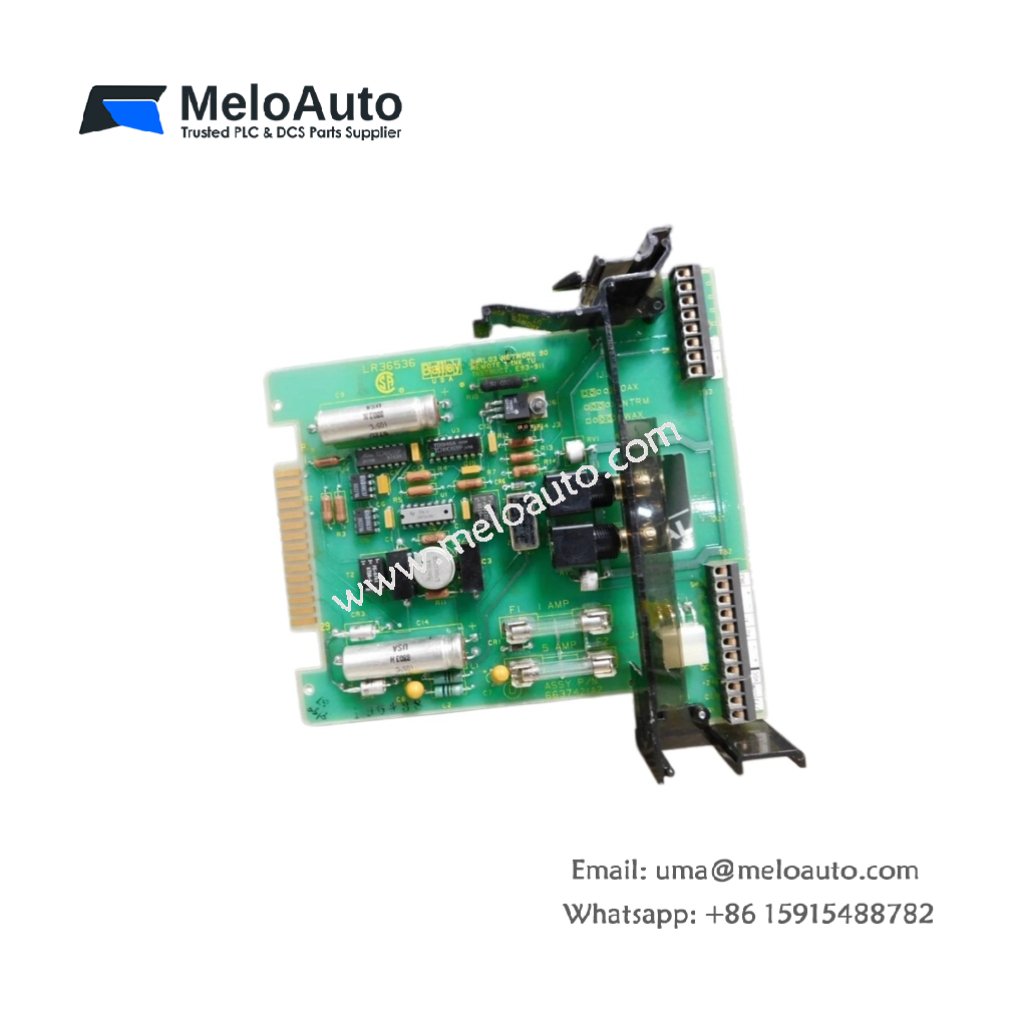

ABB Bailey NIRL03 Remote Link Module

Industrial control networks require reliable data transmission across distributed components. The ABB Bailey NIRL03 remote link module delivers this connectivity with precision engineering. This module establishes a fiber optic communication pathway between controllers and remote I/O stations. It eliminates electrical interference issues commonly found in copper-based networks.

Technical Architecture and Specifications

This unit features a compact housing designed for DIN rail mounting. Its dimensions measure 9.5 cm in width and 21.3 cm in depth. The ABB Bailey NIRL03 weighs approximately 0.7 kilograms for secure installation. It supports fiber optic cable connections using ST-style connectors. These interfaces provide two independent communication channels for redundancy.

The internal assembly contains three primary circuit boards. One board handles signal conversion, another manages protocol processing, and the third provides power regulation. Engineers will appreciate the absence of internal energy storage capacitors. This passive design eliminates common failure points associated with aging electrolytic components. Consequently, this architecture ensures consistent performance over extended operational periods.

Connectivity and System Integration

The module connects to the system backbone via a ribbon cable interface. This interface supports high-speed data exchange with the main controller. For remote I/O stations, the ABB Bailey NIRL03 uses fiber optic transceivers operating at 820 nm wavelength. These transceivers achieve transmission distances up to 2,000 meters. You can explore similar industrial communication solutions for reference.

Specification	Detail
Model	NIRL03
Manufacturer	ABB Bailey
Dimensions (W x D)	9.5 cm x 21.3 cm
Weight	0.7 kg
Connector Type	ST-Style Fiber Optic, Ribbon Cable
Communication Channels	2 (Redundant)
Transmission Distance	Up to 2,000 meters
Wavelength	820 nm
Energy Storage	None (Passive Design)
Circuit Boards	3 Integrated Boards

Reliability and Environmental Tolerance

The ABB Bailey NIRL03 operates reliably across demanding industrial environments. It functions within a temperature range of 0°C to 60°C. The housing provides protection against dust and moisture ingress. Status LEDs on the front panel indicate link integrity and data activity clearly. Maintenance personnel can diagnose network issues quickly without specialized tools.
