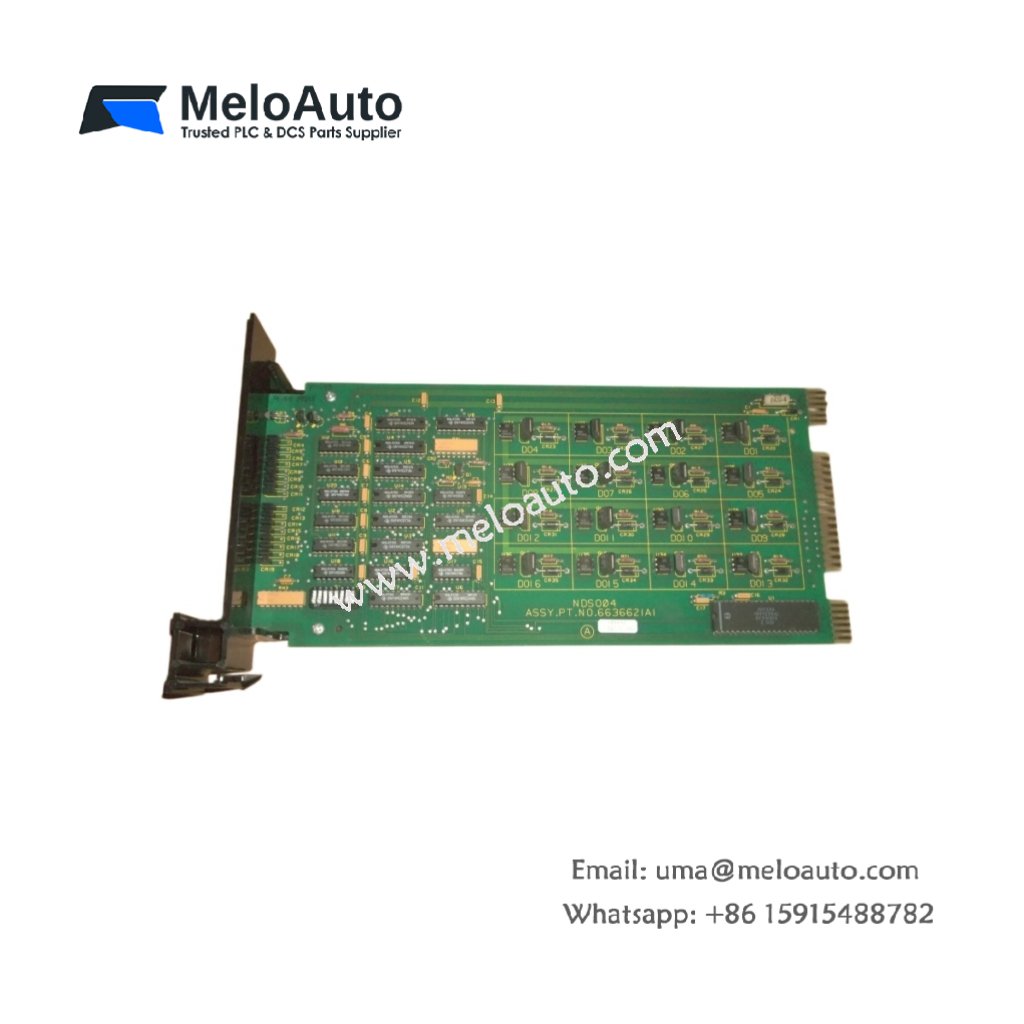

ABB Bailey NDSO04 Digital Slave Output Module

The NDSO04 functions as a digital slave output module for ABB Bailey INFI 90 distributed systems. This ABB unit provides reliable output control for remote I/O stations across the facility. We engineered this module to extend actuator control capabilities without increasing main rack density.

Technical Specifications and Design Features

This digital slave output module weighs approximately 0.52 kilograms. Its dimensions measure 280 millimeters in height, 30 millimeters in width, and 280 millimeters in depth. The unit features a rugged metal housing with integrated edge connectors for backplane installation.

Parameter	Specification
Manufacturer	ABB
Model	NDSO04
Category	Digital Slave Output Module
Product Line	Bailey INFI 90
Output Channels	8 channels
Output Type	Relay (Form C)
Contact Rating	2A at 24V DC, 1A at 120V AC
Response Time	10 ms maximum
Mechanical Life	10 million operations
Electrical Life	100,000 operations at rated load
Isolation	2.5 kV between contacts and bus
Power Consumption	2.8 W from backplane
Operating Temperature	0°C to 60°C
Dimensions (H x W x D)	280 mm x 30 mm x 280 mm
Weight	0.52 kg

Engineers will appreciate the relay output configuration of the NDSO04. This module provides eight Form C relay contacts for versatile load switching. Consequently, users can control AC and DC loads without additional interface components.

Furthermore, the robust relay contacts handle 2 amperes at 24V DC or 1 ampere at 120V AC. This capacity suits direct control of contactors, pilot lights, and small motors. The NDSO04 delivers 2.5 kilovolts of isolation between output contacts and the backplane bus.

Slave Architecture and System Integration

The NDSO04 operates as a slave module in distributed I/O configurations. This module receives output commands from a master controller through the Module Bus. Users can place the unit in remote racks up to 2,000 meters from the main processor.

The module communicates with the system through standard INFI 90 backplane connections. It consumes only 2.8 watts during normal operation. For reference, other Bailey INFI 90 slave modules share this same communication architecture.

Output Interface and Protection

The NDSO04 features removable screw terminal blocks for field wiring. These terminals accept wires from 0.2 to 1.5 mm² for straightforward installation. Each relay includes LED indicators for visual status confirmation.

The module provides contact protection against inductive load switching. This protection extends relay life in applications with solenoids and motors. Engineers can rely on this feature for long-term reliability in demanding environments.

Diagnostics and Operational Reliability

The NDSO04 includes diagnostic features for system monitoring. Status LEDs indicate power, communication, and output status for each channel. The module performs continuous self-checks to detect configuration errors. These diagnostics simplify troubleshooting and ensure reliable remote output control.
