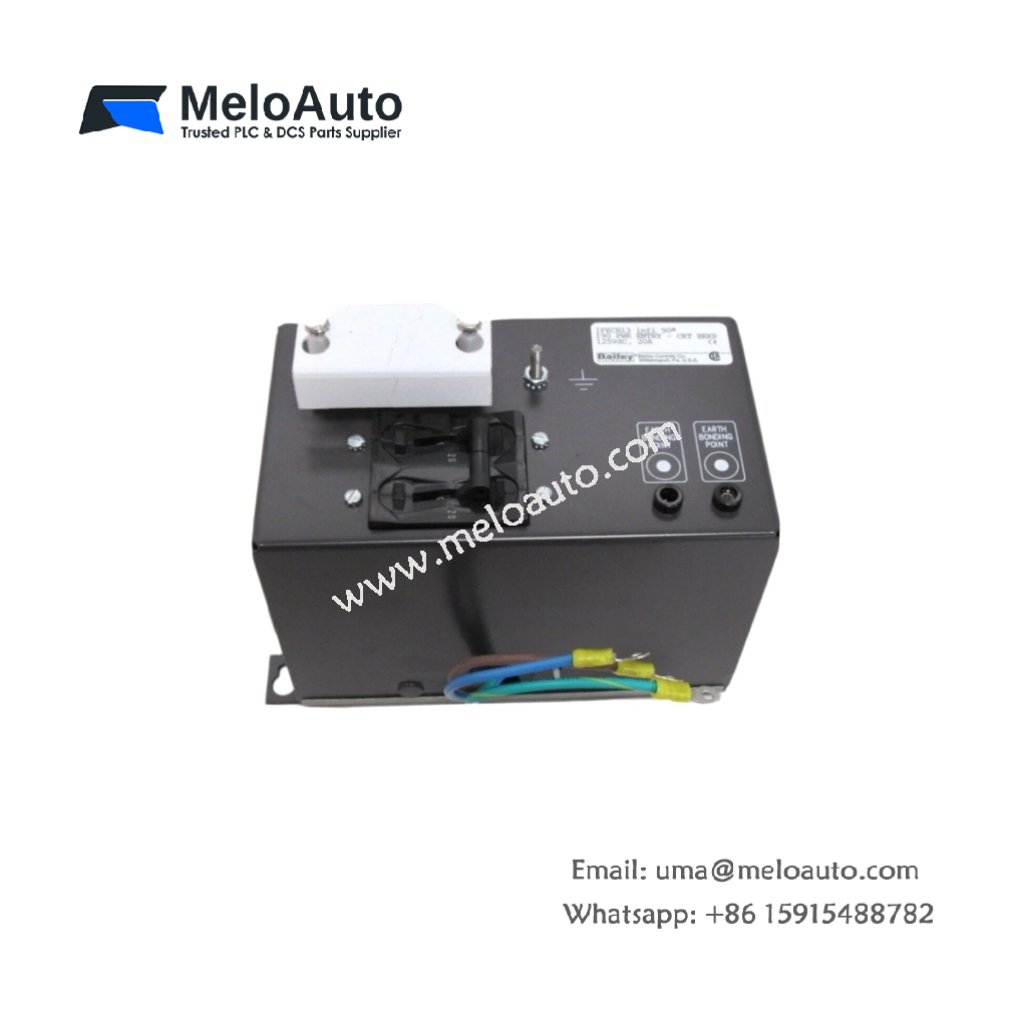

ABB Bailey IPECB13 Power Entry Circuit Breaker

Overview of the ABB Bailey IPECB13 Power Entry Circuit Breaker

The ABB Bailey IPECB13 is a high-performance power entry circuit breaker designed for reliable electrical protection in industrial automation systems. This circuit breaker is engineered for use with both AC and DC inputs, offering versatility in various applications. The IPECB13 supports a voltage range of 102 to 264 VAC and 102 to 144 VDC, making it suitable for different power systems. It provides a nominal 20 A max current rating, ensuring efficient power distribution and protection. With a 2 V drop at 20 A nominal, this module ensures minimal energy loss while providing reliable overcurrent protection.

Key Features of the ABB Bailey IPECB13 Power Entry Circuit Breaker

Dual Voltage Support: The IPECB13 accommodates both AC and DC power systems, providing versatile protection across a wide range of applications.
Nominal Current Rating: With a 20 A max current rating, this circuit breaker effectively handles high power loads while preventing damage due to overcurrent.
Low Voltage Drop: The IPECB13 operates with a 2 V drop at 20 A nominal, ensuring minimal power loss for optimal system efficiency.
Reliable Protection: Offers excellent protection for power entry, safeguarding systems against overcurrent and ensuring stable operation.
Compact Design: Designed for easy integration, this breaker features a compact form factor, allowing for efficient installation and use in industrial control panels.

Technical Specifications

Feature	Description
Model	ABB Bailey IPECB13
Product Type	Power Entry Circuit Breaker
Voltage Input (AC)	102 to 264 VAC
Voltage Input (DC)	102 to 144 VDC
Current Rating	20 A max
Voltage Drop	2 V at 20 A nominal
Mounting Type	Panel Mount
Operating Temperature	-20°C to 60°C
Weight	0.75 kg (1.65 lbs)
Dimensions (L x W x H)	100 x 70 x 45 mm
Energy Loss	2 V drop at 20 A nominal
Power Rating	Suitable for heavy-duty industrial systems

Benefits of the ABB Bailey IPECB13 Power Entry Circuit Breaker

Versatile Voltage Support: With the ability to handle both AC and DC inputs, this breaker suits various industrial setups and ensures broad application compatibility.
High-Current Capability: The IPECB13 provides a 20 A max current rating, capable of managing substantial power loads without compromising safety.
Low Power Loss: Featuring a 2 V drop at 20 A nominal, the breaker minimizes energy loss, enhancing overall system efficiency.
Compact and Efficient: Its compact form enables easy installation in tight spaces, perfect for modern industrial control systems.
Reliable Overcurrent Protection: The circuit breaker reliably protects power entry systems from damage caused by overcurrent, ensuring safe operations.

Applications of the ABB Bailey IPECB13 Power Entry Circuit Breaker

The ABB Bailey IPECB13 is ideal for various industrial automation and power distribution applications, such as:

Industrial Control Panels: Safeguarding sensitive equipment by providing effective overcurrent protection.
Automation Systems: Ensuring reliable power entry and protection for automated machinery and systems.
Power Supply Units: Protecting high-power devices and systems from overcurrent, maintaining system stability and safety.
Heavy-Duty Electrical Systems: Offering protection for industrial power networks operating under high load conditions.

About ABB

ABB is a global leader in industrial automation and power systems, providing cutting-edge solutions for industries worldwide. The ABB Bailey IPECB13 reflects the company’s dedication to high-quality, reliable products that enhance system performance and safety in various sectors.
