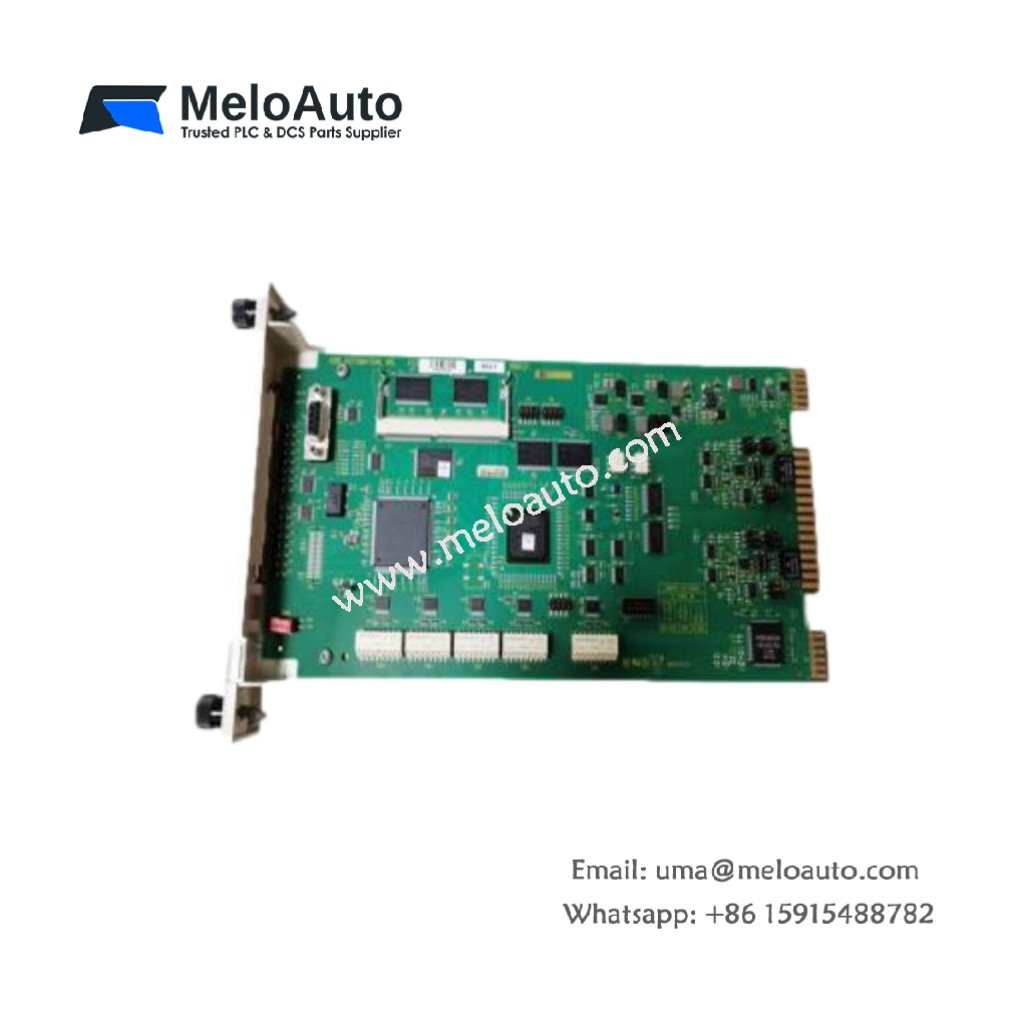

ABB Bailey INICI01-232L: Communication Interface Module for Serial Connectivity

The INICI01-232L from ABB Bailey serves as a dedicated communication interface module. It establishes serial connectivity between Bailey control systems and external devices. This module facilitates data exchange with programmable logic controllers, analyzers, and operator terminals. Industrial facilities depend on its reliable protocol handling for seamless integration.

Technical Specifications & Hardware Details

Serial Communication Capabilities

The INICI01-232L supports standard RS-232C communication protocols for industrial applications. It handles baud rates up to 19.2 kbps for reliable data transmission. This module provides hardware handshaking signals for flow control management. You can configure the interface for various data formats and parity settings. Furthermore, the onboard isolation protects the system backplane from external electrical noise.

Physical Construction and Connectivity

This communication card features a compact single-board design for efficient cabinet use. Its edge connector seats securely into the Bailey system backplane. The INICI01-232L includes a standard DB9 female connector for field cabling. You can install or replace this module without powering down adjacent cards. The board layout emphasizes signal integrity for consistent serial communication performance.

System Integration and Protocol Handling

The module interfaces directly with the Bailey controller through the backplane bus. It manages data buffering and protocol conversion for external device communication. The INICI01-232L supports point-to-point connectivity with printers, scales, and analyzers. For similar industrial applications, static trip units and protective relays use comparable serial interface principles. However, this communication module specifically addresses RS-232 connectivity requirements within the Bailey ecosystem. Operators rely on it for reliable data exchange with peripheral equipment.
